Toyota Corolla Rumion

2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

20 part groups · 2 illustrations

Illustrations

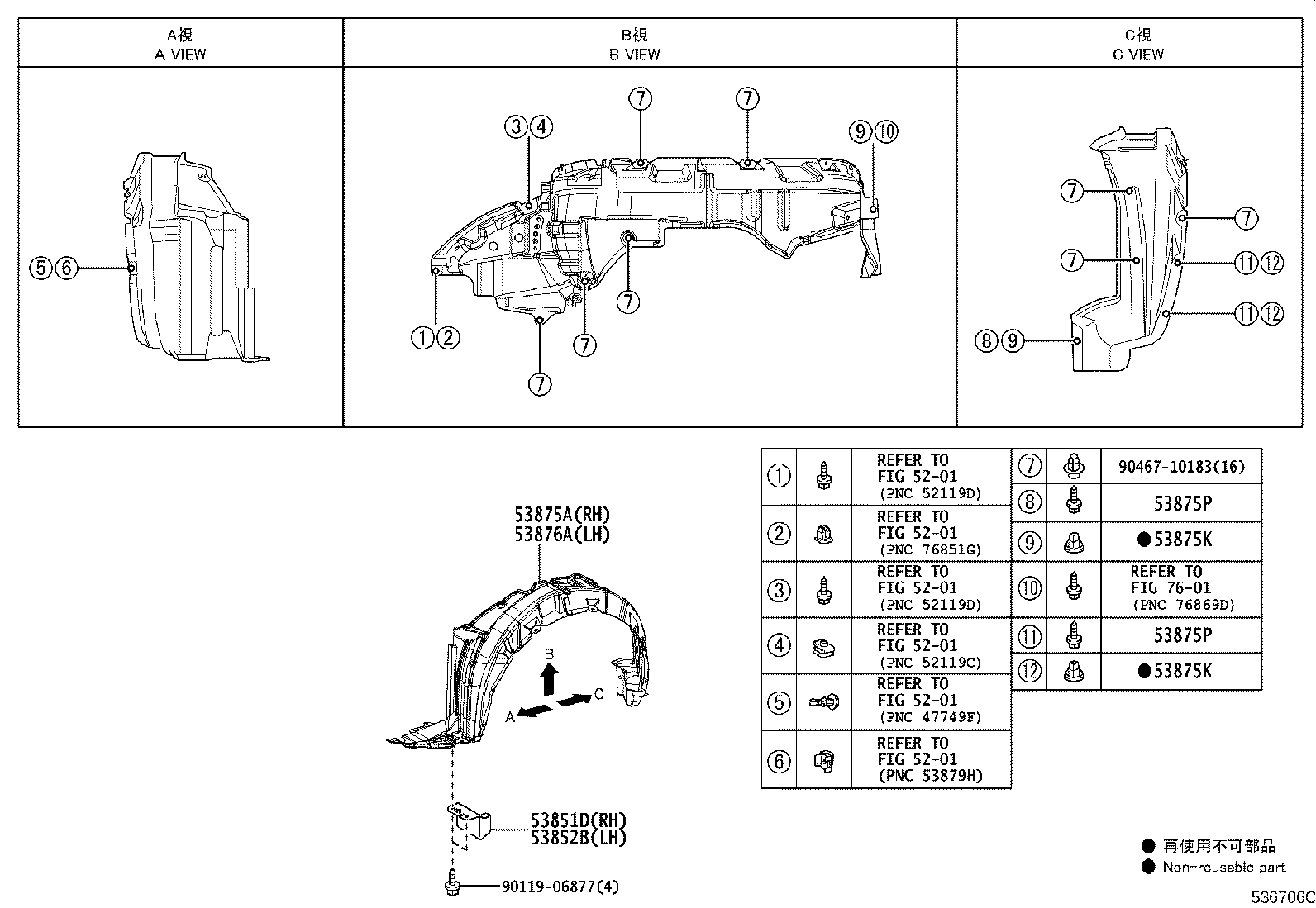

Figure 536705 536705 2007-10 → — Figure 536706C 536706C 2007-10 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53381 Seal, Hood TO Radiator Support
53393B Protector, Hood, Front
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875K Grommet, Screw
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53882P Seal, Front Fender, RH
53883K Seal, Front Fender, LH
55739G Stopper, Hood
55793E Cover, Cowl Reinforcement, Upper NO.2 RH
55794B Cover, Cowl Reinforcement, Upper NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
