Toyota Corolla Rumion

2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

10 part groups · 2 illustrations

Illustrations

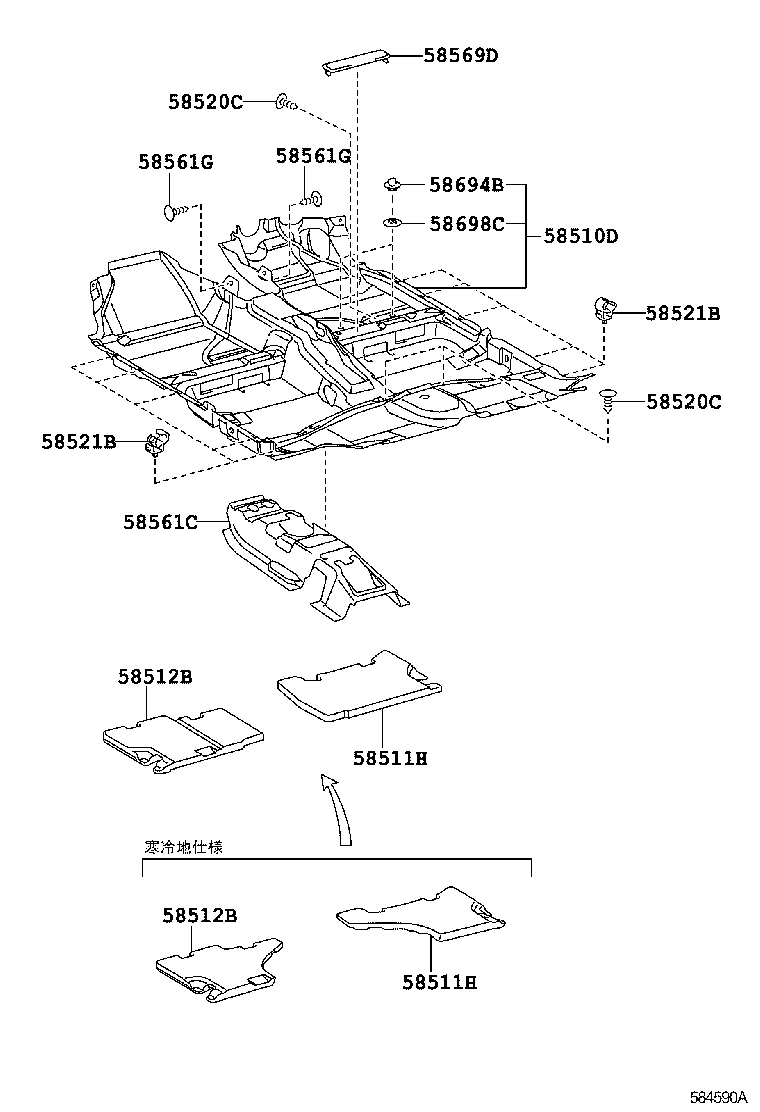

Figure 583196A 583196A 2007-10 → 2013-01 Figure 584590A 584590A 2013-01 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58511H Mat, Floor, Front RH
58512B Mat, Floor, Front LH
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58561C Silencer, Front Floor, NO.1
58561G Clip(FOR FRONT FLOOR SILENCER)
58569D Cover, Front Floor Caution Plate
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
