Toyota Corolla Rumion

2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 3 illustrations

Illustrations

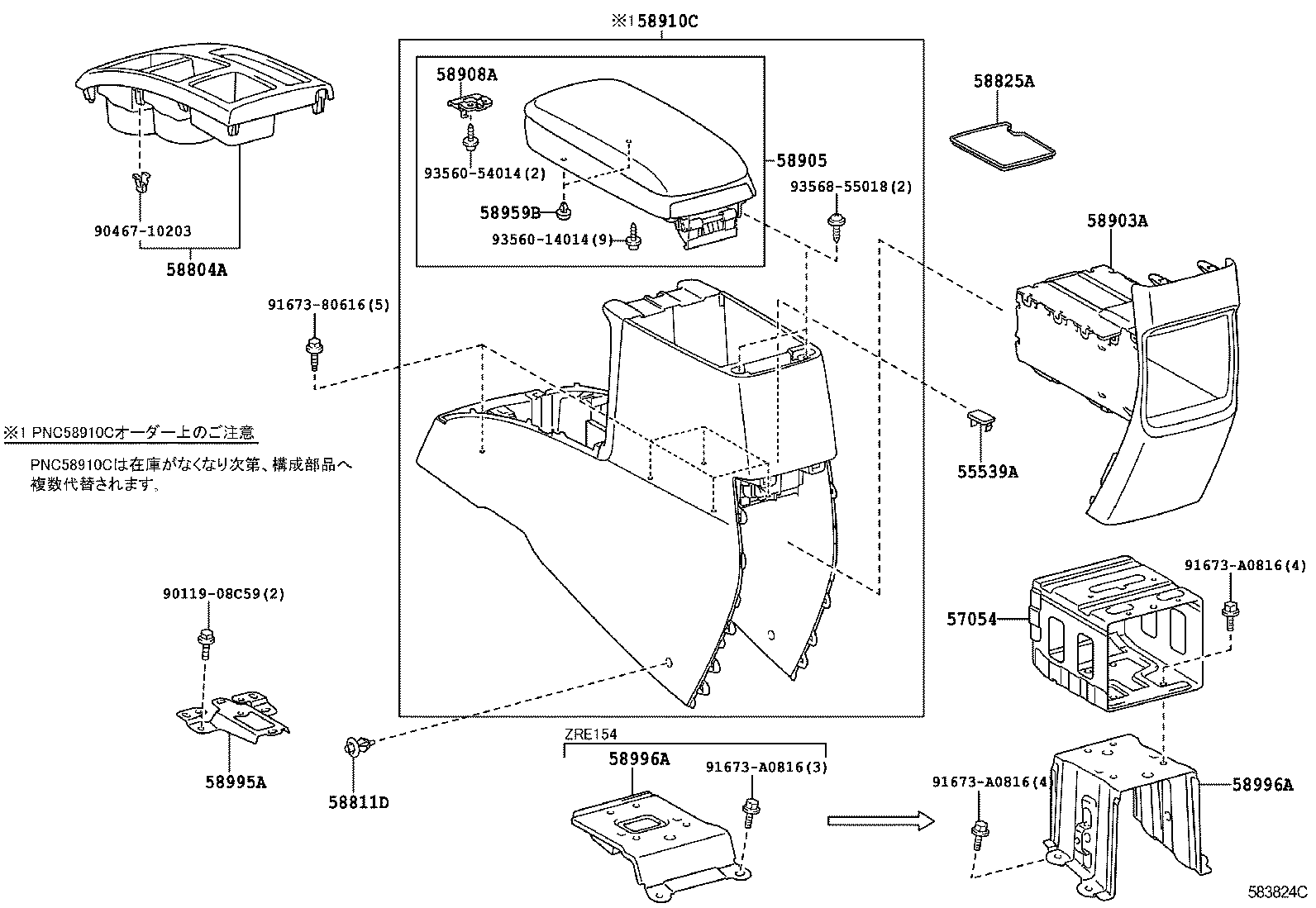

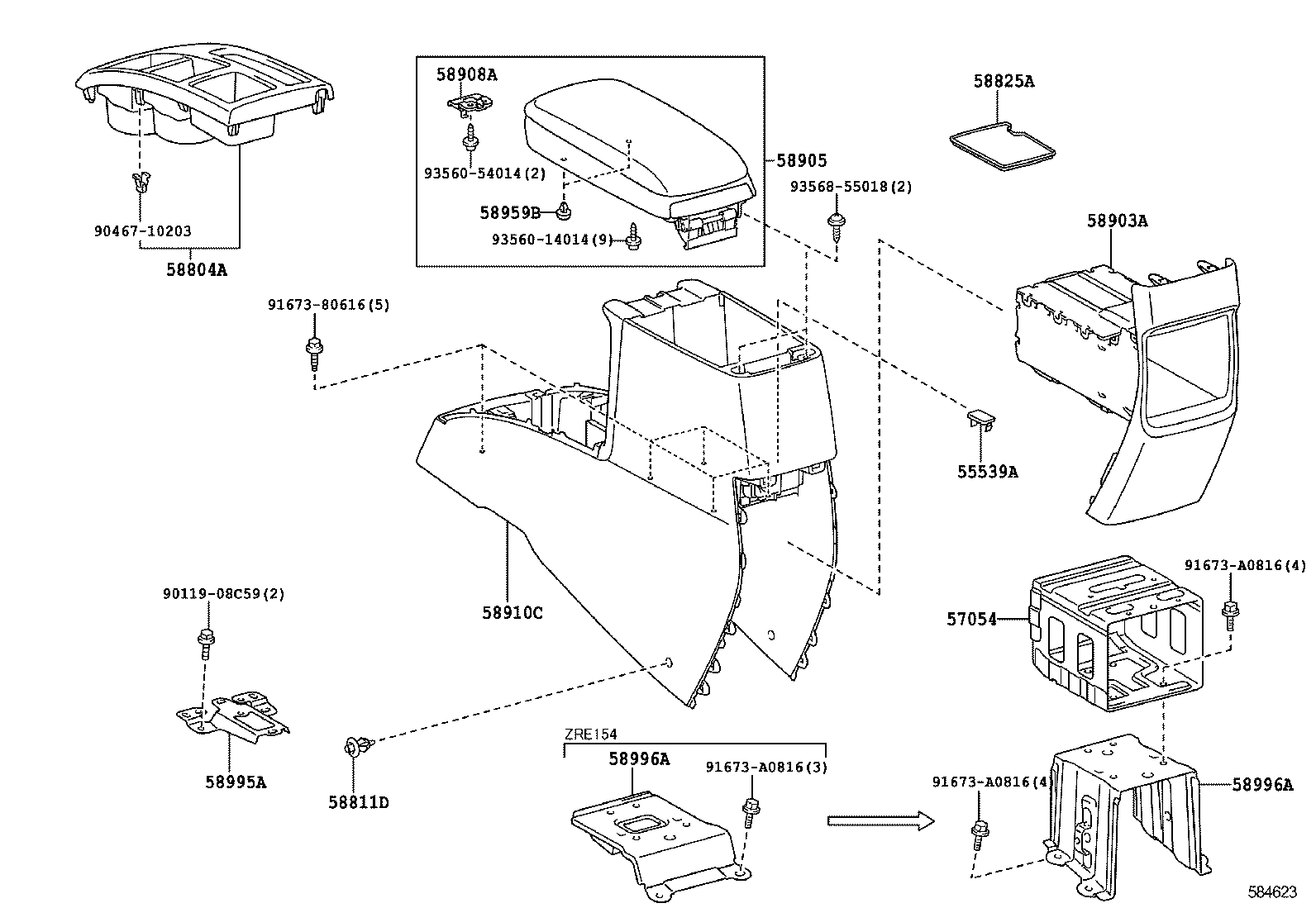

Figure 583201A 583201A 2007-10 → — Figure 583824C 583824C 2009-12 → 2011-07 Figure 584623 584623 2011-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
57054 Reinforce Sub-assy, Front Side Member, NO.5
58804A Panel Sub-assy, Console, Upper
58811D Clip(FOR CONSOLE BOX)
58815A Carpet, Console Box
58825A Pocket, Console Box
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58959B Cushion, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
