Toyota Corolla Rumion
2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan
Supported model
Data version 2016-06

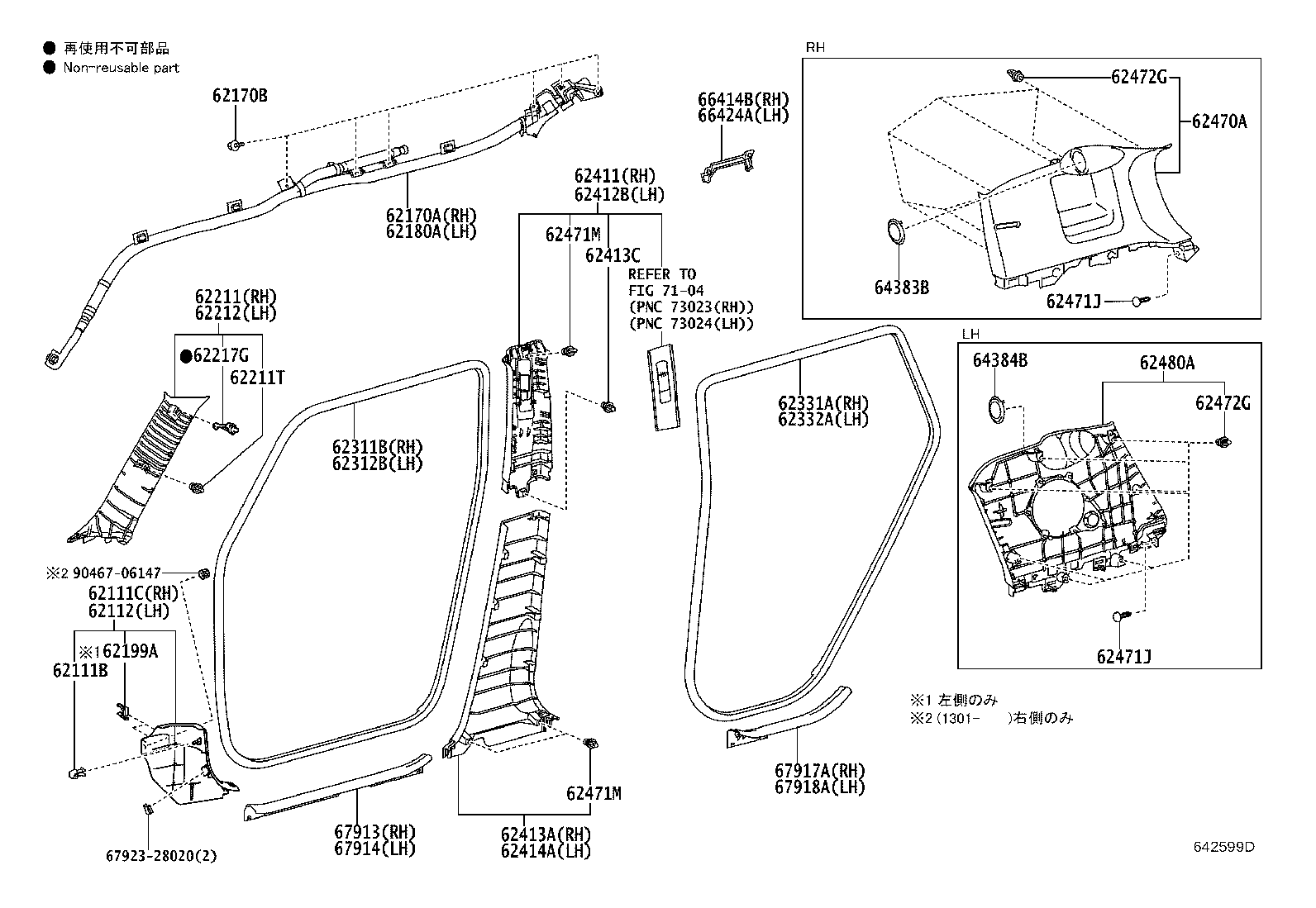

Inside Trim Board & Door Opening Trim Moulding
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62199A | Holder, Fusee |
| 62211 | Garnish, Front Pillar, RH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62470A | Garnish Assy, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62471M | Clip |
| 62472G | Clip (FOR ROOF SIDE GARNISH) |
| 62480A | Garnish Assy, Roof Side, Inner LH |
| 64383B | Grille, Rear Speaker, RH |
| 64384B | Grille, Rear Speaker, LH |
| 66414B | Spacer, Side Rail, Rear RH |
| 66415A | Spacer, Side Rail, Rear NO.2 RH |
| 66424A | Spacer, Side Rail, Rear LH |
| 66425A | Spacer, Side Rail, Rear NO.2 LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
