Toyota Corolla Rumion

2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan

Supported model Data version 2016-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

88 part groups · 7 illustrations

Illustrations

715367K 2007-10 → 2009-12

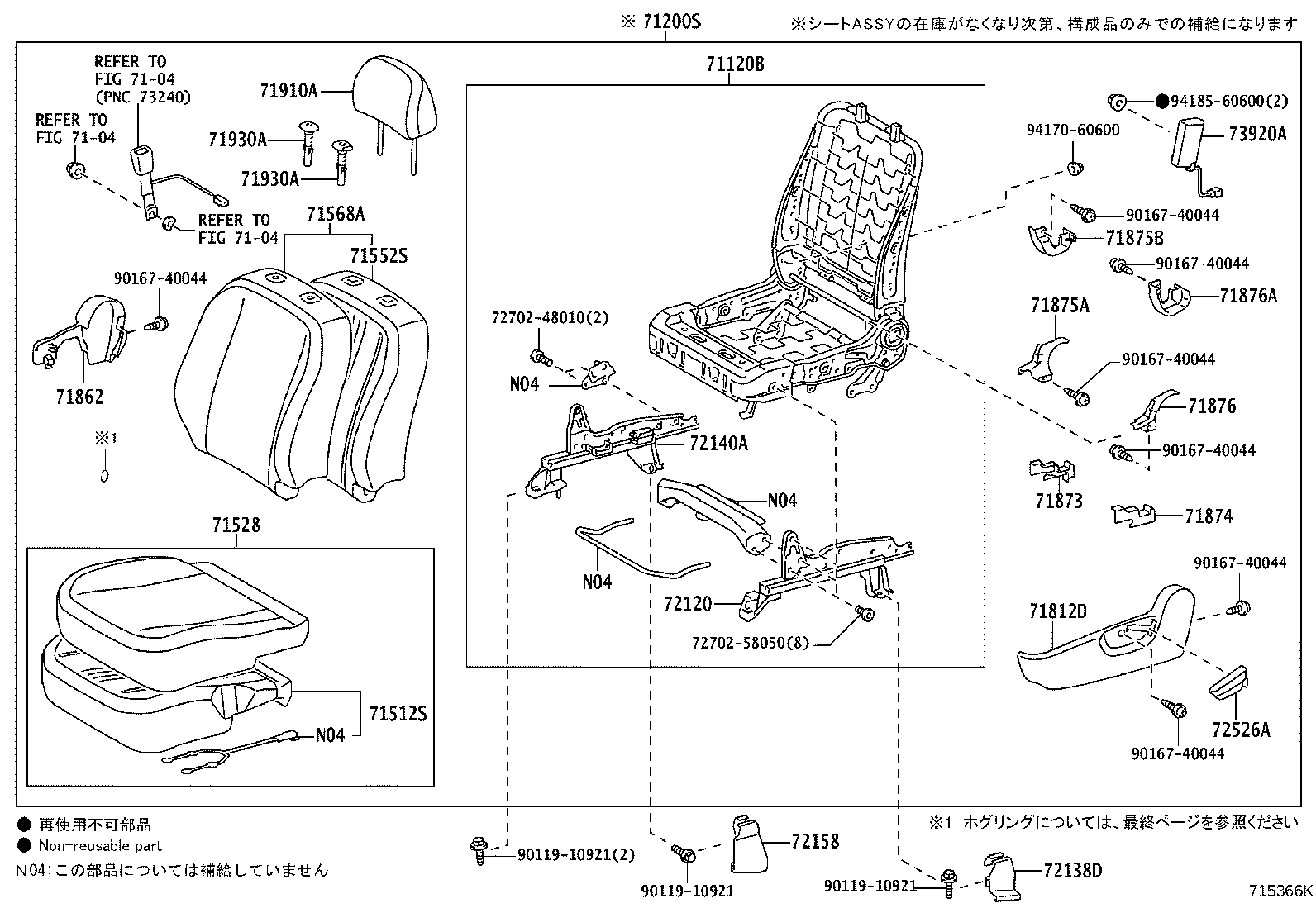

715366K 2007-10 → 2009-12

Part groups

PNC	Description
58561H	Carpet, Front Floor Side, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S	Seat Assy, Front RH
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71138	Spacer, Front Seat Set
71200S	Seat Assy, Front LH
71378	Bracket, Front Seat, LH
71430C	Clip
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71517A	Pad, Front Seat Cushion Cover
71518B	Pad, Front Seat Cushion W/Cover, RH
71528	Pad, Front Seat Cushion W/Cover, LH
71537A	Protector, Front Seat Cushion
71537C	Protector, Front Seat Cushion Edge, RH
71537D	Protector, Front Seat Cushion Edge, LH
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71558B	Pad, Front Seatback W/Cover, RH
71568A	Pad, Front Seatback W/Cover, LH
71811D	Shield, Front Seat Cushion, RH
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71812D	Shield, Front Seat Cushion, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875H	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876C	Cover, Reclining Adjuster Inside, LH
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71877E	Cover, Seat Armrest Hole, LH
71910A	Headrest Assy, Front Seat
71930A	Support Assy, Front Seat Headrest
71931	Support, Front Seat Headrest
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72130A	Track Assy, Front Seat, Inner RH
72137G	Cover, Seat Track, Outer RH
72138D	Cover, Seat Track, Outer, LH
72140A	Track Assy, Front Seat,Inner LH
72157	Cover, Seat Track Bracket, Inner
72158	Cover, Seat Track Bracket, Inner LH
72462	Cover, Vertical Adjuster RH
72494	Handle, Vertical Adjusting, RH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72877C	Cover, Seat Armrest
72880	Armrest Assy, Seat, C RH
72880A	Armrest Assy, Front Seat, Inner RH
72890	Armrest Assy, Seat, C LH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
82666M	Holder, Connector
C3381	Cover, Slide Step, NO.1
C3382	Cover, Slide Step, NO.2
C7027	Lock Sub-assy, Welcab Seat Turn
C7101	Bracket Sub-assy, Seat Holder, Front
C7104	Plate Sub-assy, Seat Turn
C7108	Cover Assy, Turn Table
C7110	Bracket Sub-assy, Seat Holder, Rear
C7120	Leg, Welcab Seat, NO.1
C7130	Panel Assy, Turn Table
C7139	Bracket, Hook
C7149	Protector, Turn Table Panel Edge, LH
C7159	Cushion, Welcab Seat Leg Stopper
C7160	Panel Assy, Slide Table
C7169	Gear, Slide Table Rack
C7191	Bracket, Seat Holder Link
C7196	Cover, Turn Table, NO.1
C7204	Handle Sub-assy, Welcab Seat Track
C7210	Footrest Assy, Welcab Seat
C7227	Carpet, Welcab Seat Footrest Step
C7260	Handle Assy, Seat Turn Lock
C7269	Cable, Seat Turn Lock Release
C7269A	Cable, Seat Turn Lock Release, NO.1
C7271	Bracket, Interlock, Upper
C7275	Plate, Lock Striker, NO.1
C7881	Grip, Control Link
C8298	Bracket, Welcab Seat Harness Clamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
