Toyota Corolla Rumion
2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan
Supported model
Data version 2016-06

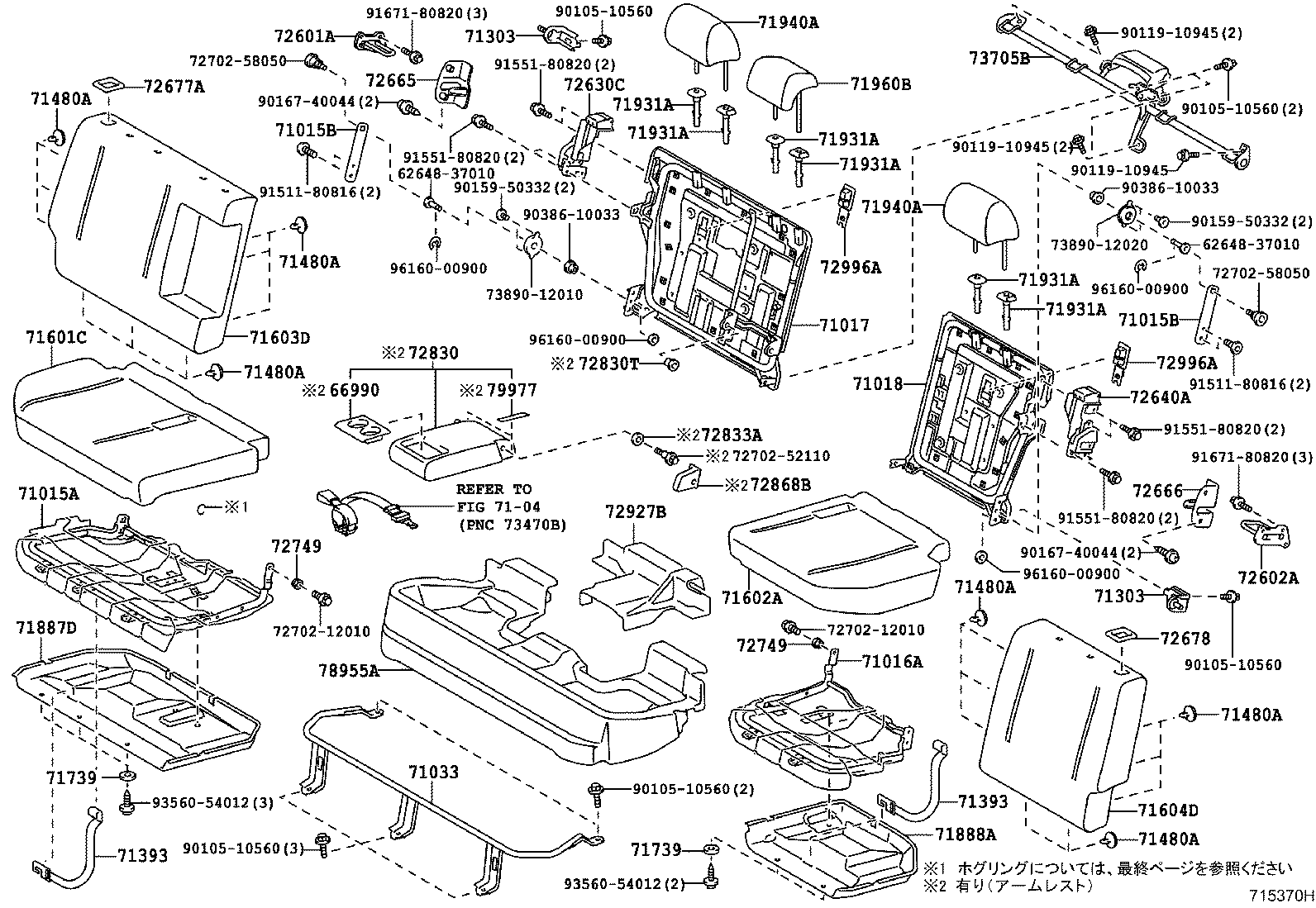

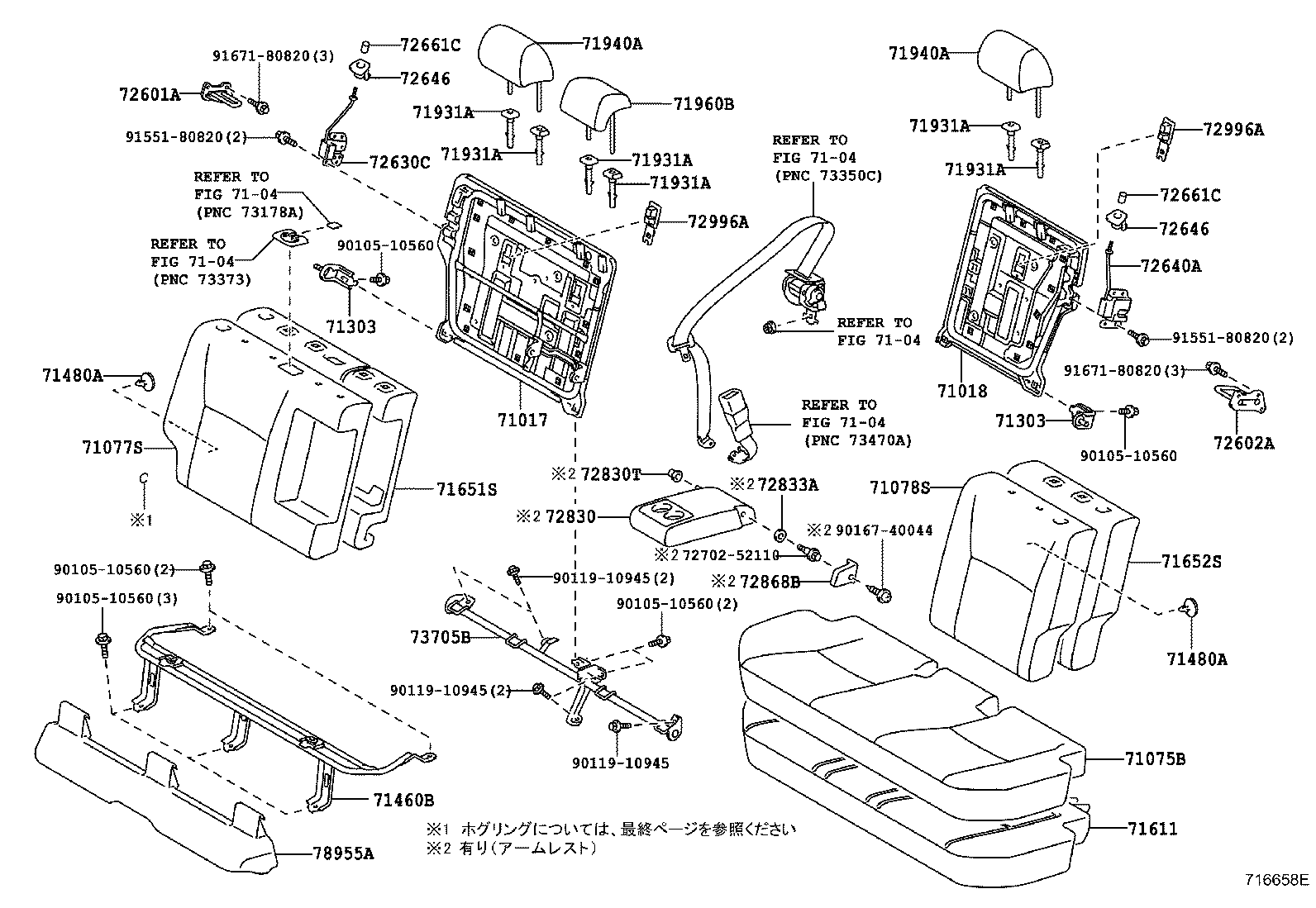

Rear Seat & Seat Track
50 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 66990 | Holder Assy, Cup |
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71015B | Frame Sub-assy, Rear Seat Cushion |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303 | Hinge Sub-assy, Rear Seatback |
| 71393 | Band, Rear Seat Cushion |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71601A | Pad Sub-assy, Rear Seat Cushion W/Cover |
| 71601C | Pad Sub-assy, Rear Seat Cushion W/Cover, RH |
| 71602A | Pad Sub-assy, Rear Seat Cushion W/Cover, LH |
| 71603D | Pad Sub-assy, Rear Seatback W/Cover, RH |
| 71604D | Pad Sub-assy, Rear Seatback W/Cover, LH |
| 71611 | Pad, Rear Seat Cushion |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71739 | Cushion, Seat Support |
| 71887D | Mat, Rear Seat Cushion, RH |
| 71888A | Mat, Rear Seat Cushion, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72602A | Striker Sub-assy, Rear Seatback Lock, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72646 | Grommet, Rear Seatback Stop Button |
| 72661C | Button, Rear Seatback Lock Release |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72666 | Cover, Rear Seatback Lock, LH |
| 72677A | Base, Rear Seatback Lock Control Lever, RH |
| 72678 | Base, Rear Seatback Lock Control Lever, LH |
| 72749 | Spacer, Rear Seat Reclining |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830T | Bush (FOR REAR SEAT CENTER ARMREST) |
| 72833A | Plate, Seat Center Armrest, Inner |
| 72868B | Cover, Center Armrest Hinge |
| 72927B | Cover, Rear Seat Cushion Under |
| 72996A | Cover, Rear Seatback |
| 72999A | Cover, Rear Seat Cushion Side, RH |
| 72999B | Cover, Rear Seat Cushion Side, LH |
| 73705B | Bracket Sub-assy, Cross Anchor |
| 78955A | Cover, Rear Seat Under Tray |
| 79977 | Felt, Seatback |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
