Toyota Corolla Rumion

2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

6 part groups · 3 illustrations

Illustrations

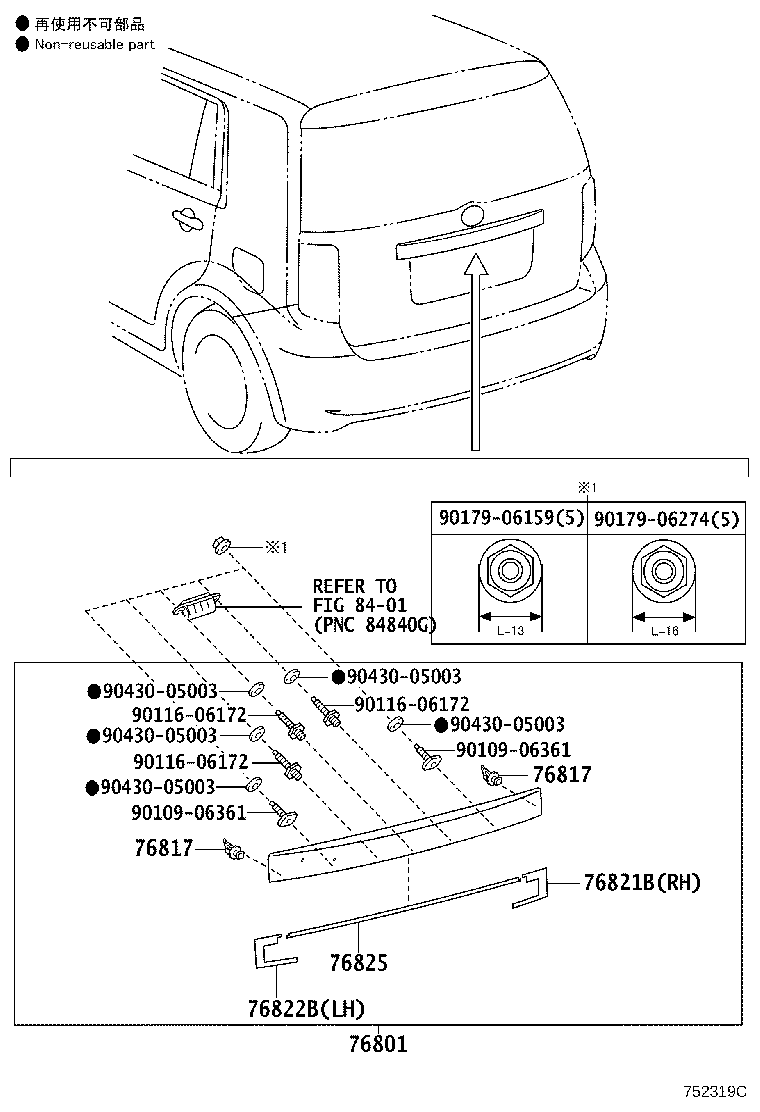

Figure 751985E 751985E 2007-10 → 2009-12 Figure 752319C 752319C 2009-12 → — Figure 751986 751986 2007-10 → —

Part groups

PNCDescription
75018 Frame Sub-assy, Rear License Plate
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76821B Protector, Back Door Garnish Side, RH
76822B Protector, Back Door Garnish Side, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
