Toyota Corolla Rumion

2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

36 part groups · 3 illustrations

Illustrations

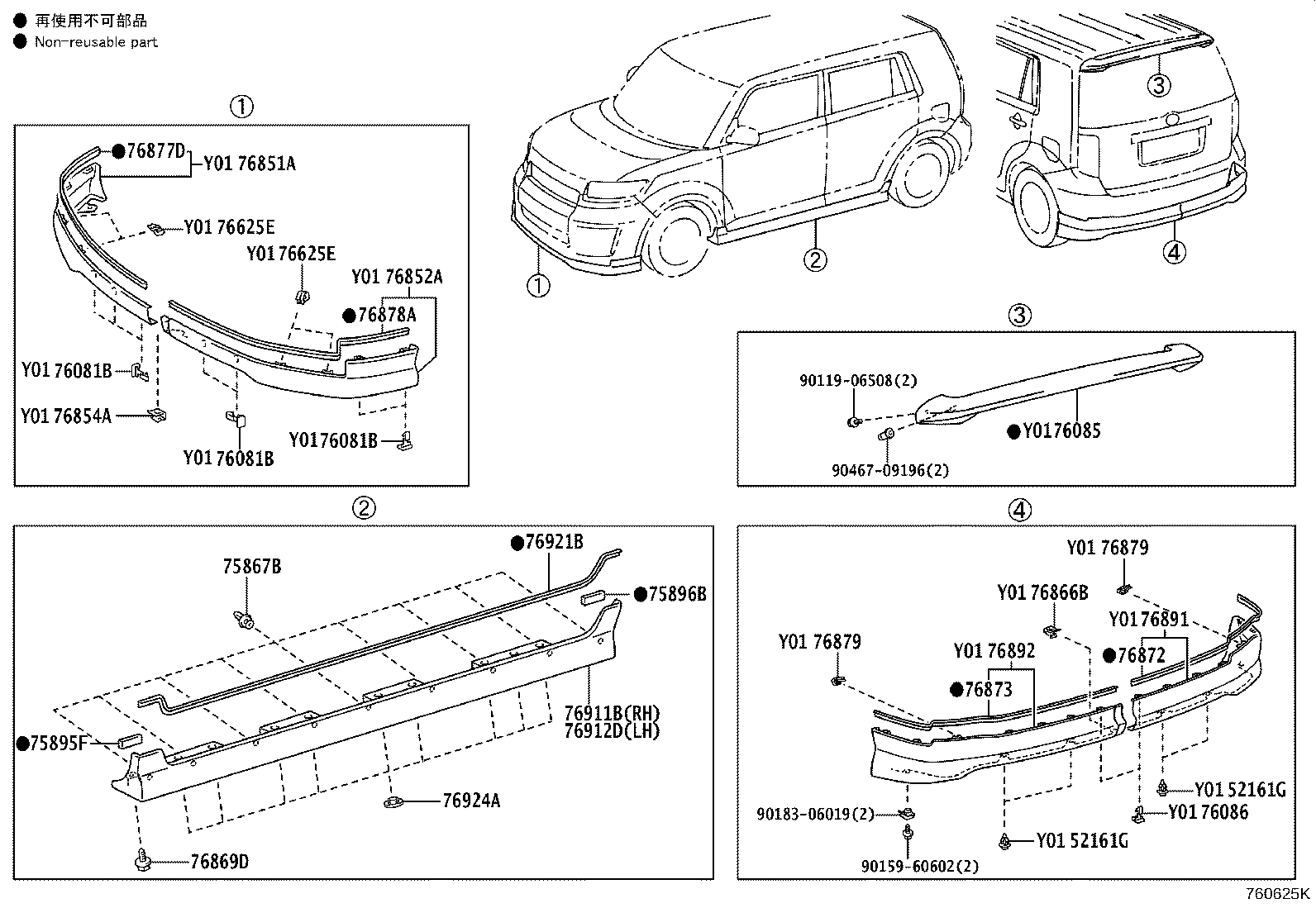

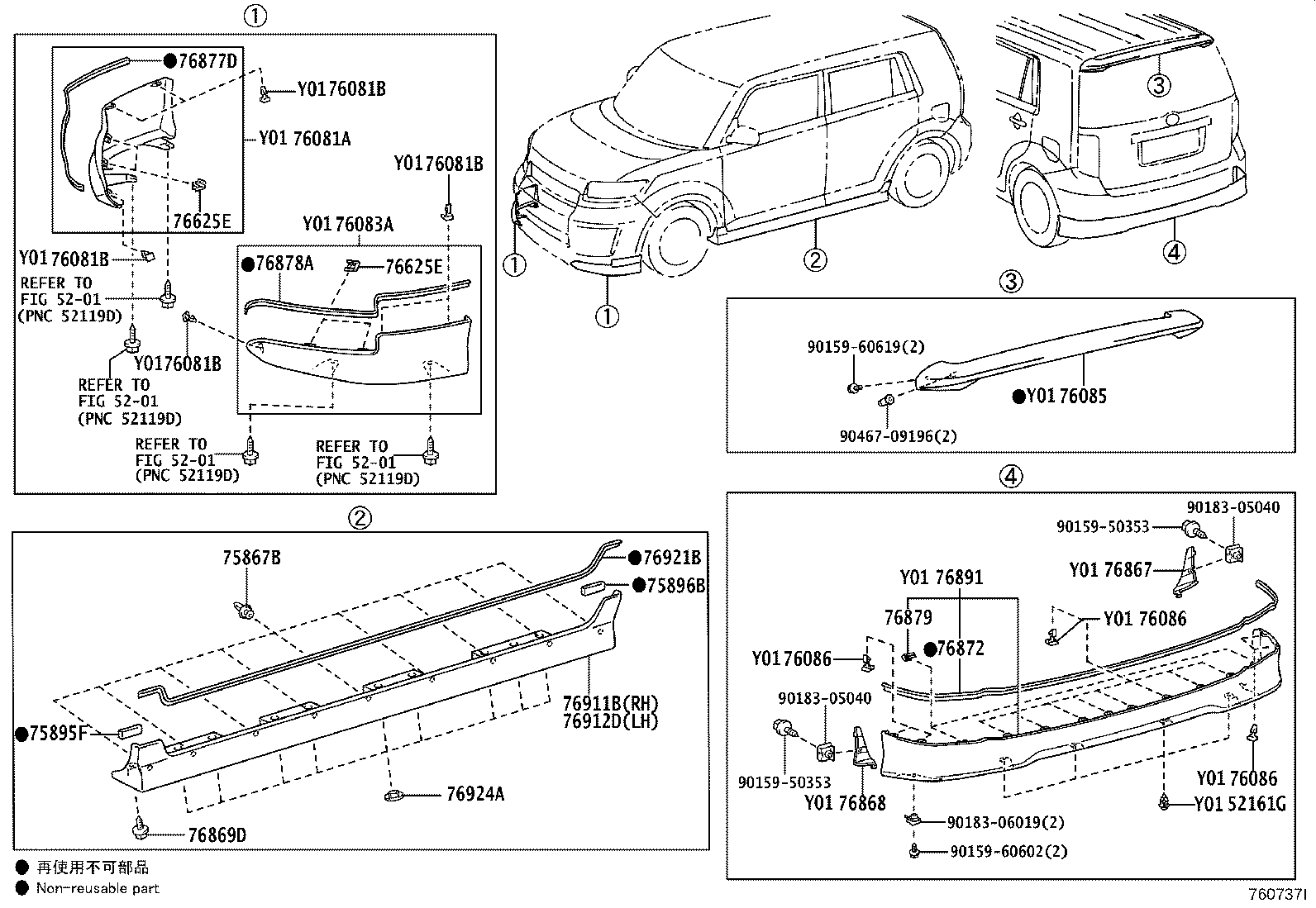

Figure 760624H 760624H 2007-10 → — Figure 760625K 760625K 2007-10 → 2009-12 Figure 760737I 760737I 2009-12 → —

Part groups

PNCDescription
52161G Piece, Rear Bumper
75851E Moulding, Body Rocker Panel, RH
75852B Moulding, Body Rocker Panel, LH
75867B Clip, Rocker Panel Moulding
75895F Tape, Moulding, NO.1
75896B Tape, Moulding, NO.2
76081A Spoiler Sub-assy, Front RH
76081B Retainer, Front Spoiler
76083A Spoiler Sub-assy, Front LH
76085 Spoiler Sub-assy, Rear
76086 Retainer Sub-assy, Rear Spoiler
76621C Mudguad, Front Fender, RH
76622C Mudguard, Front Fender, LH
76625D Mudguard, Quarter Panel, Rear RH
76625E Clip
76626D Mudguard, Quarter Panel, Rear LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76854A Retainer, Front Spoiler, NO.2
76866B Retainer, Rear Spoiler, NO.2
76867 Retainer, Rear Spoiler Side, RH
76868 Retainer, Rear Spoiler Side, LH
76869D Screw, NO.2
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76879 Clip, Rear Spoiler, NO.1
76891 Spoiler, Rear NO.1
76892 Spoiler, Rear NO.2
76911B Mudguard, Side, RH
76912D Mudguard, Side, LH
76915F Mudguard, Side, FR RH
76916F Mudguard, Side, FR LH
76921B Protector, Side Mudguard, NO.1
76924A Retainer, Side Mudguard, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
