Toyota Corolla Rumion

2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

8 part groups · 4 illustrations

Illustrations

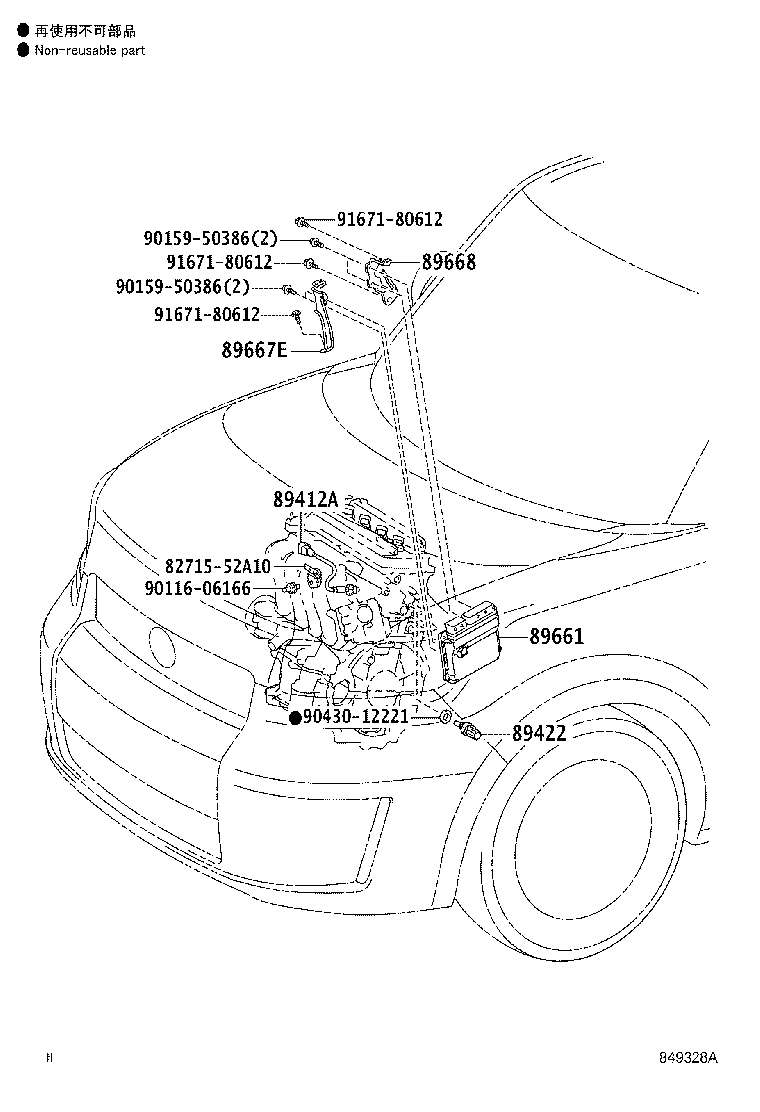

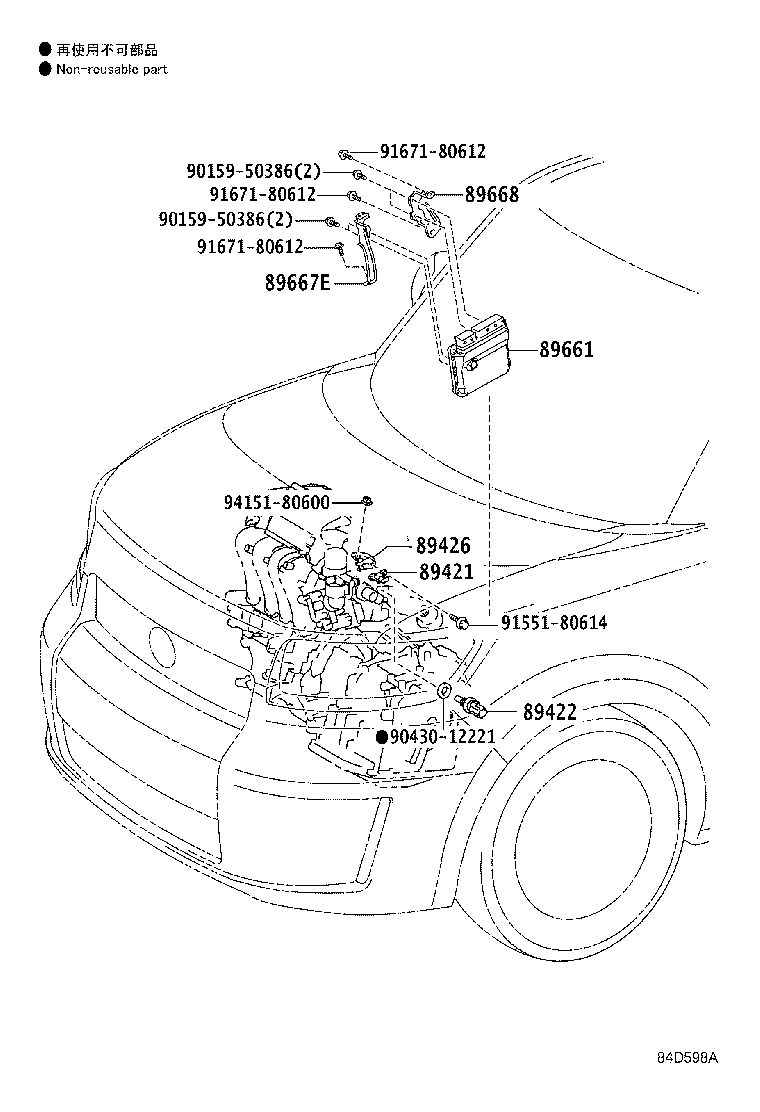

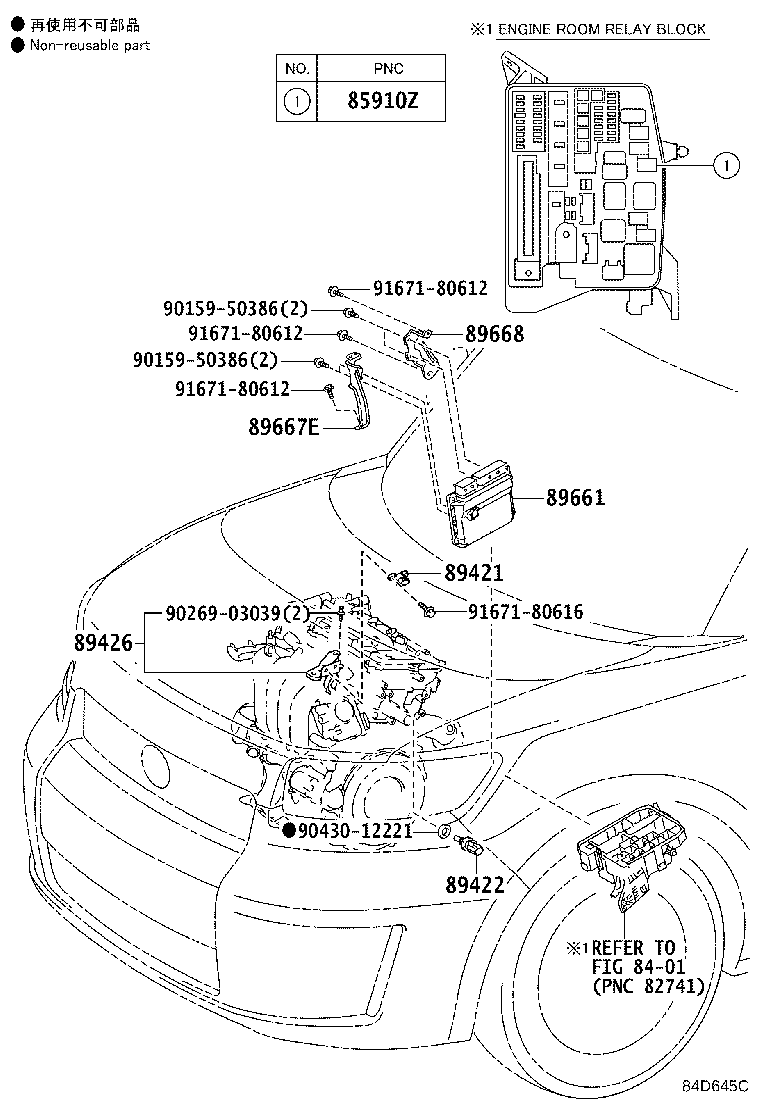

Figure 849329E 849329E 2007-10 → 2013-01 Figure 849328A 849328A 2007-10 → 2013-01 Figure 84D645C 84D645C 2013-01 → — Figure 84D598A 84D598A 2013-01 → —

Part groups

PNCDescription
85910Z Relay, Injection (FOR EFI)
89412A Sensor, E.G.R Gas Temperature
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89426 Bracket, Vacuum Sensor
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
