Toyota Corolla Rumion
2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan
Supported model
Data version 2016-06

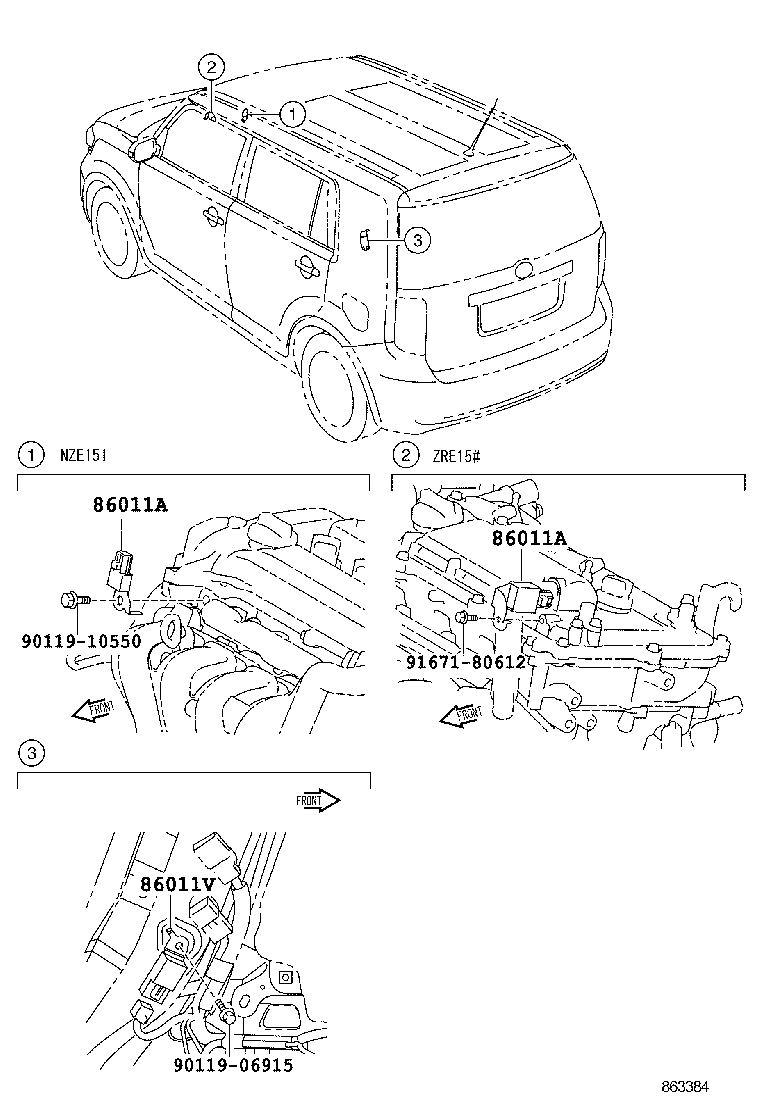

Radio Receiver & Amplifier & Condenser
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011V | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
