Toyota Corolla Rumion
2007-10 → 2015-12 · chassis NZE151,ZRE15# · catalogue 154160 · Japan
Supported model
Data version 2016-06
Heating & Air Conditioning - Control & Air Duct
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

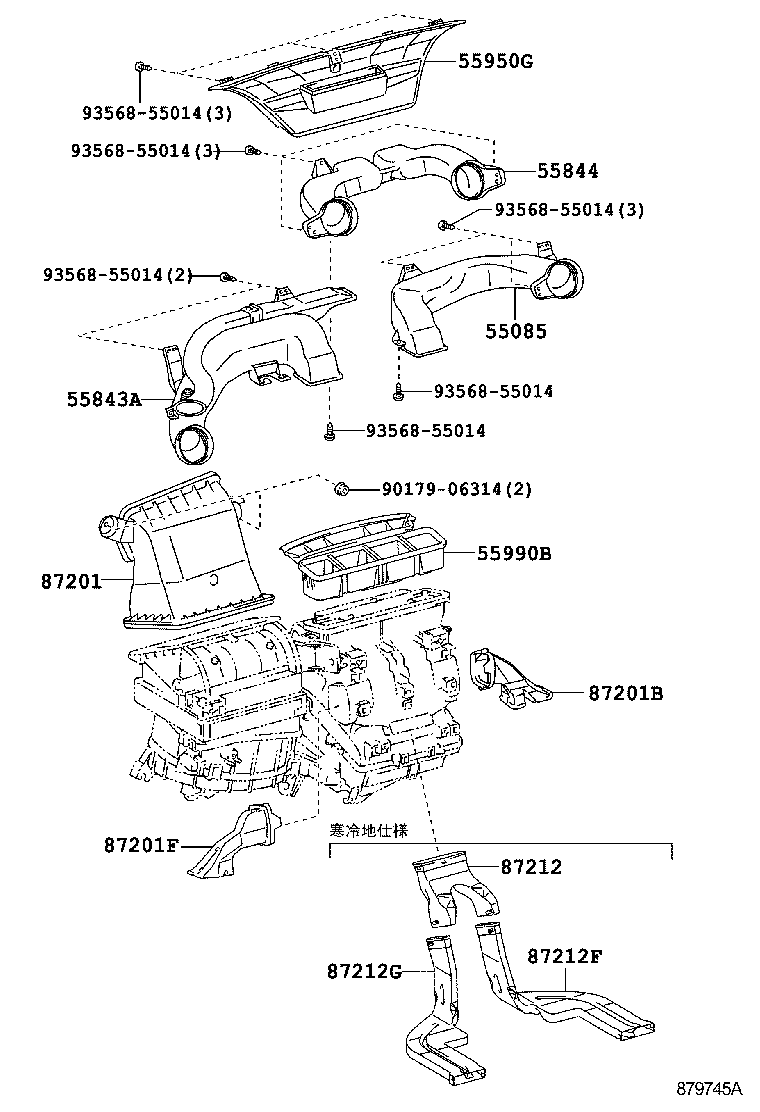

| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |

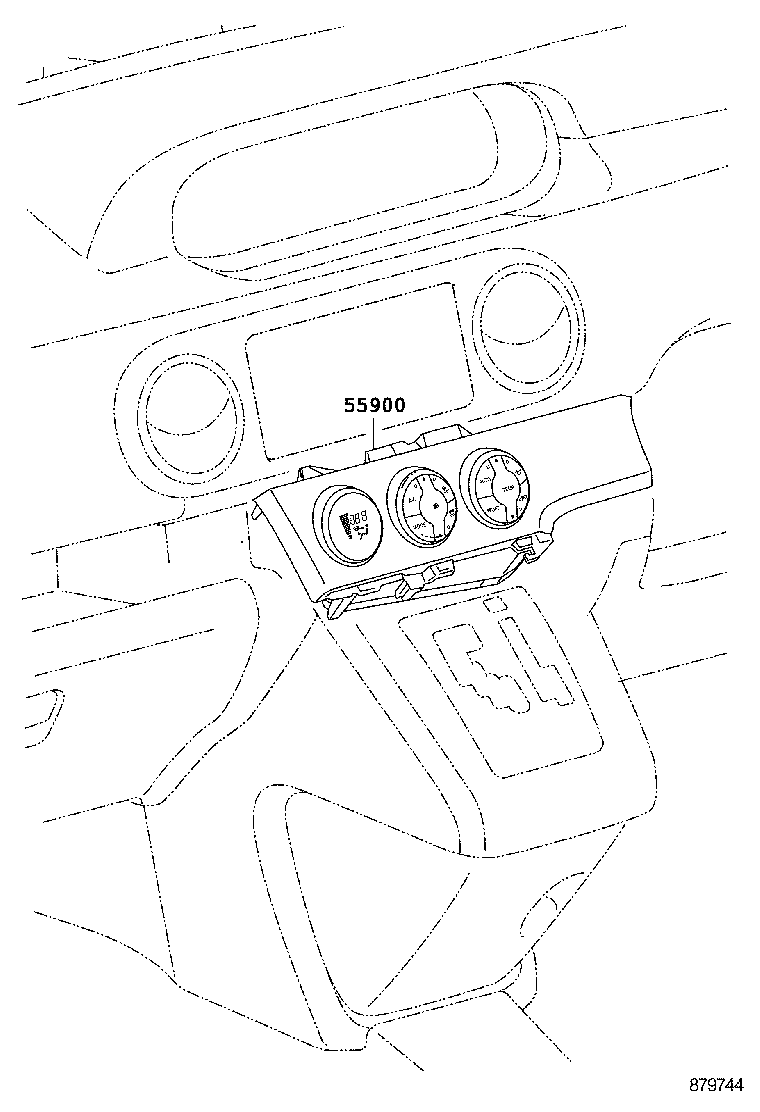

| 55900 | Control Assy, Air Conditioner |
| 55901 | Base Sub-assy, Heater Control |
| 55902B | Control Sub-assy, Heater |
| 55903A | Control Sub-assy, Heater, NO.3 |
| 55906D | Cable Sub-assy, Heater Control, NO.2 |
| 55909C | Cable Sub-assy, Airmix Damper Control |
| 55910B | Bulb, Heater Control |
| 55950G | Nozzle Assy, Defroster |
| 55990B | Nozzle Assy, Defroster, Lower |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87201F | Duct Sub-assy, Air, NO.3 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |

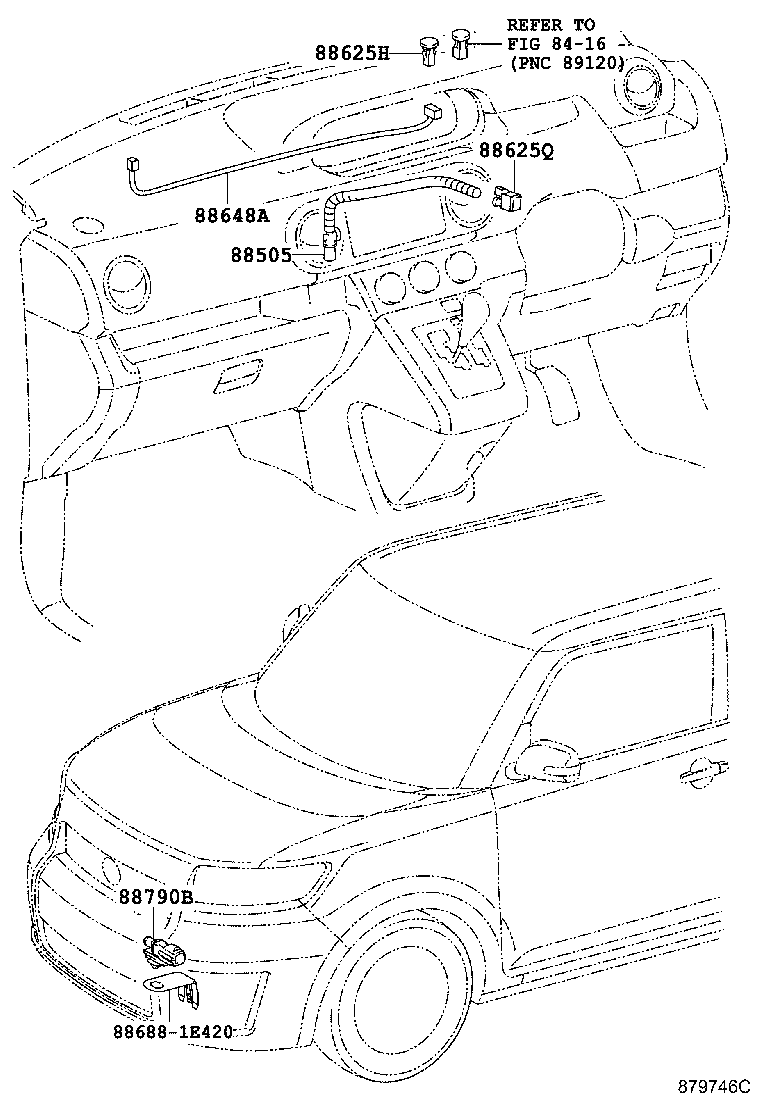

| 88505 | Duct Sub-assy,Air Conditioner |
| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88648A | Wiring, Cooler |
| 88790B | Thermistor Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
