Toyota Sprinter Carib

1990-09 → 1995-08 · chassis AE95 · catalogue 157110 · Japan

Discontinued model Data version 1996-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

7 part groups · 2 illustrations

Illustrations

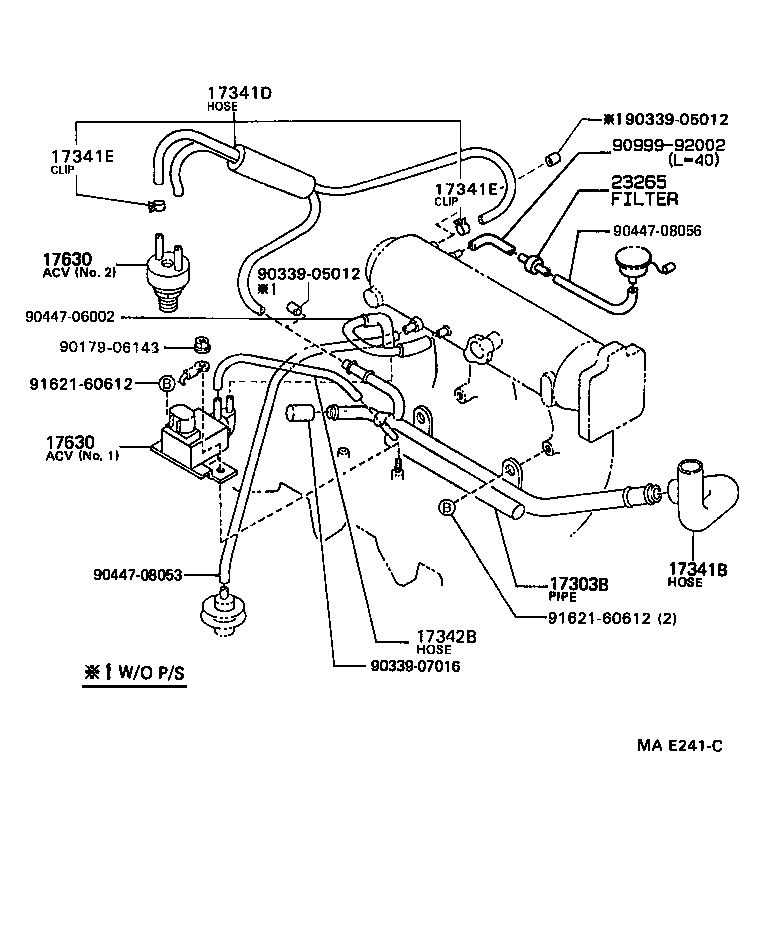

Figure MA9503A MA9503A 1990-09 → — Figure MAE241C MAE241C 1990-09 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17630 Valve Assy, Air Control
23265 Filter, Gas, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
