Toyota Sprinter Carib

1990-09 → 1995-08 · chassis AE95 · catalogue 157110 · Japan

Discontinued model Data version 1996-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

21 part groups · 3 illustrations

Illustrations

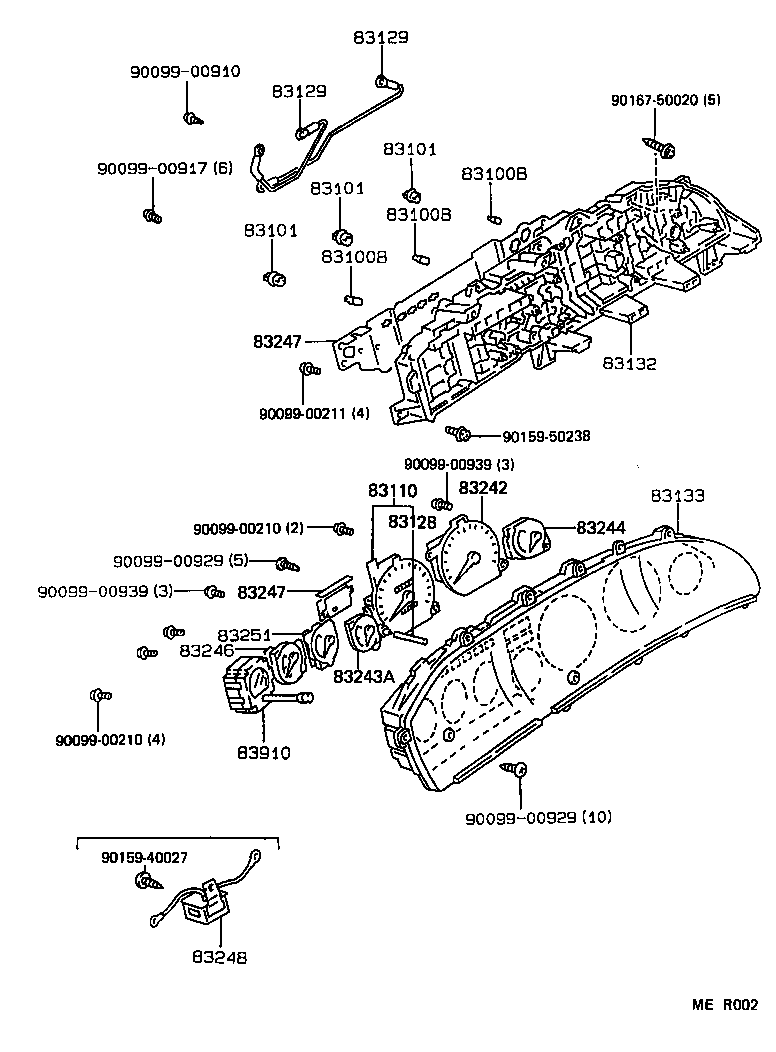

Figure MER004A MER004A 1990-09 → — Figure MER002 MER002 1990-09 → — Figure MER003 MER003 1990-09 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83128 Knob, Trip Counter
83129 Wire, Meter
83132 Case, Combination Meter
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83246 Gauge, Oil Pressure Receiver
83247 Plate, Meter Circuit
83248 Chime, Speed Warning
83251 Meter, Voltage
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83770 Adapter Assy, Speedometer Cable
83798 Key, Speedometer Cable Adapter
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
