Toyota Sprinter Carib
1990-09 → 1995-08 · chassis AE95 · catalogue 157110 · Japan
Discontinued model
Data version 1996-02

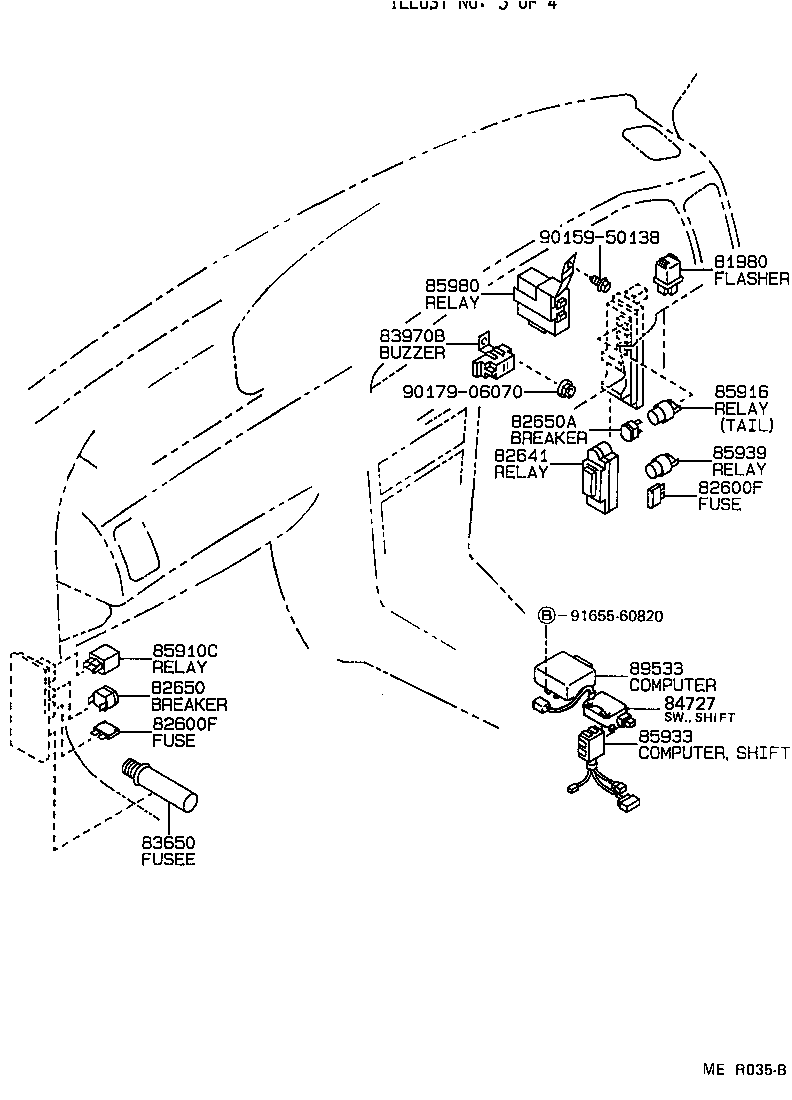

Switch & Relay & Computer
79 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82650A | Breaker Assy, Wiring Circuit, NO.2 |
| 82661 | Cover, Relay Block, NO.1 |
| 82671A | Block, Junction |
| 82672A | Cover, Junction Block |
| 82817H | Protector, Wiring Harness |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83420 | Gage Assy, Water Temperature Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 83970B | Buzzer Assy, Reverse Warning |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84162 | Switch, Front Fog Lamp |
| 84210 | Switch Assy, Back-up Lamp |
| 84220C | Switch Assy, Transmission Position Indicator |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84670 | Switch Assy, Rear Wiper & Defogger |
| 84725 | Switch, Center Differential Lock |
| 84725B | Blub, Differential Lock Switch |
| 84727 | Switch, Shift Lock Control |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84730D | Cap, Heater Blower Switch Bulb |
| 84790 | Switch Assy, Rear Window Defogger |
| 84810 | Switch Assy, Power Window Regulator |
| 84811B | Knob, Differential Lock Switch |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84931B | Switch, Door Control |
| 85335 | Switch Assy, Washer Level Warning |
| 85420E | Solenoid Assy, Transmission |
| 85420F | Ring, O(FOR TRANSMISSION SOLENOID) |
| 85440A | Solenoid Assy, Four Wheel Drive Control |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85915 | Relay, Main |
| 85916 | Relay, Light Control |
| 85925 | Relay, Radiator Fan |
| 85933 | Computer, Shift Lock Control |
| 85939 | Relay, Power Window |
| 85940B | Relay Assy, Rear Wiper |
| 85980 | Relay Assy, Door Control |
| 86530 | Relay Assy, Horn |
| 87989 | Relay, Mirror Control |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 89276 | Switch, Height Control |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89533 | Computer, 4 Wheel Drive Control |
| 89615 | Sensor, Knock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
