Toyota Sprinter Carib
1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan
Discontinued model
Data version 2003-01

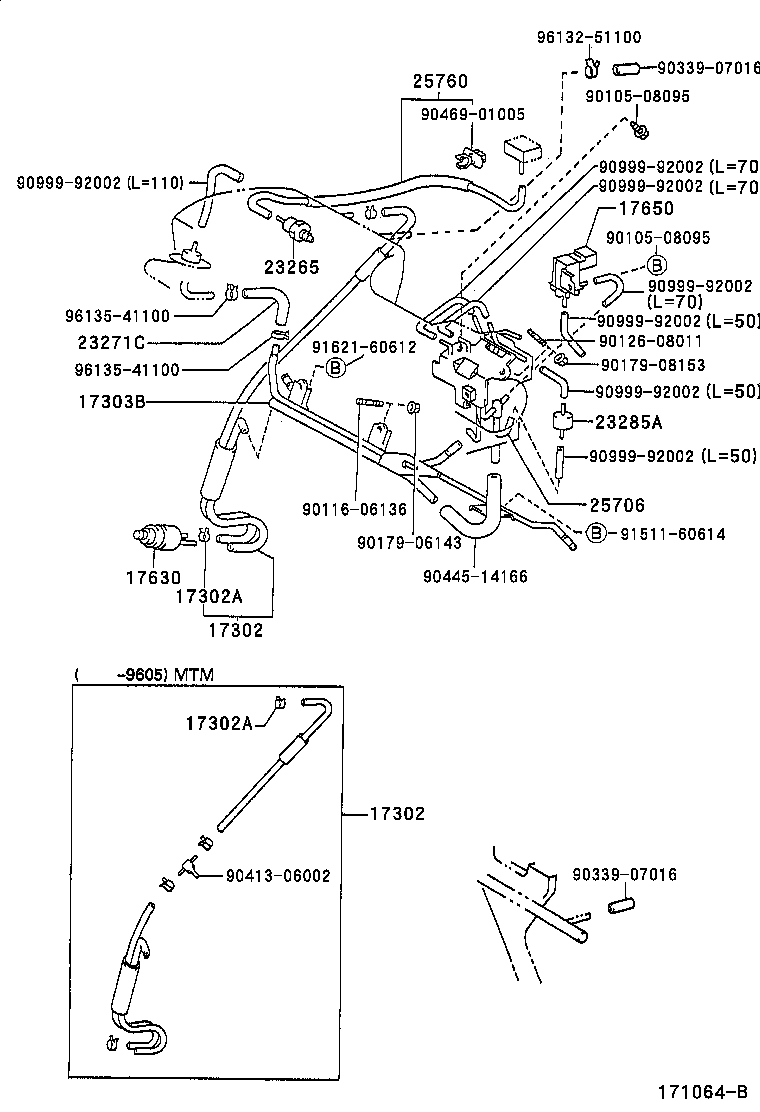

Vacuum Piping
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17302A | Clip, Hose |
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 17308 | Hose Sub-assy, Vacuum(FOR IDLE-UP) |
| 17346B | Hose, Air, NO.6 |
| 17346E | Clip(FOR AIR HOSE NO.6) |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23271C | Hose, Fuel |
| 23281 | Valve, Vacuum Transmitting, NO.1 |
| 23285A | Valve, Check, NO.1 |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
