Toyota Sprinter Carib

1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

11 part groups · 3 illustrations

Illustrations

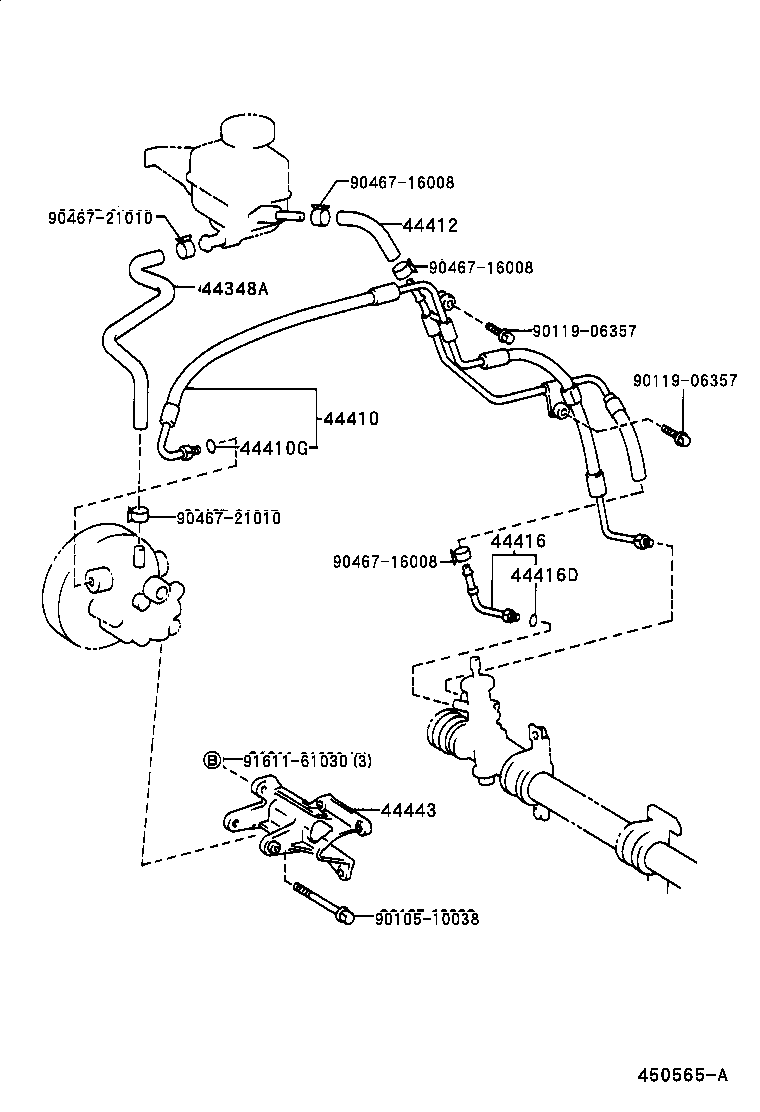

Figure 452083A 452083A 1995-08 → 1996-05 Figure 452083A 452083A 1996-05 → — Figure 450565A 450565A 1996-05 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410G Ring, O(FOR PRESSURE FEED TUBE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416D Ring, O(FOR RETURN TUBE)
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
