Toyota Sprinter Carib

1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

10 part groups · 2 illustrations

Illustrations

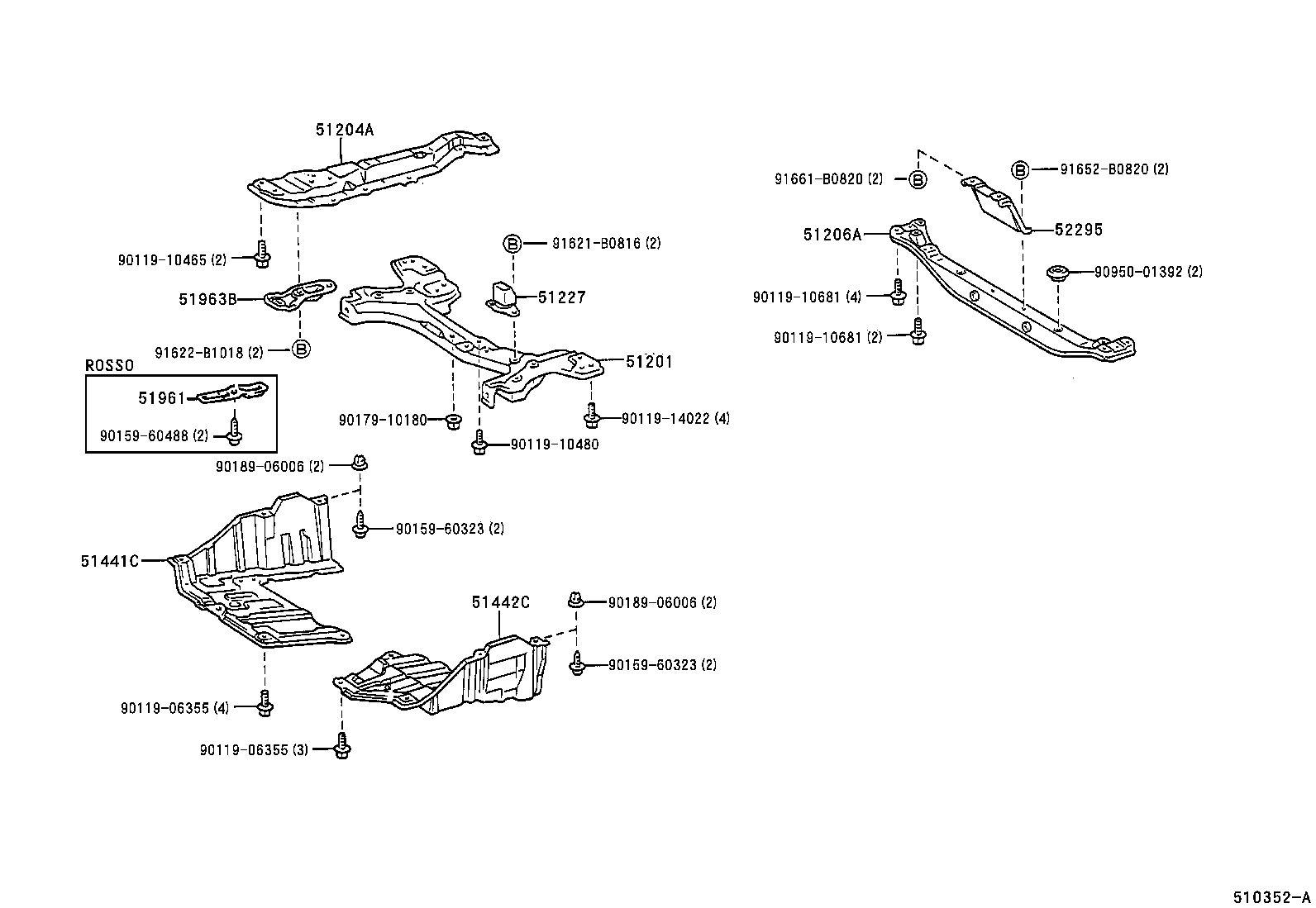

Figure 510395 510395 1995-08 → — Figure 510352A 510352A 1996-05 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51227 Weight, Front Suspension Member Damper
51284 Cover, Rear Suspension Member Hole
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51961 Hook, NO.1
51963B Hook, Transport, Front RH
52295 Brace, Rear Suspension Member, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
