Toyota Sprinter Carib
1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan
Discontinued model
Data version 2003-01

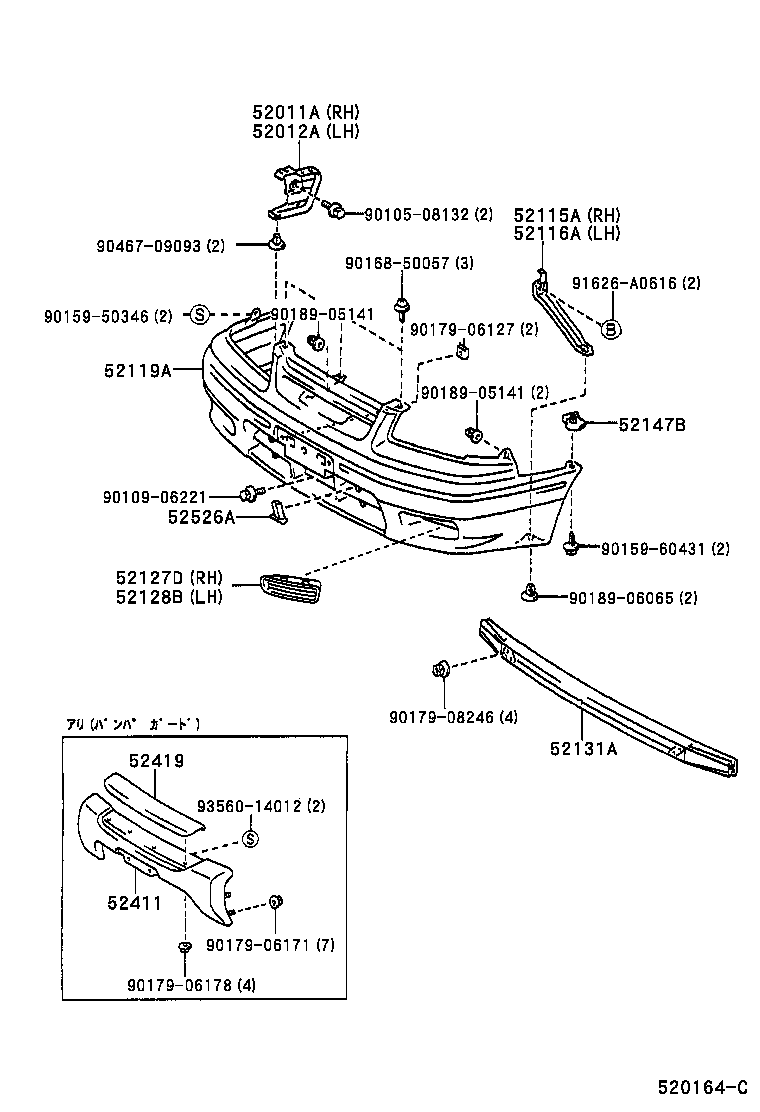

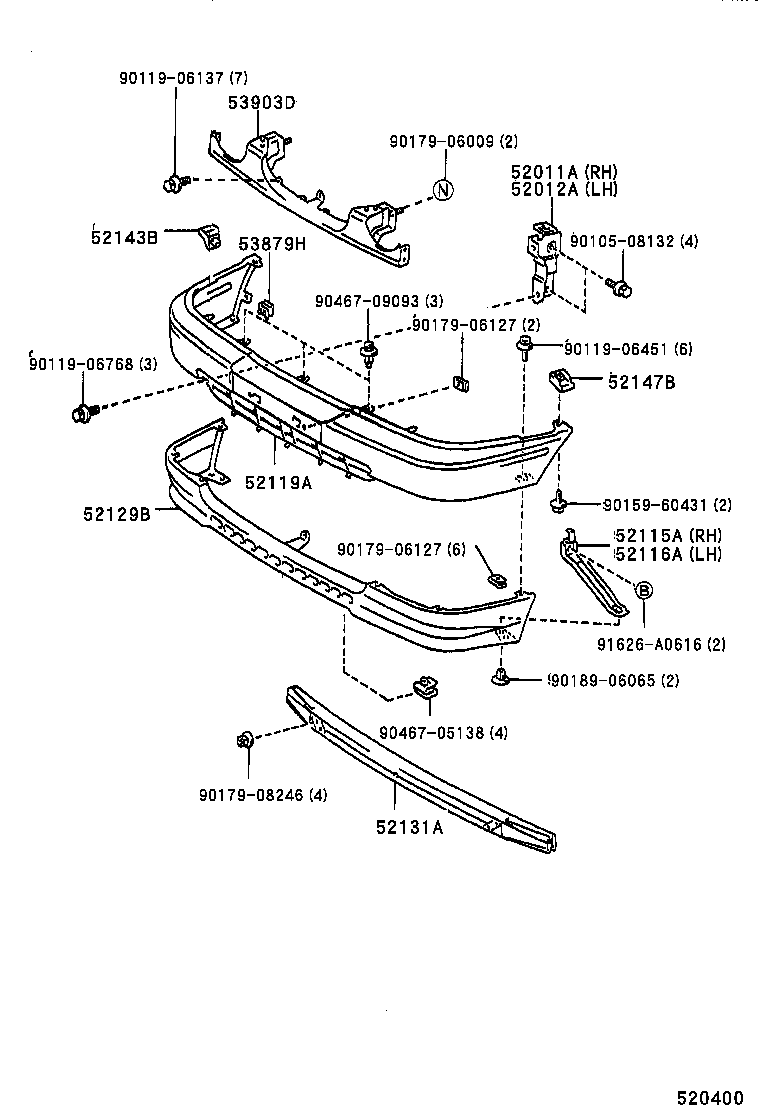

Front Bumper & Bumper Stay
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52011A | Arm Sub-assy, Front Bumper, RH |
| 52012A | Arm Sub-assy, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52121B | Bracket, Front Licence Plate Mounting |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52143B | Bracket, Front Bumper Side |
| 52145C | Bracket, Front Bumper Side Mounting, RH |
| 52146B | Bracket, Front Bumper Side Mounting, LH |
| 52147B | Bracket, Front Bumper Mounting |
| 52411 | Guard, Front Bumper |
| 52412 | Guard, Front Bumper, NO.2 |
| 52419 | Plate, Front Bumper Guard |
| 52427 | Reinforcement, Front Bumper Guard, RH |
| 52428 | Reinforcement, Front Bumper Guard, LH |
| 52433 | Support, Front Bumper Guard, RH |
| 52435 | Garnish, Front Bumper Guard |
| 52437 | Cover, Front Bumper Guard, RH |
| 52438 | Cover, Front Bumper Guard, LH |
| 52526A | Retainer, Front Bumper, Lower NO.1 |
| 53879H | Retainer, Front Fender Liner |
| 53903D | Extension Sub-assy, Front Bumper, Upr |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
