Toyota Sprinter Carib

1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

85 part groups · 2 illustrations

Illustrations

610326A 1995-08 → 1997-04

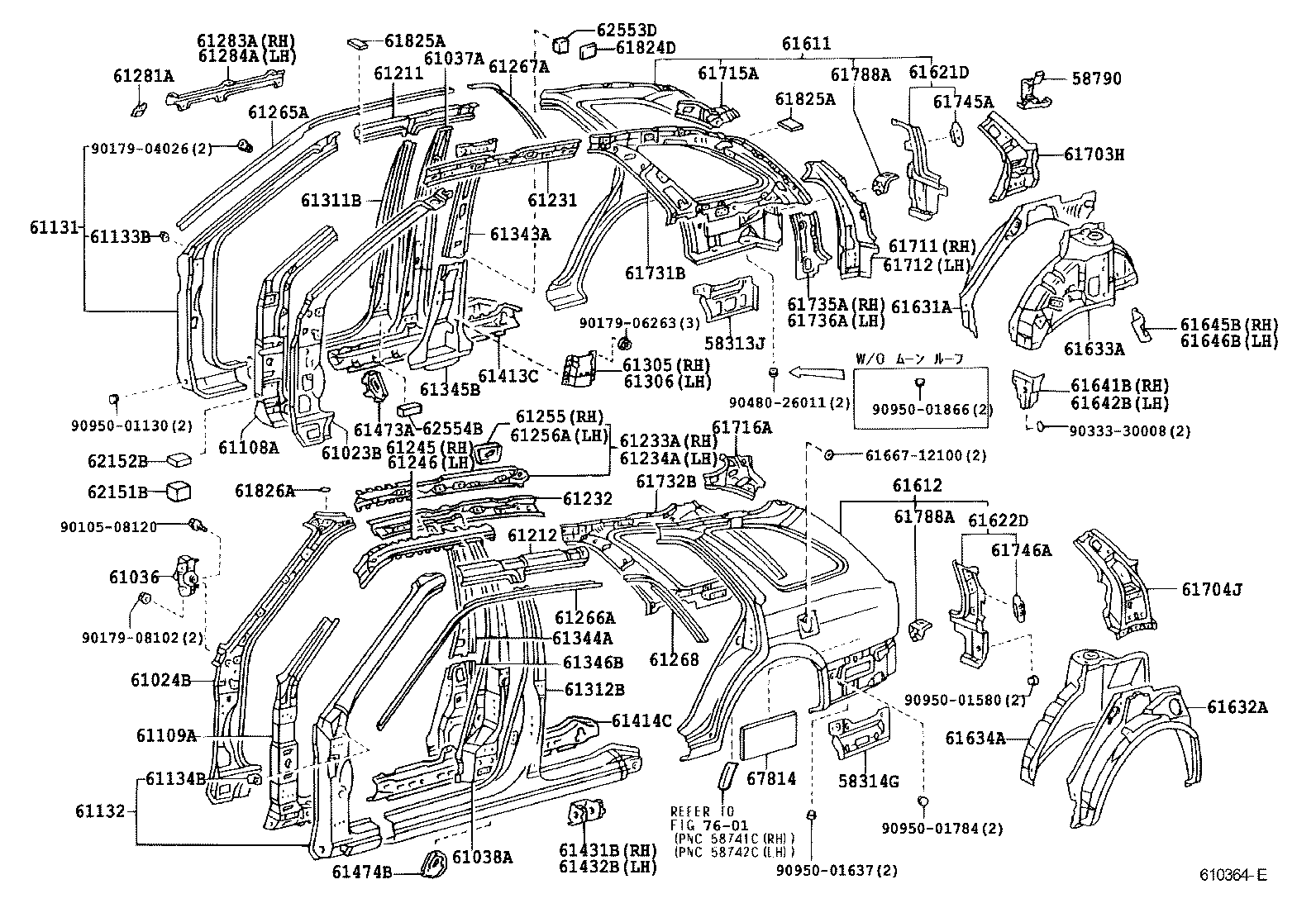

610364E 1997-04 → —

Part groups

PNC	Description
58313J	Extension, Rear Floor Pan TO Quarter Panel, RH
58314G	Extension, Rear Floor Pan TO Quarter Panel, LH
58790	Carrier Assy, Jack
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61036	Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61045	Reinforce Sub-assy, Belt TO Center Pillar, RH
61046	Reinforce Sub-assy, Belt TO Center Pillar, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61133B	Bracket, Front Body Pillar ,Outer RH
61134B	Bracket, Front Body Pillar Outer, LH
61175	Reinforcement, Front Body Pillar, Inner NO.2 RH
61176A	Reinforcement, Front Body Pillar, Inner NO.2 LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61245	Reinforcement, Roof Side Rail, Outer RH
61246	Reinforcement, Roof Side Rail, Outer LH
61255	Plate, Roof Side Rail, Outer RH
61256A	Plate, Roof Side Rail, Outer LH
61265A	Channel, Roof Drip Side, Center RH
61266A	Channel, Roof Drip Side, Center LH
61267A	Channel, Roof Drip Side, Rear RH
61268	Channel, Roof Drip Side, Rear LH
61281A	Bracket, Sliding Roof Housing Side Mounting, NO.1
61283A	Bracket, Sliding Roof Housing Side Mounting, NO.3 RH
61284A	Bracket, Sliding Roof Housing Side Mounting, NO.3 LH
61305	Reinforce Sub-assy, Center Body Pillar, Lower RH
61306	Reinforce Sub-assy, Center Body Pillar, Lower LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61345B	Pillar, Center Body, Inner Lower RH
61346B	Pillar, Center Body, Inner Lower LH
61391	Spacer, Center Body Pillar, Inner
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61413C	Reinforcement, Rocker Panel, NO.2 RH
61414C	Reinforcement, Rocker Panel, NO.2 LH
61431B	Reinforcement, Rocker Panel, NO.6 RH
61432B	Reinforcement, Rocker Panel, NO.6 LH
61473A	Plate, Pillar NO.3, Lower RH
61474B	Plate, Pillar NO.4, Lower LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61641B	Gusset, Quarter Wheel House, RH
61642B	Gusset, Quarter Wheel House, LH
61645B	Gusset, Quarter Wheel House, Rear RH
61646B	Gusset, Quarter Wheel House, Rear LH
61703H	Reinforcement Sub-assy, Roof Side, Inner RH
61704J	Reinforcement Sub-assy, Roof Side, Inner LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61715A	Extension, Roof Side, Inner Upper RH
61716A	Extension, Roof Side, Inner Upper LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61788A	Bracket, Rear Bumper Side, NO.2 RH
61824D	Plate, Noise Control, NO.1
61825A	Plate, Noise Control, NO.2
61826A	Plate, Noise Control, NO.3
62151B	Pad, Cowl Side Silencer
62152B	Pad, Cowl Side Silencer, NO.2
62553D	Pad, Pillar, NO.3
62554B	Pad, Pillar, NO.4
67814	Pad, Quarter Panel Silencer, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
