Toyota Sprinter Carib
1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan
Discontinued model
Data version 2003-01

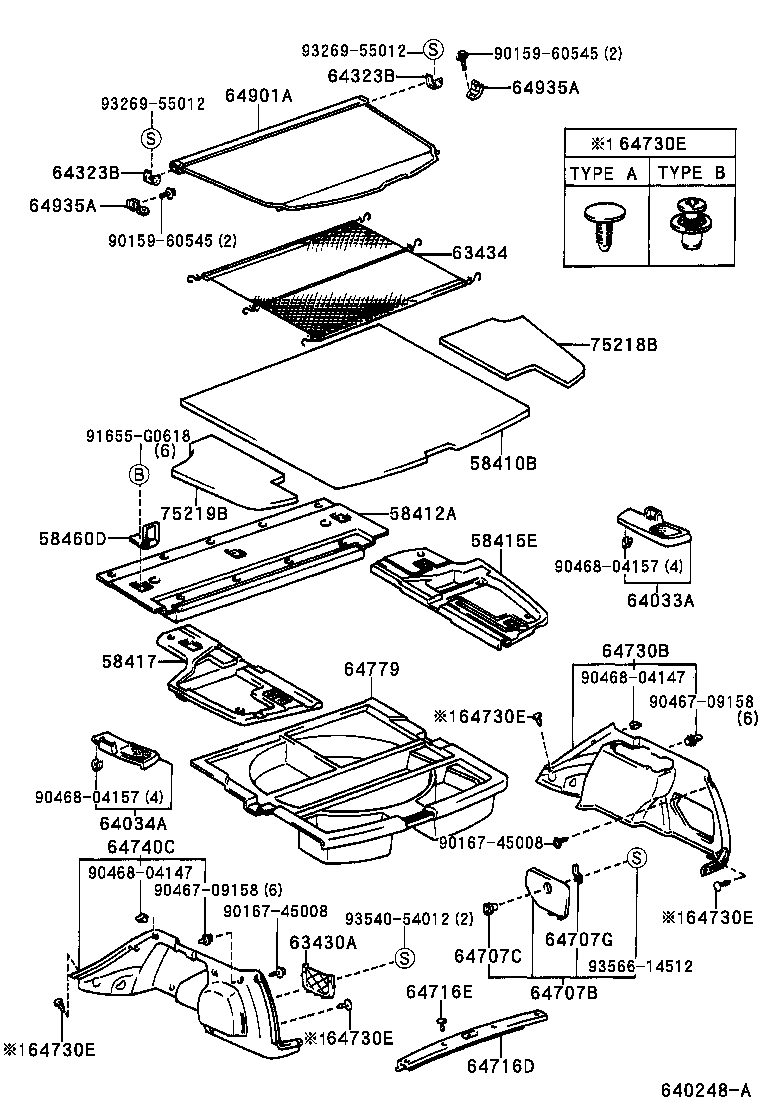

Deck Board & Deck Trim Cover
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410B | Board Assy, Deck |
| 58412A | Board, Deck, NO.2 |
| 58415E | Board, Rear Floor, NO.1 |
| 58417 | Board, Rear Floor, NO.3 |
| 58460D | Striker Assy, Luggage Hold Belt |
| 63430A | Rack Assy, Room |
| 63434 | Net, Room Rack |
| 64033A | Grille Sub-assy, Rear Speaker, RH |
| 64034A | Grille Sub-assy, Rear Speaker, LH |
| 64323B | Clamp, Tonneau Cover |
| 64707B | Cover Sub-assy, Quarter Trim Jack |
| 64707C | Knob, Jack Cover |
| 64707G | Stopper, Jack Cover |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64770D | Cover Assy, Spare Wheel |
| 64779 | Tray, Spare Wheel Cover |
| 64901A | Retractor Sub-assy, Tonneau Cover |
| 64935A | Holder, Tonneau Cover |
| 75218B | Lid, Tool Box, RH |
| 75219B | Lid, Tool Box, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
