Toyota Sprinter Carib

1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan

Discontinued model Data version 2003-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

43 part groups · 4 illustrations

Illustrations

710515B 1995-08 → 1997-04

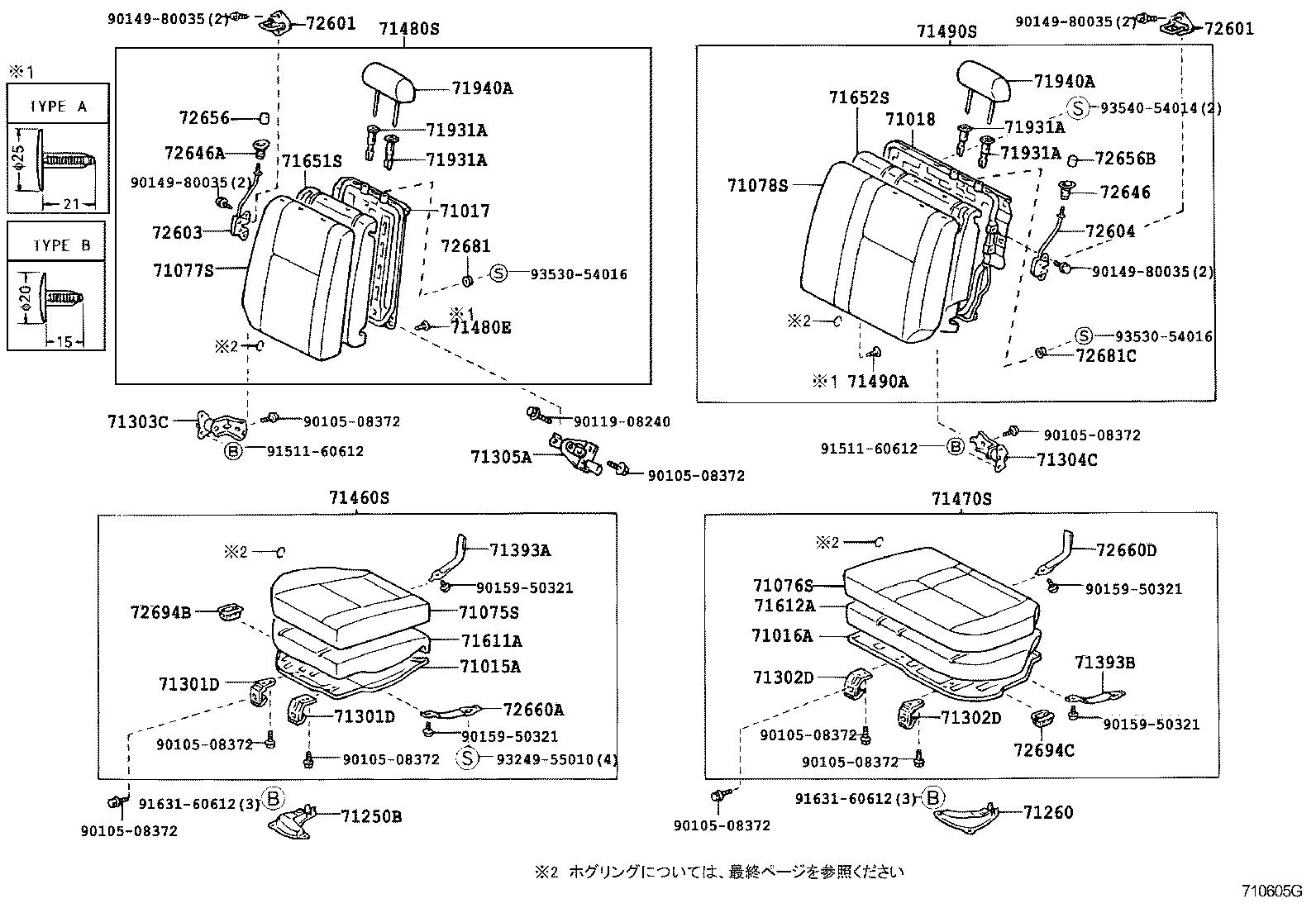

710605G 1997-04 → —

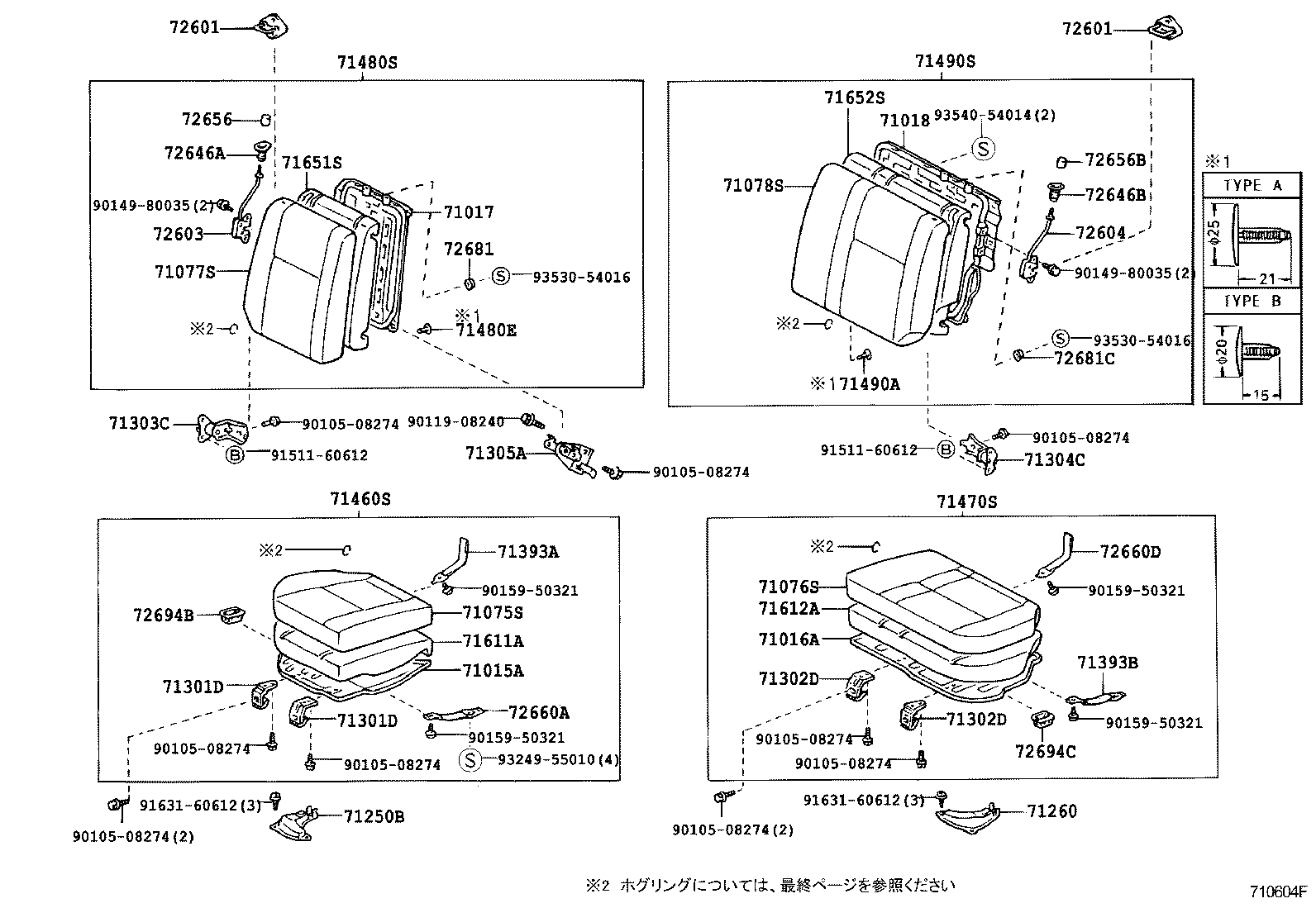

710604F 1997-04 → —

718165A 1995-08 → —

Part groups

PNC	Description
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71250B	Bracket Assy, Seat, Outer RH
71260	Bracket Assy, Seat, Outer LH
71301D	Hinge Sub-assy, Rear Seat, RH
71302D	Hinge Sub-assy, Rear Seat, LH
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71393A	Band, Rear Seat Cushion, RH
71393B	Band, Rear Seat Cushion, LH
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480E	Clip, Rear Seatback, RH
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490A	Clip, Rear Seatback, LH
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72601	Striker Sub-assy, Rear Seat Lock
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72646	Grommet, Rear Seatback Stop Button
72646A	Grommet, Rear Seatback Stop Button
72646B	Grommet, Rear Seatback Stop Button
72656	Button, Rear Seatback Stop Release
72656B	Button, Rear Seatback Stop Release
72660A	Support Assy, Rear Seat Cushion
72660D	Support Assy, Rear Seat Cushion
72681	Hook, Rear Seatback Lock, Lower
72681C	Hook, Rear Seatback Lock, Lower
72694B	Cover, Rear Seat Cushion Lock, RH
72694C	Cover, Rear Seat Cushion Lock, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
