Toyota Sprinter Carib

1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

13 part groups · 2 illustrations

Illustrations

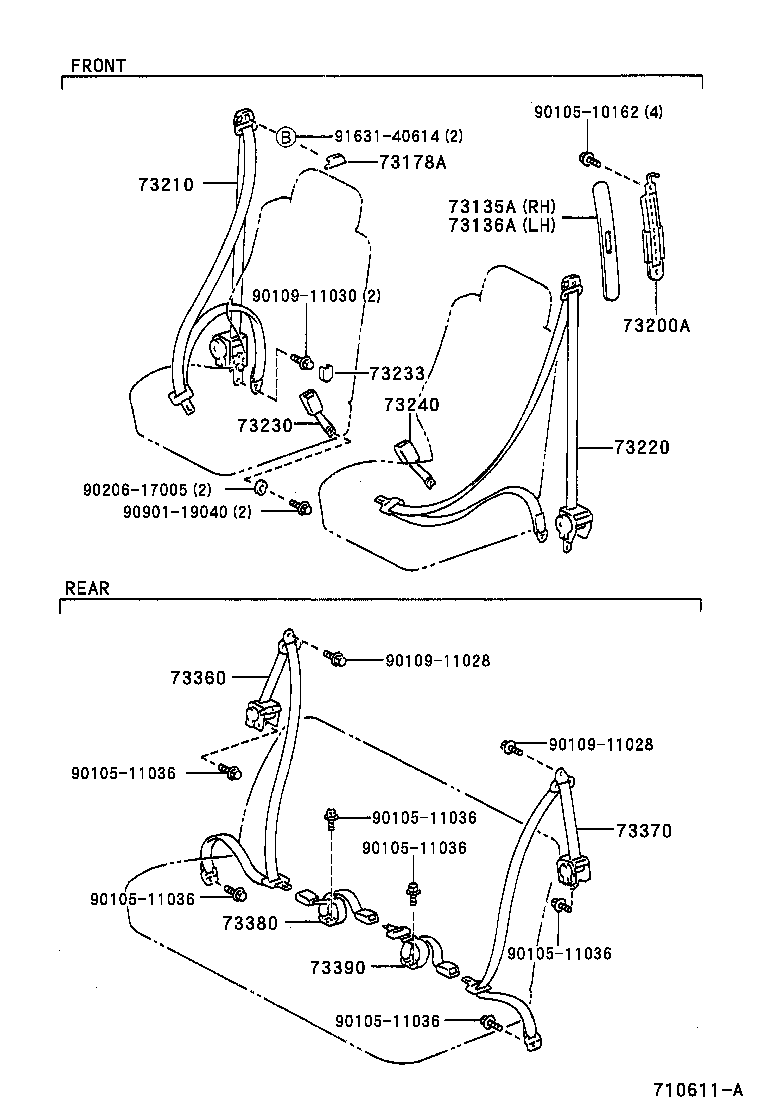

Figure 710531 710531 1995-08 → 1997-04 Figure 710611A 710611A 1997-04 → —

Part groups

PNCDescription
73135A Cover, Shoulder Belt Anchor, RH
73136A Cover, Shoulder Belt Anchor, LH
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
