Toyota Sprinter Carib

1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

15 part groups · 2 illustrations

Illustrations

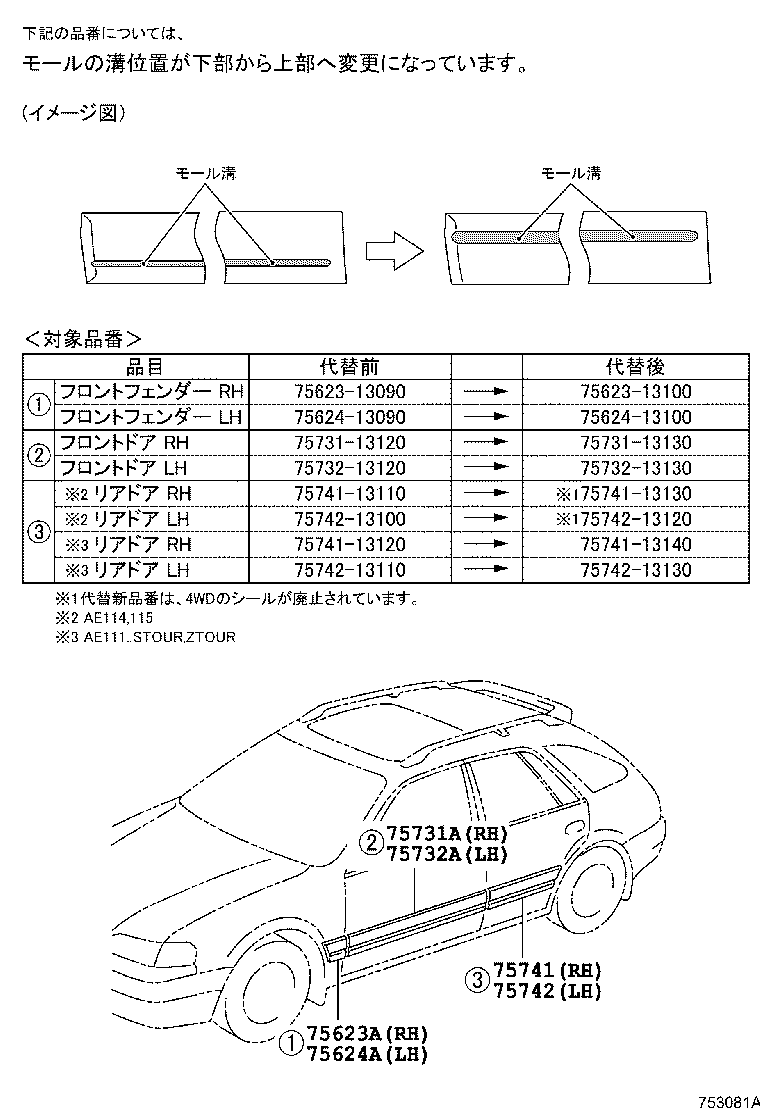

Figure 750298C 750298C 1995-08 → — Figure 753081A 753081A 1995-08 → —

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75566 Seal, Roof Drip Side Finish Moulding, Front
75566A Seal, Roof Drip Side Finish Moulding, Front
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75721A Moulding, Rear Door Belt, RH
75721C Clip, Door Glass Weatherstrip
75722A Moulding, Rear Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
