Toyota Sprinter Carib
1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan
Discontinued model
Data version 2003-01
Meter
17 part groups · 5 illustrations
Part groups

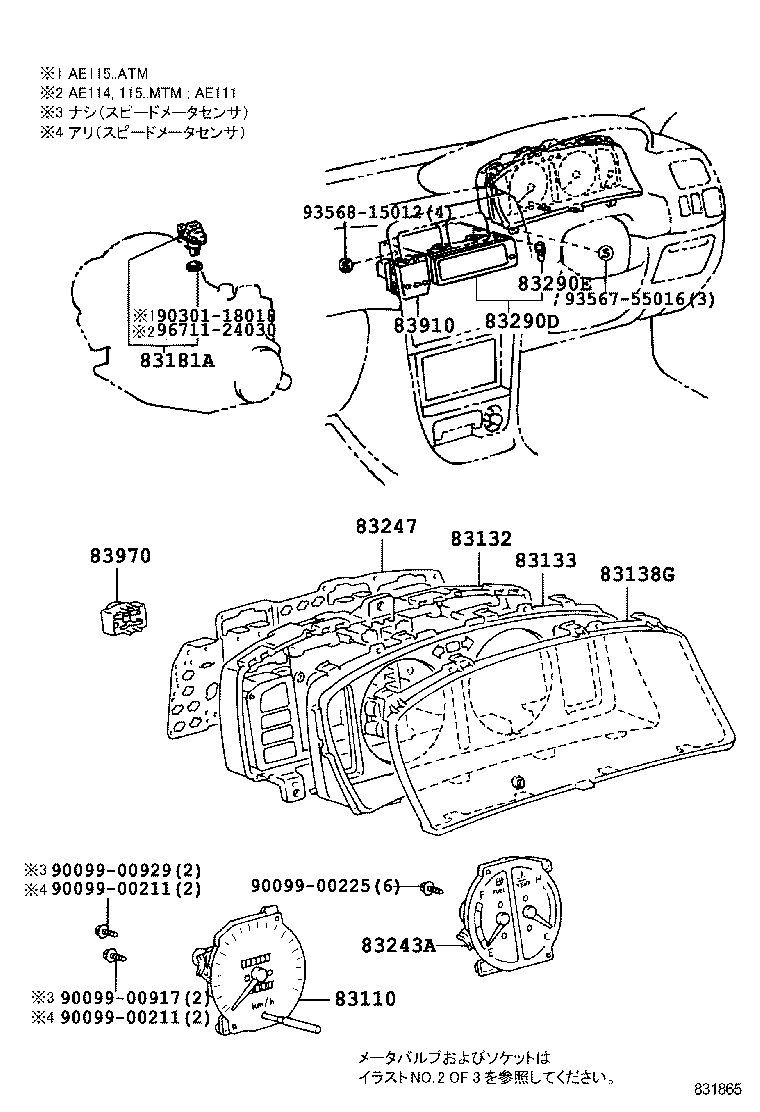

| PNC | Description |
|---|---|

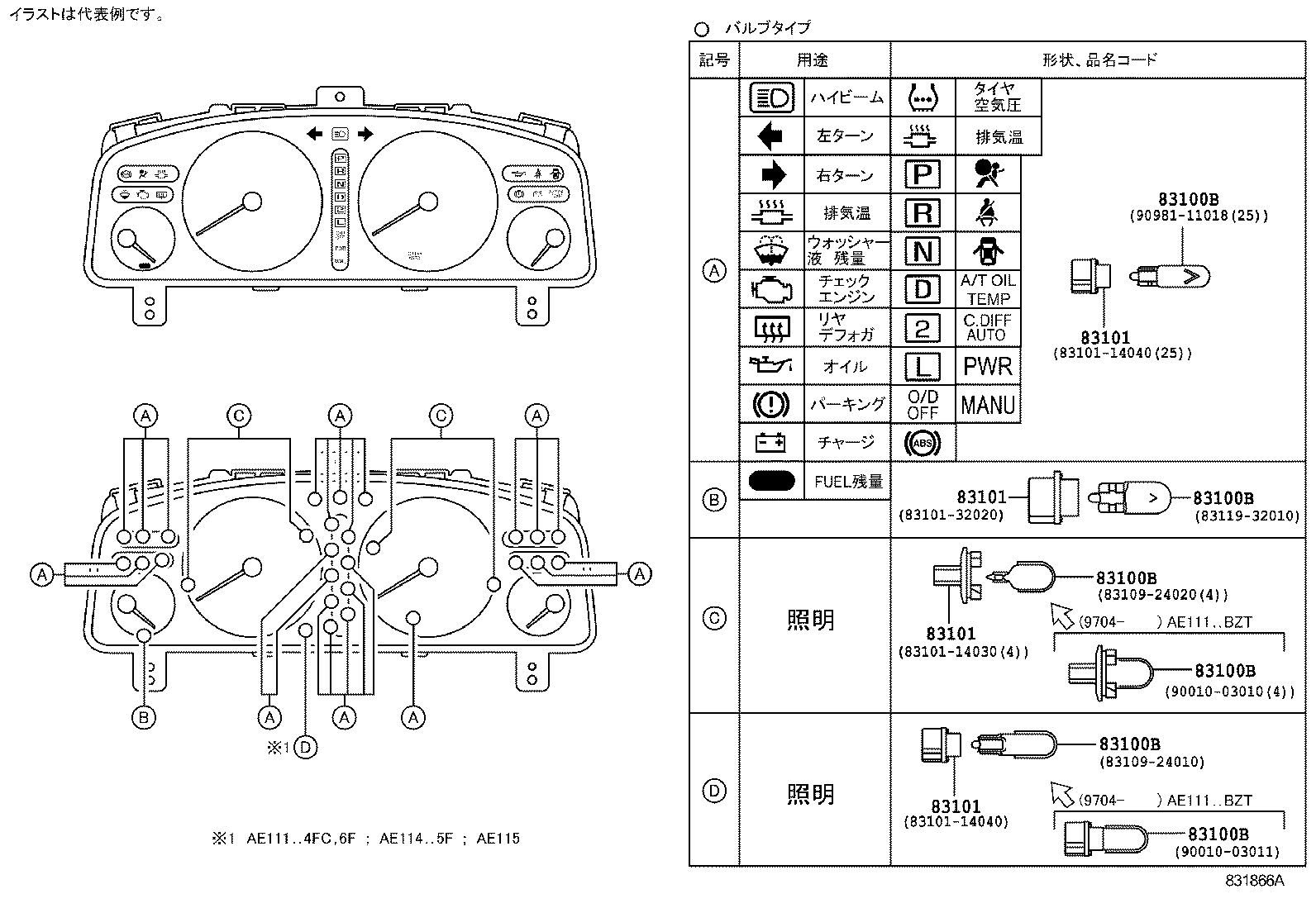

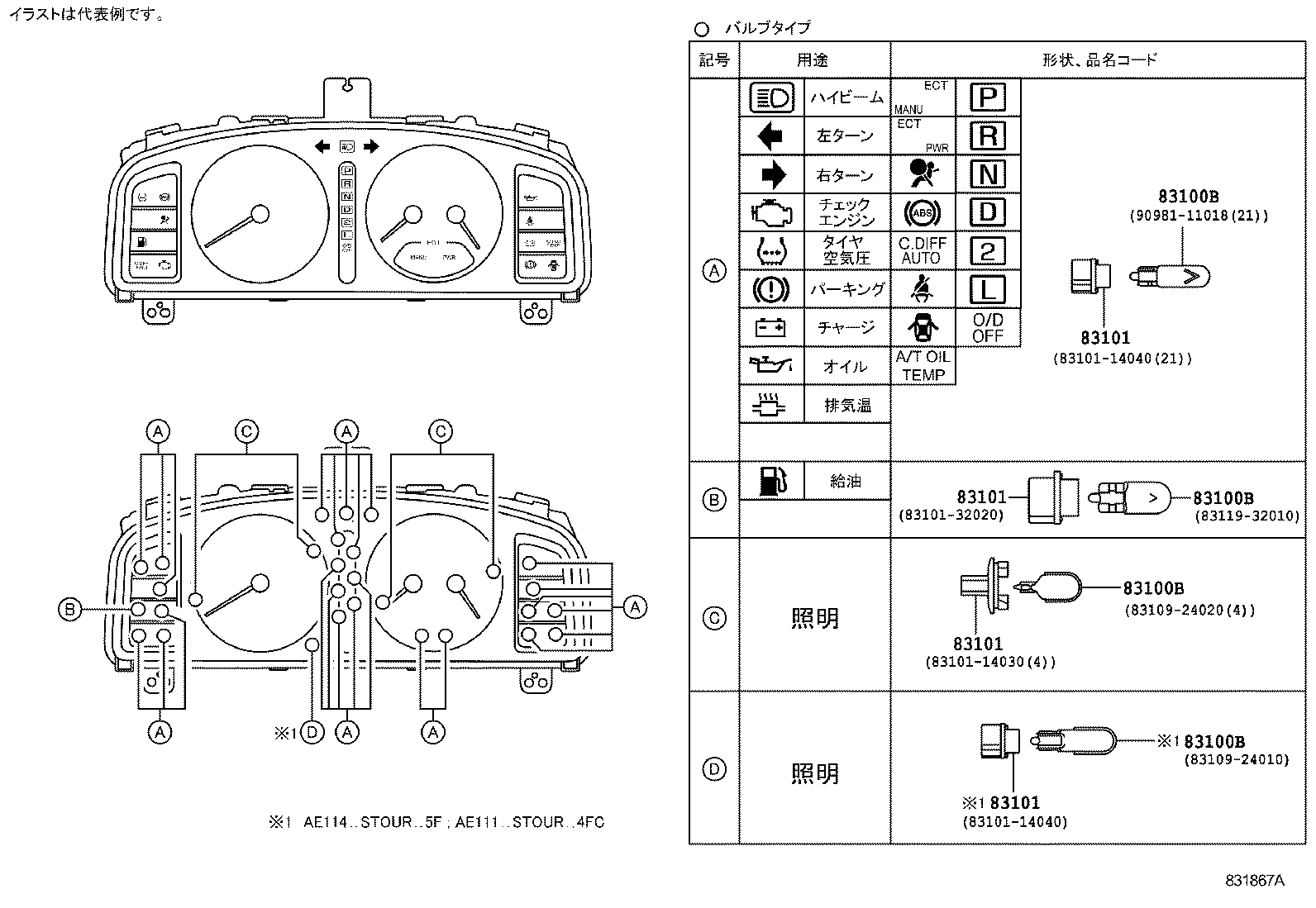

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |
| 83181A | Sensor, Speedometer |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83290D | Meter Assy, Accessory |
| 83290E | Bulb, Accessory Meter |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710A | Cable Assy, Speedometer Drive, NO.2 |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
