Toyota Sprinter Carib

1995-08 → 2002-07 · chassis AE11# · catalogue 157120 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 5 illustrations

Illustrations

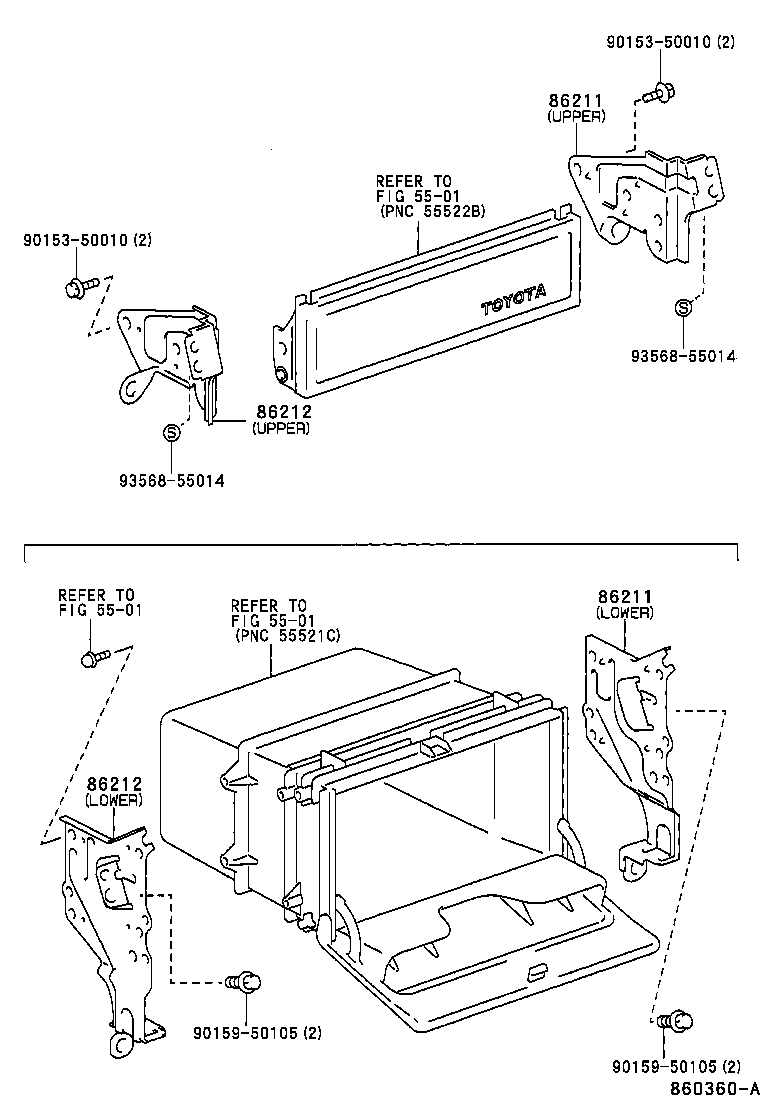

Figure MEZ607 MEZ607 1995-08 → 1997-04 Figure 860360A 860360A 1997-04 → — Figure 860357A 860357A 1997-04 → — Figure MEZ037 MEZ037 1995-08 → 1997-04 Figure NE2413 NE2413 1995-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86203H Wire, Stereo Component, NO.2
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
