Toyota Will VS
2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan
Discontinued model
Data version 2005-01

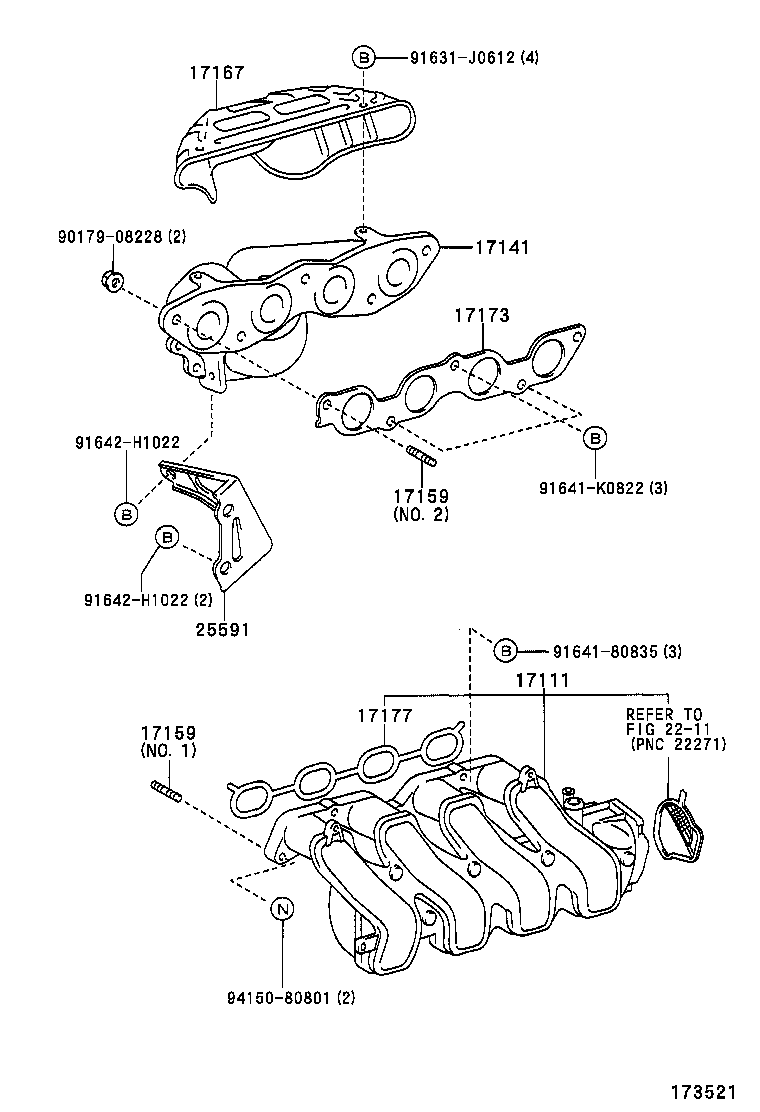

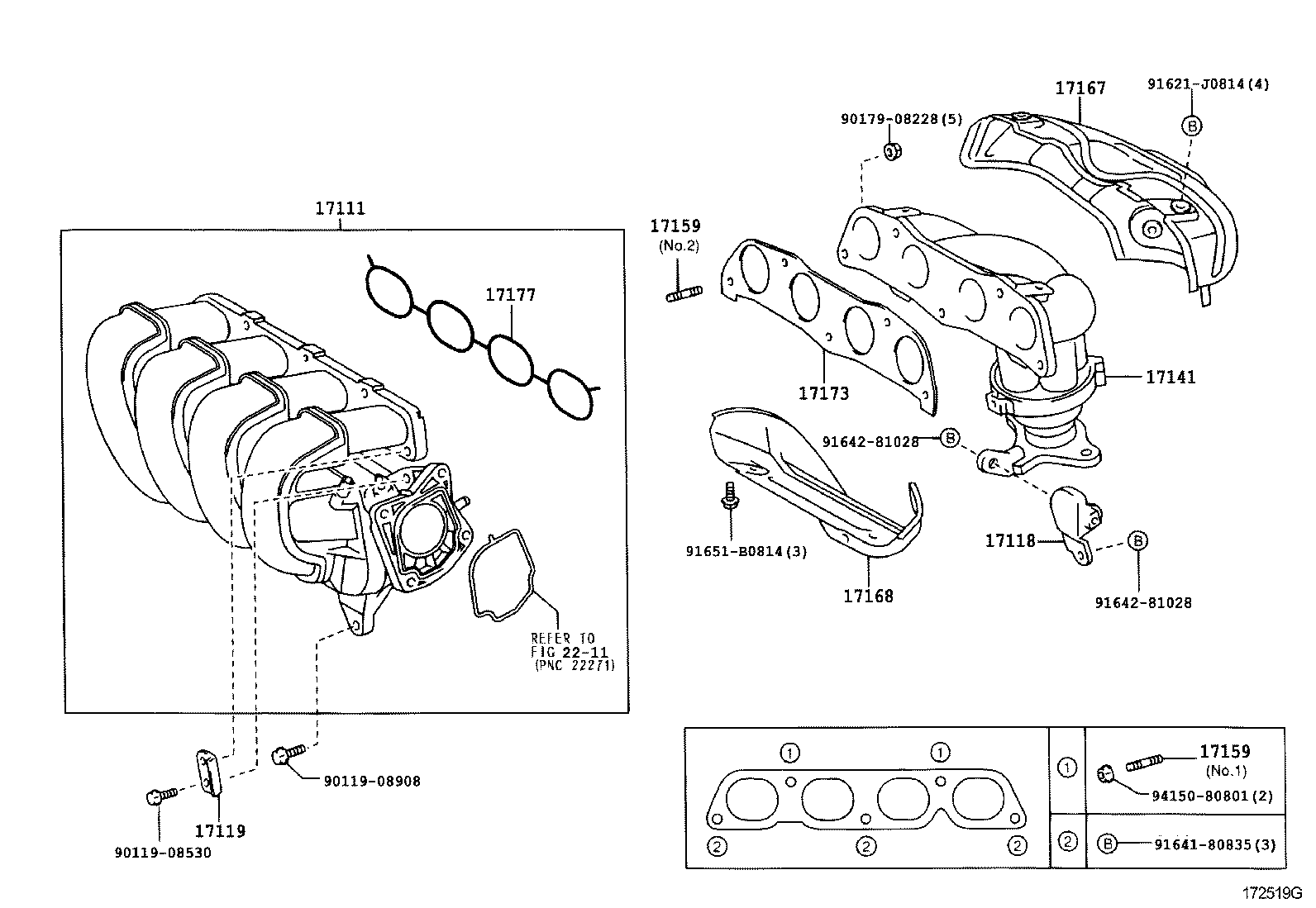

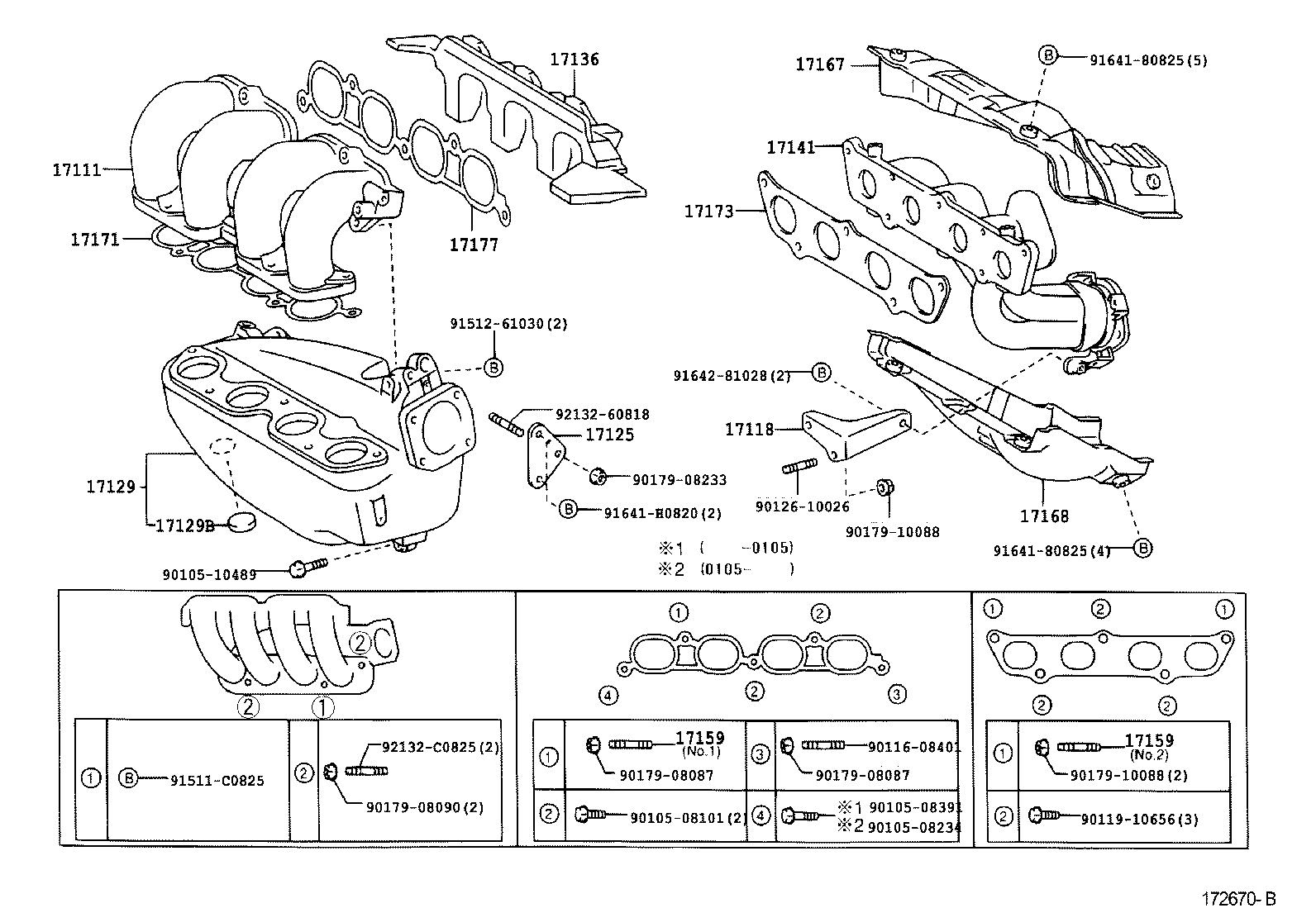

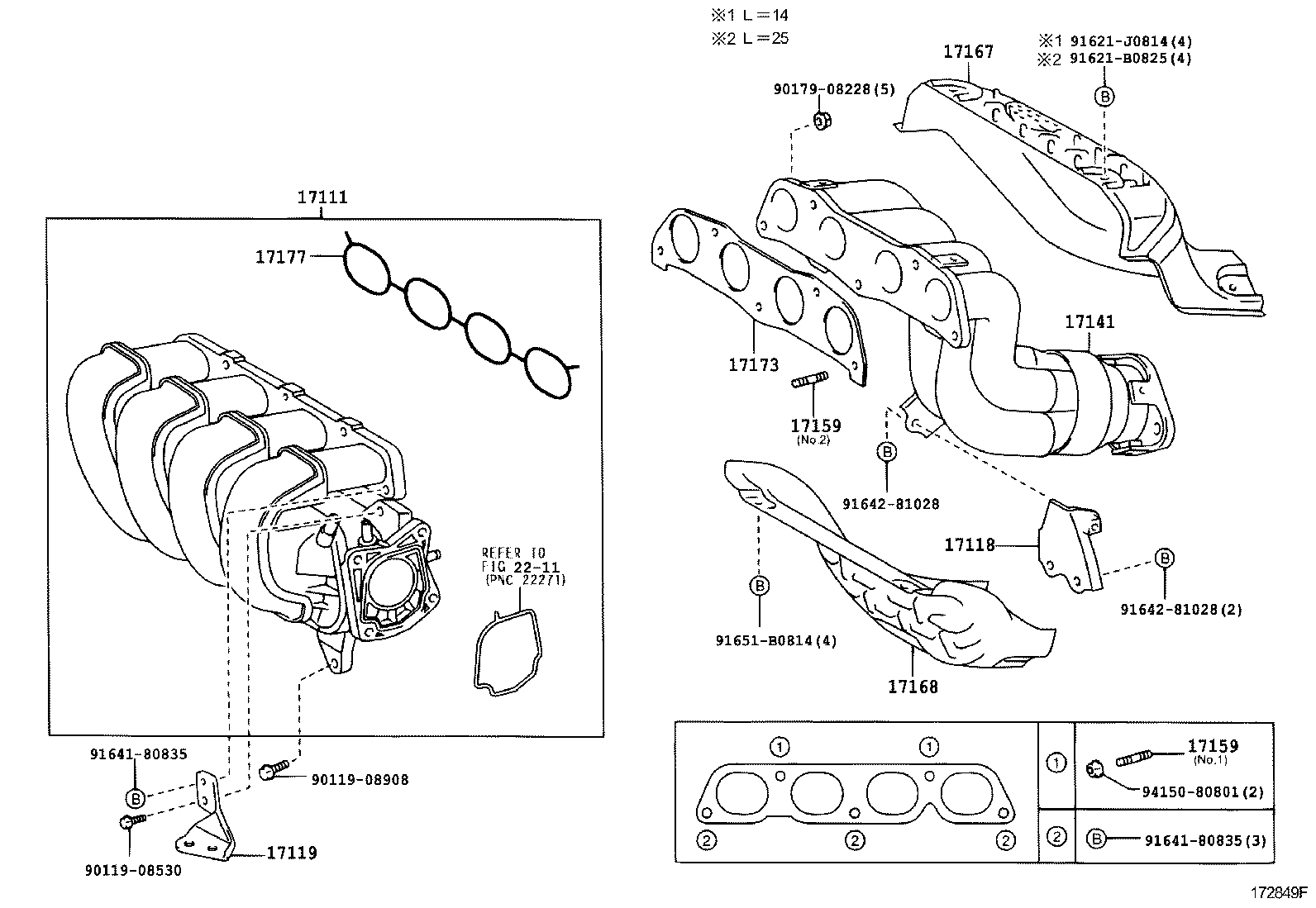

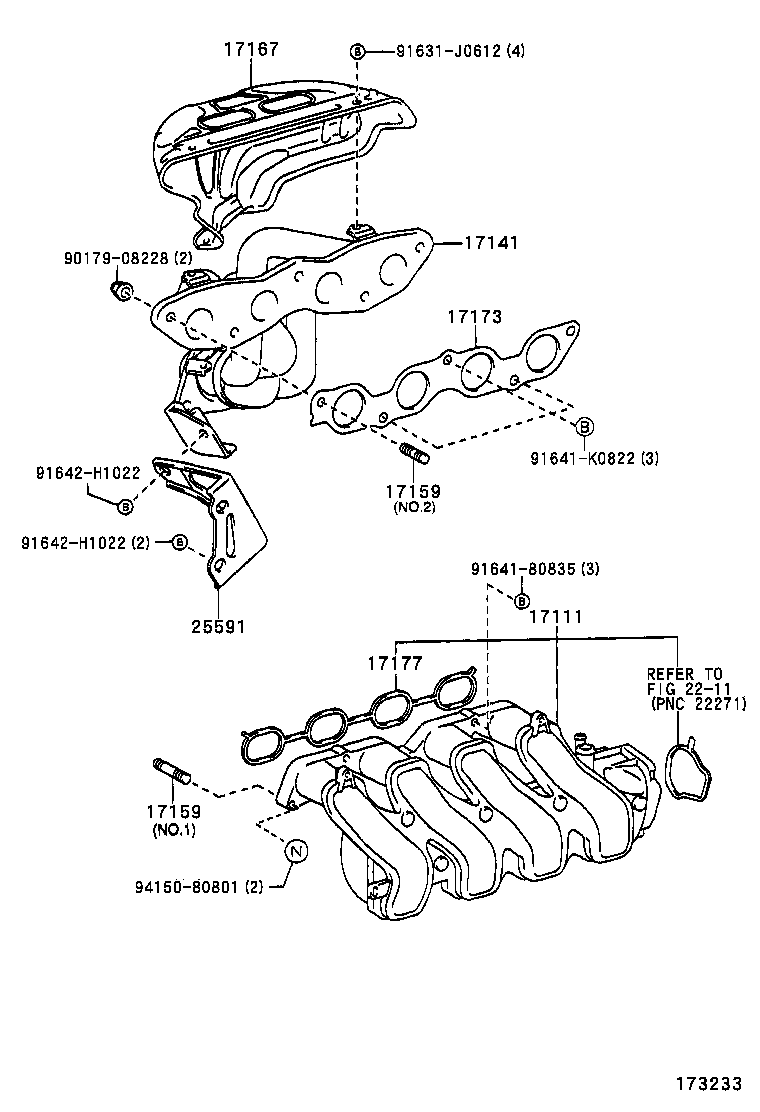

Manifold
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17111 | Manifold, Intake |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17129 | Tank, Intake Air Surge |
| 17129B | Plug |
| 17136 | Insulator, Intake Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17171 | Gasket, Intake TO Exhaust Manifold |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 25591 | Bracket, Manifold Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
