Toyota Will VS

2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 4 illustrations

Illustrations

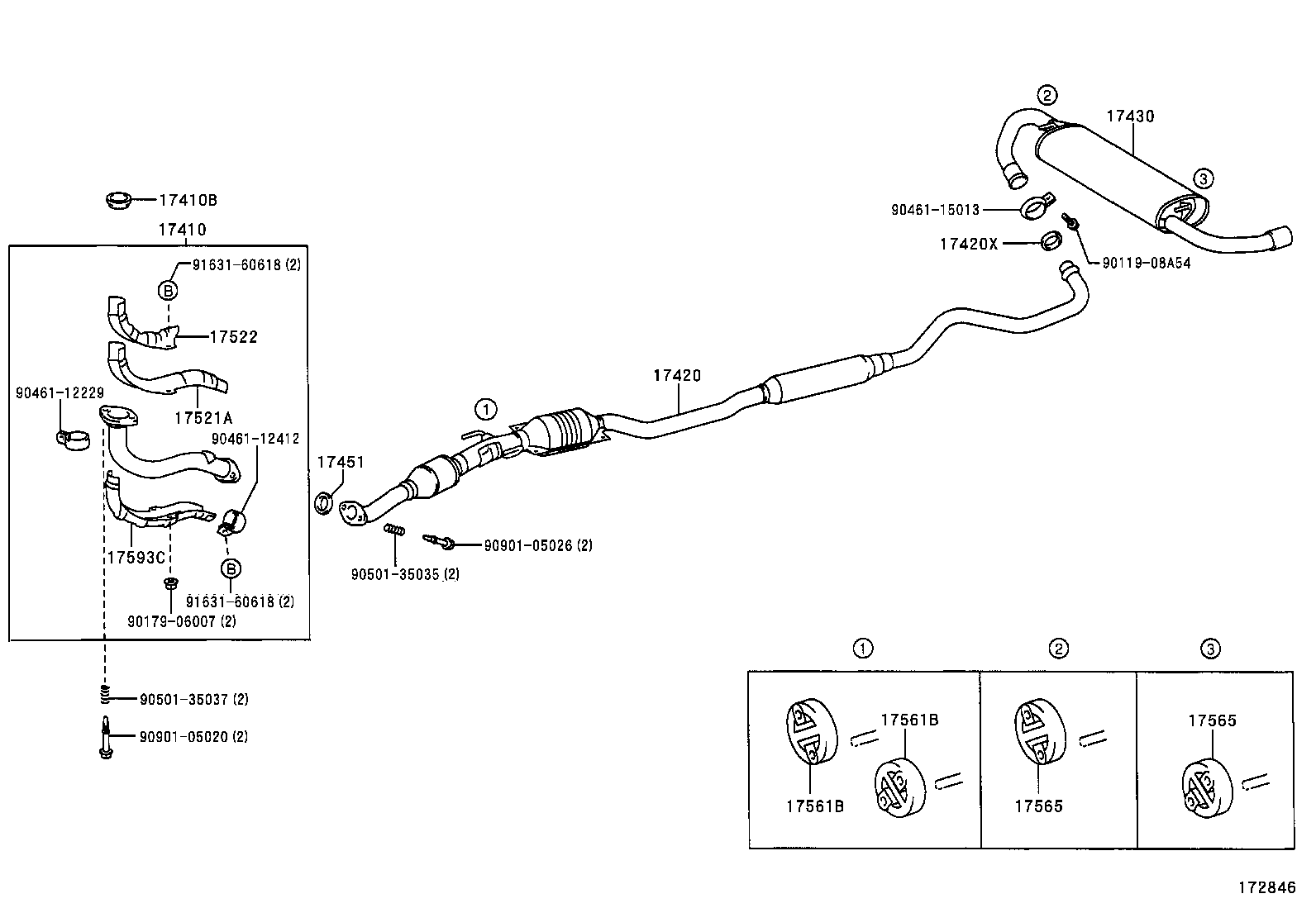

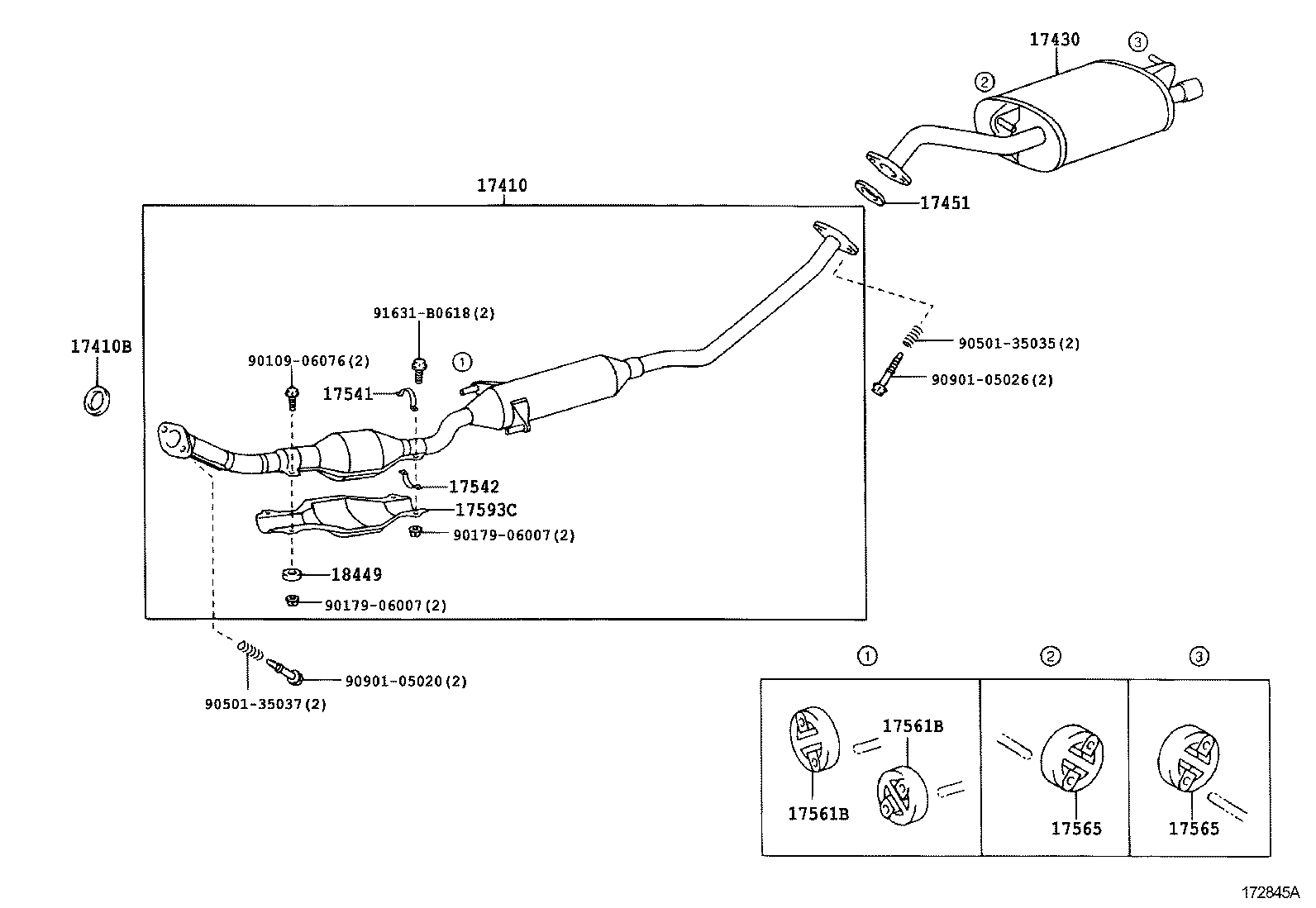

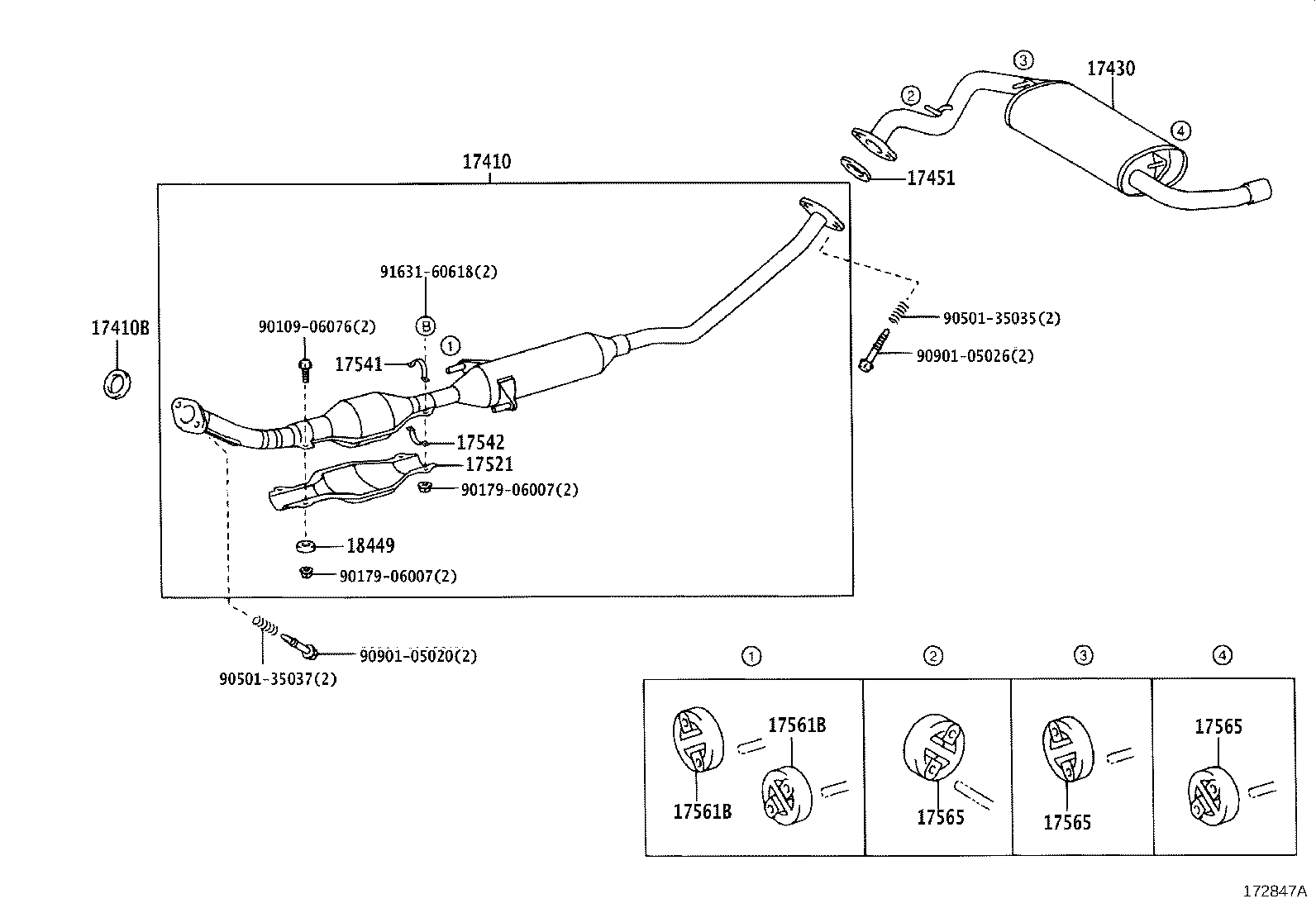

Figure 172845A 172845A 2001-04 → — Figure 172846 172846 2001-04 → — Figure 172929 172929 2002-01 → — Figure 172847A 172847A 2001-04 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17521 Protector, Exhaust Pipe, Front NO.1
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17541 Stay, Exhust Pipe Protector, NO.1
17542 Stay, Exhaust Pipe Protector, NO.2
17561B Support, Exhaust Pipe, NO.1
17565 Support, Exhaust Pipe, NO.5
17593C Protector, Exhaust Pipe, Lower NO.1
18449 Spacer, Converter Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
