Toyota Will VS
2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan
Discontinued model
Data version 2005-01

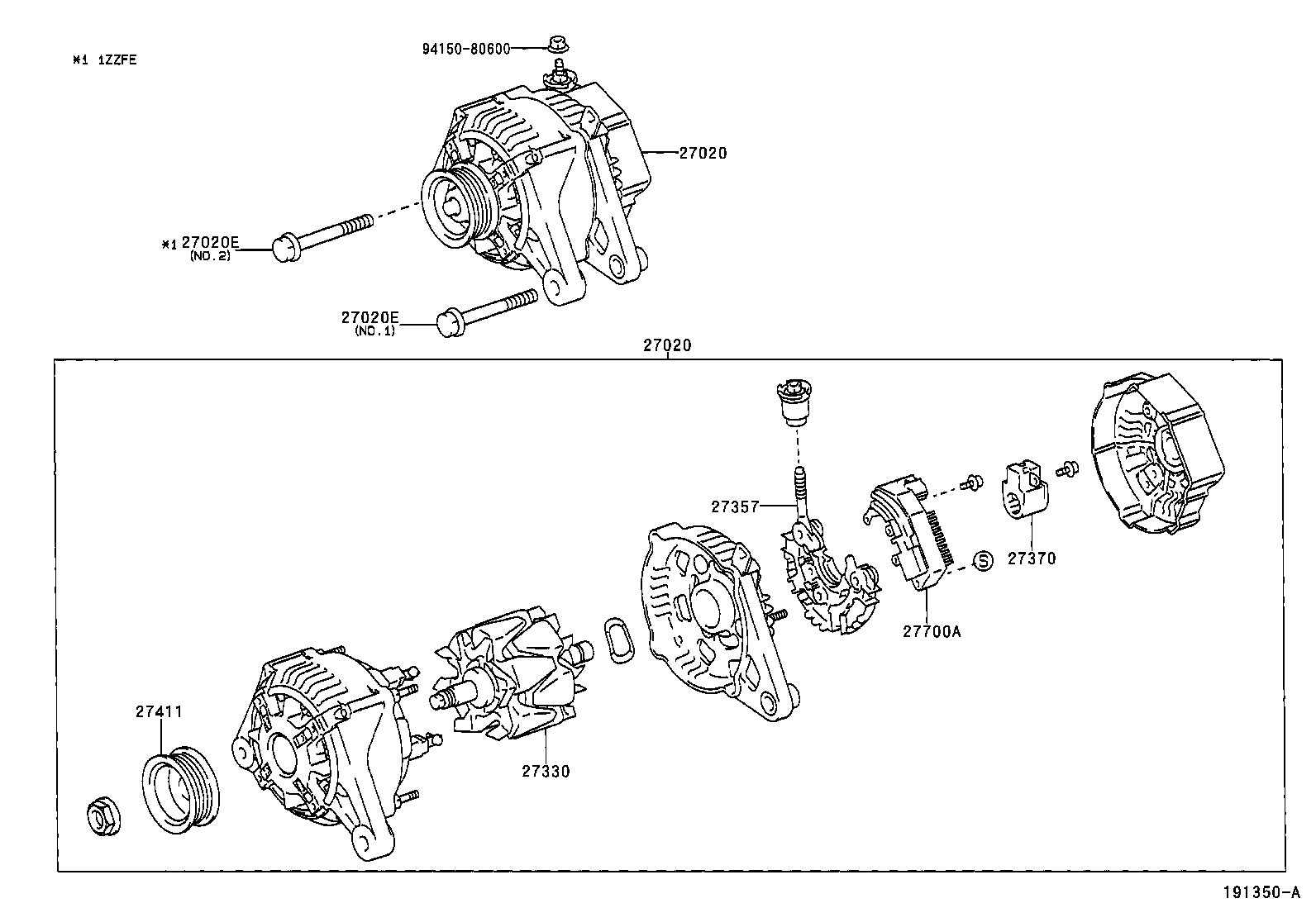

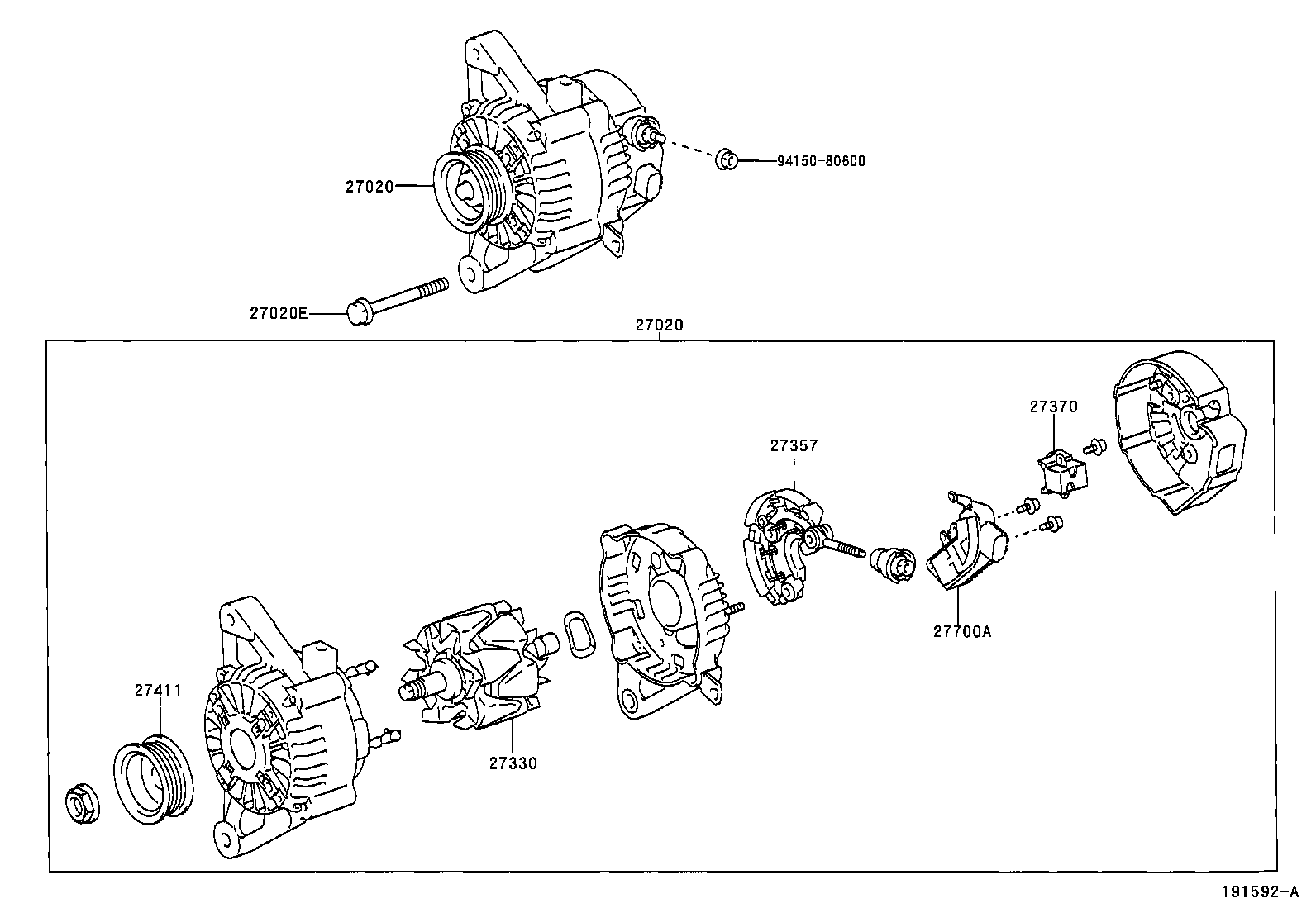

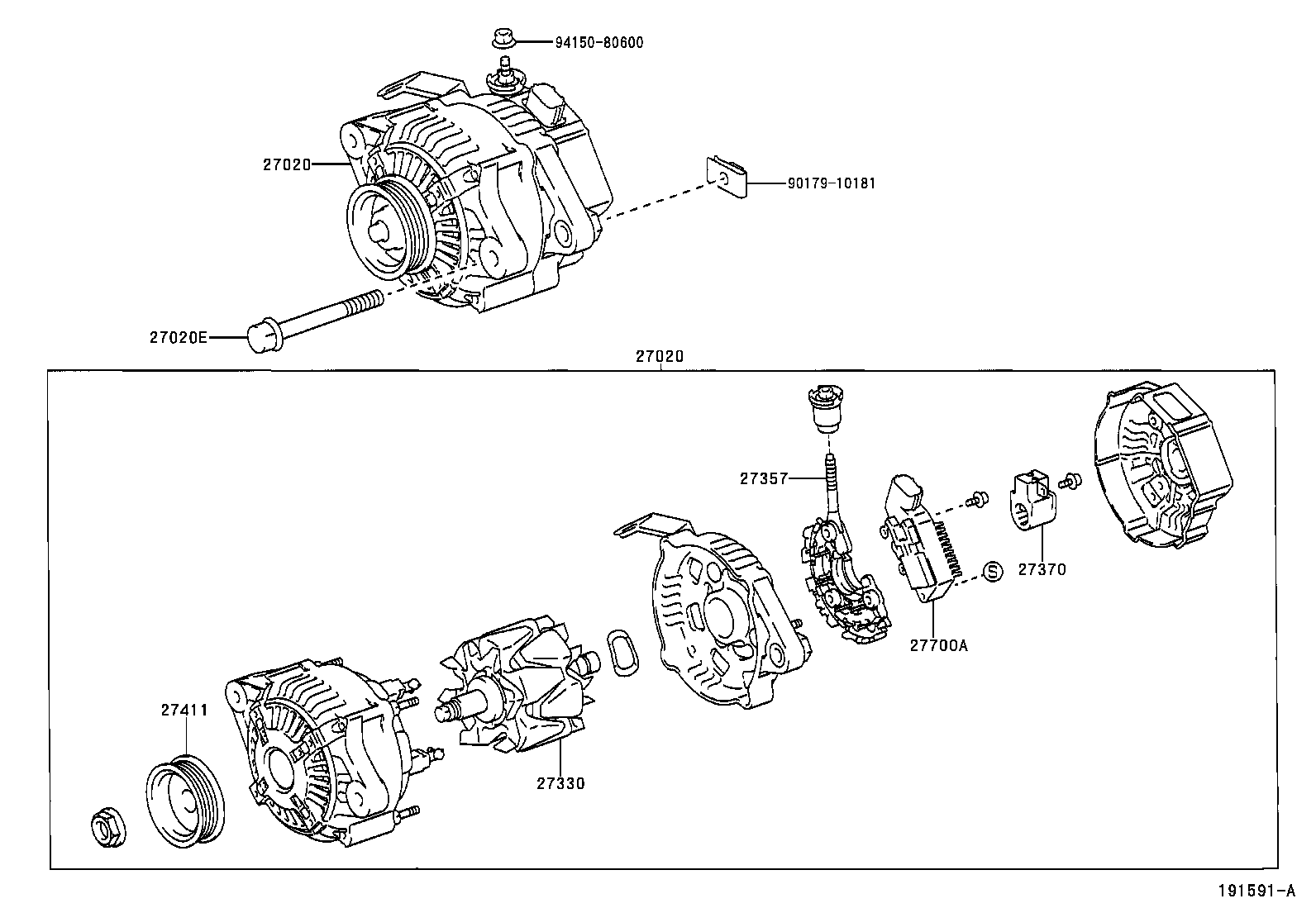

Alternator
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27330 | Rotor Assy, Alternator |
| 27357 | Holder, Alternator, W/Rectifier |
| 27370 | Holder Assy, Alternator Brush |
| 27411 | Pulley, Alternator |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
