Toyota Will VS

2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

4 part groups · 2 illustrations

Illustrations

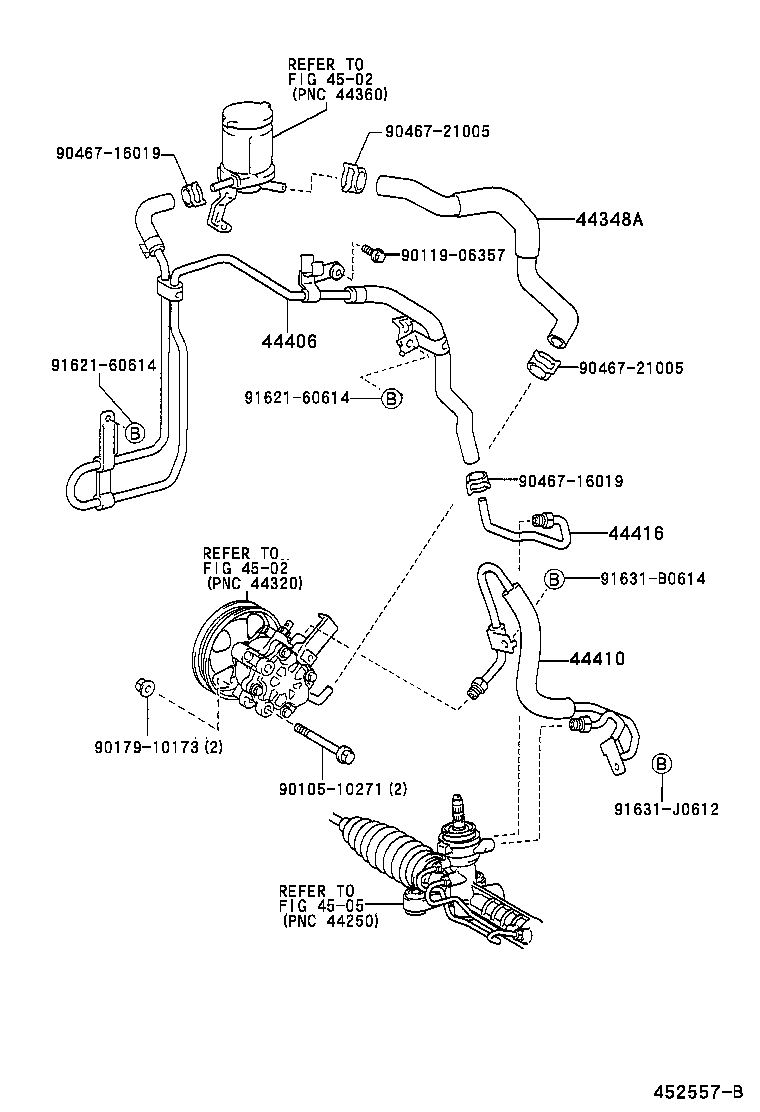

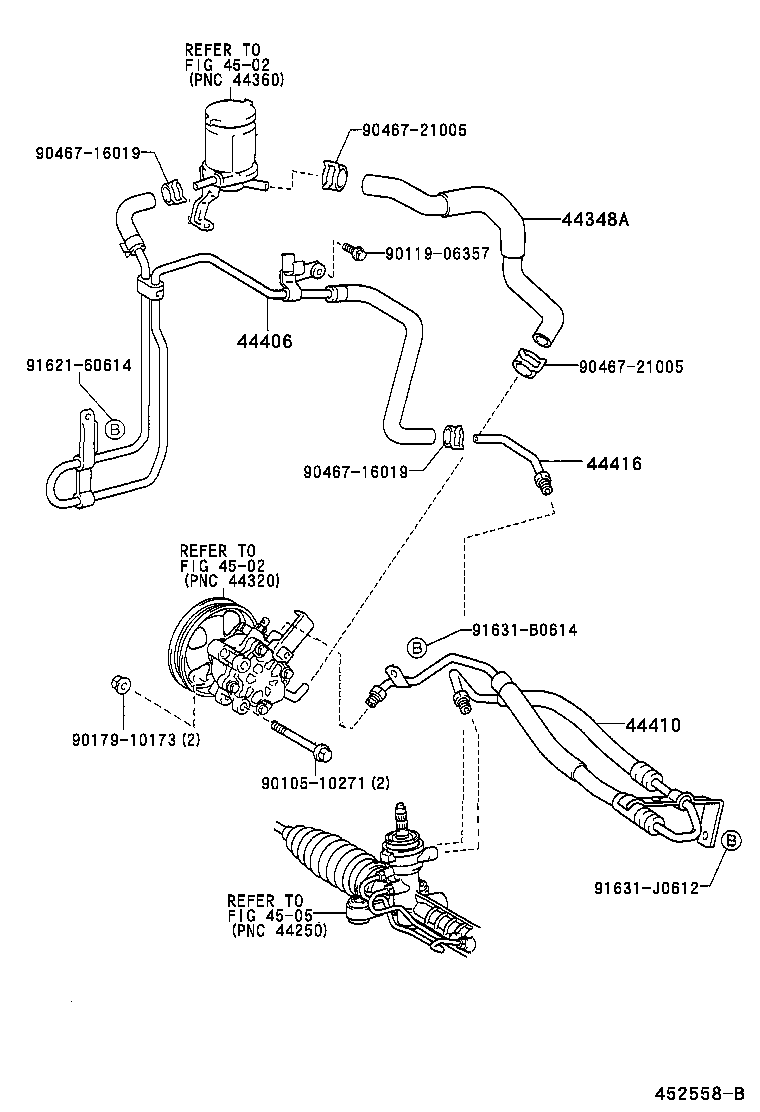

Figure 452557B 452557B 2001-04 → — Figure 452558B 452558B 2001-04 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
