Toyota Will VS
2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan
Discontinued model
Data version 2005-01
Suspension Crossmember & Under Cover

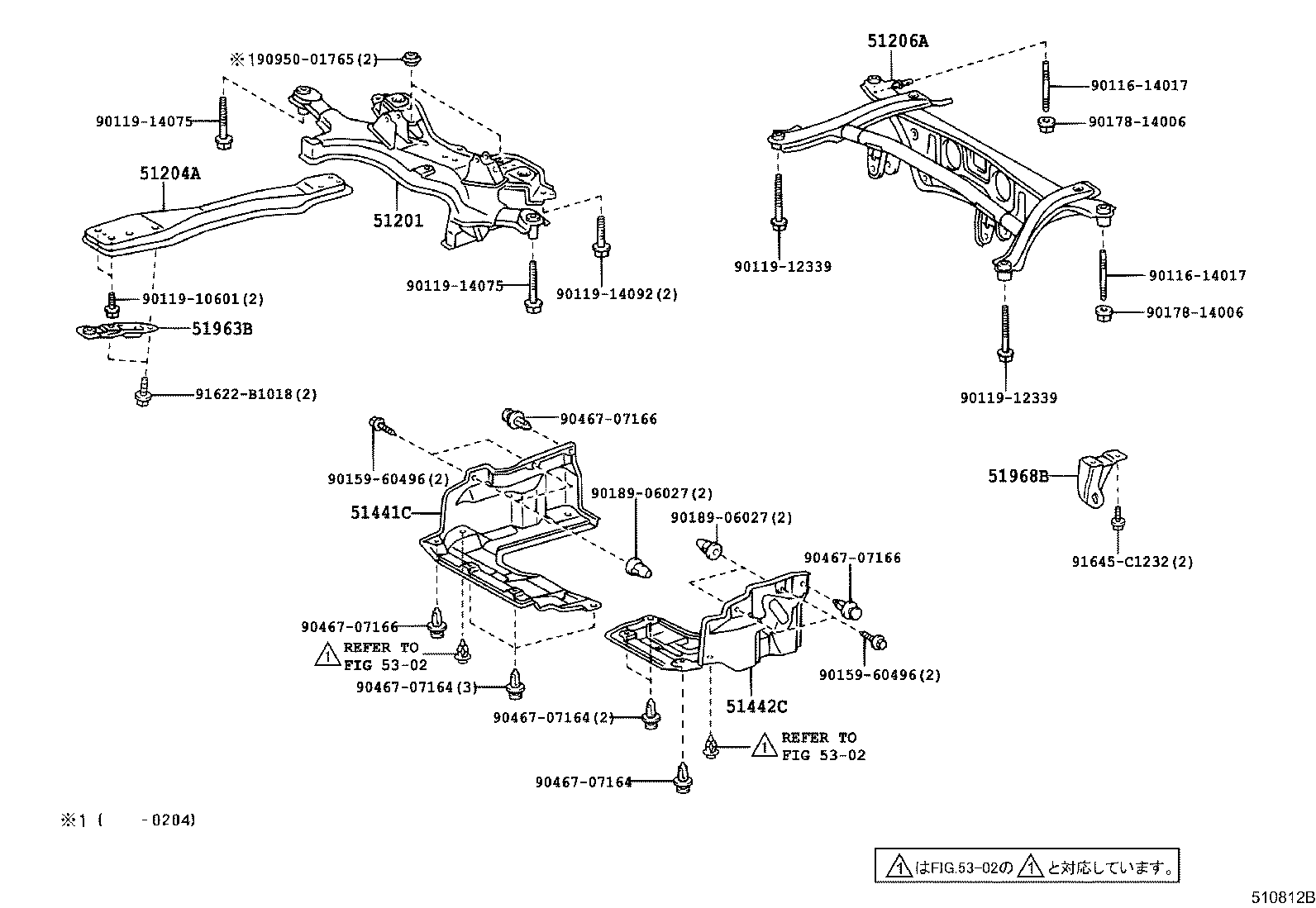

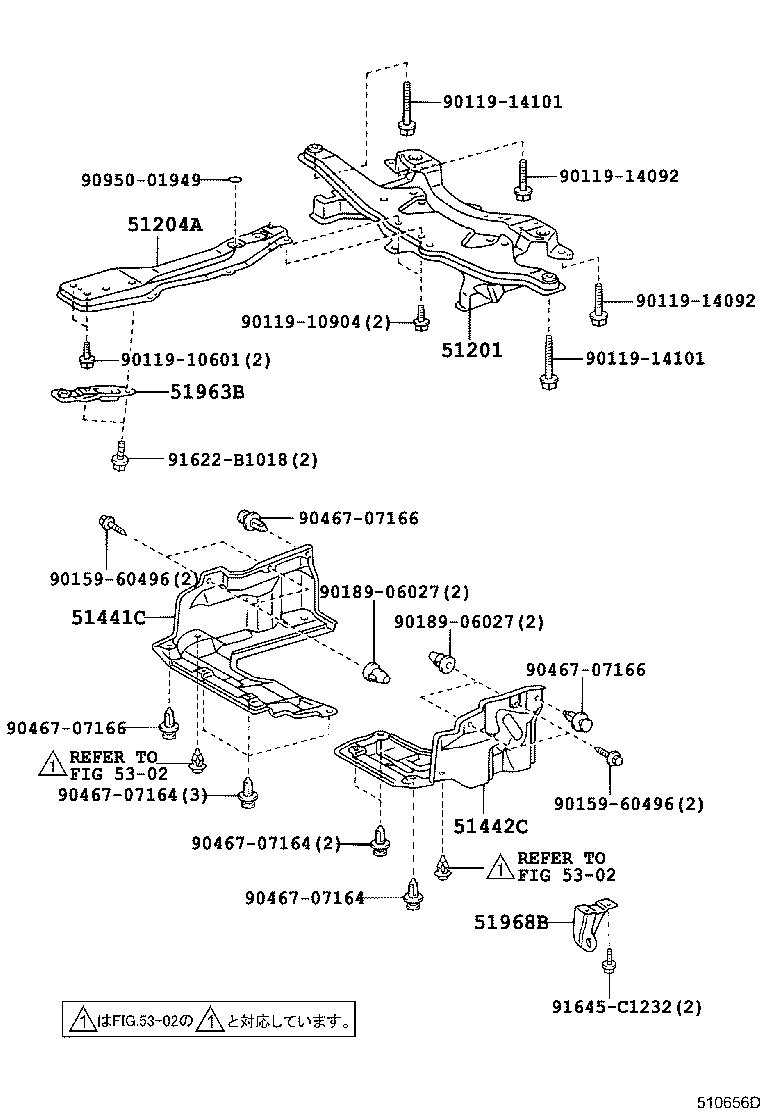

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51204A | Member Sub-assy, Engine Mounting, Center |
| 51206A | Member Sub-assy, Rear Suspension |
| 51441C | Cover, Engine Under, RH |
| 51442C | Cover, Engine Under, LH |
| 51963B | Hook, Transport, Front RH |
| 51968B | Hook, Transport, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
