Toyota Will VS

2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 1 illustrations

Illustrations

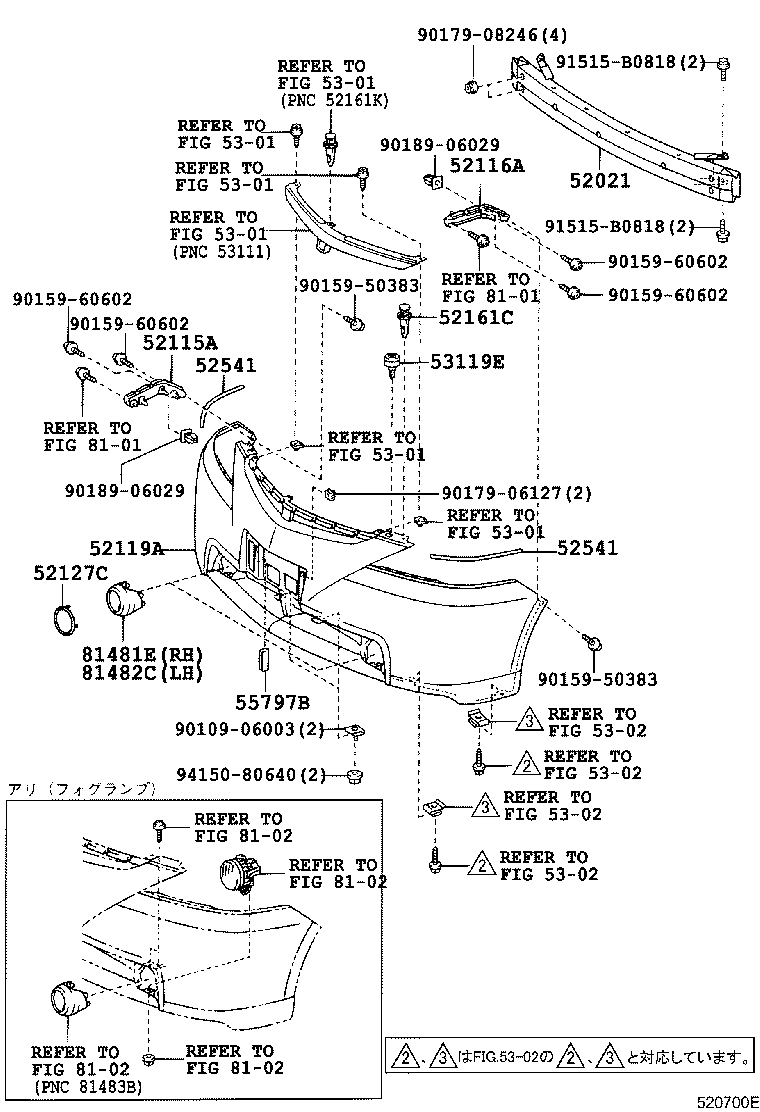

Figure 520700F 520700F 2001-04 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52161C Piece, Front Bumper
52541 Protector, Front Bumper
53119E Protector, Radiator Grille
55797B Seal, Bumper Front
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
