Toyota Will VS

2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

12 part groups · 1 illustrations

Illustrations

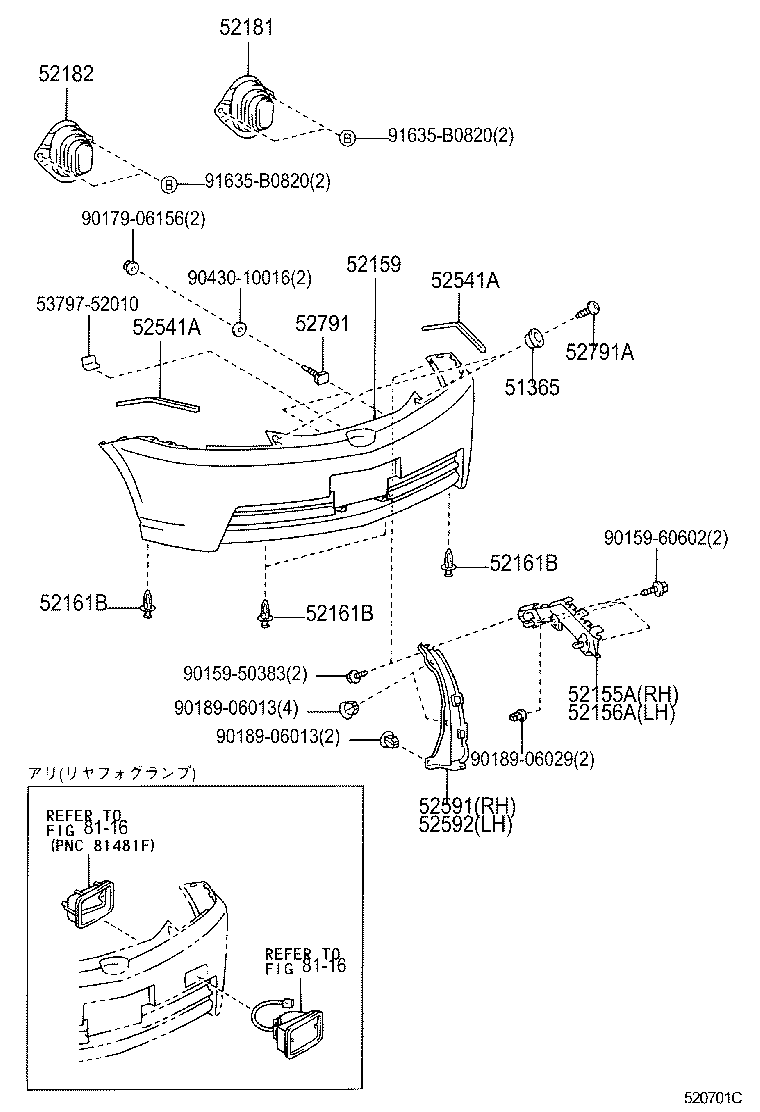

Figure 520701C 520701C 2001-04 → —

Part groups

PNCDescription
51365 Stopper, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52181 Arm, Rear Bumper, RH
52182 Arm, Rear Bumper, LH
52541A Protector, Rear Bumper
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52791 Bolt, Bumper Moulding Set, NO.1
52791A Bolt, Bumper Moulding Set, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
