Toyota Will VS
2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan
Discontinued model
Data version 2005-01
Instrument Panel & Glove Compartment

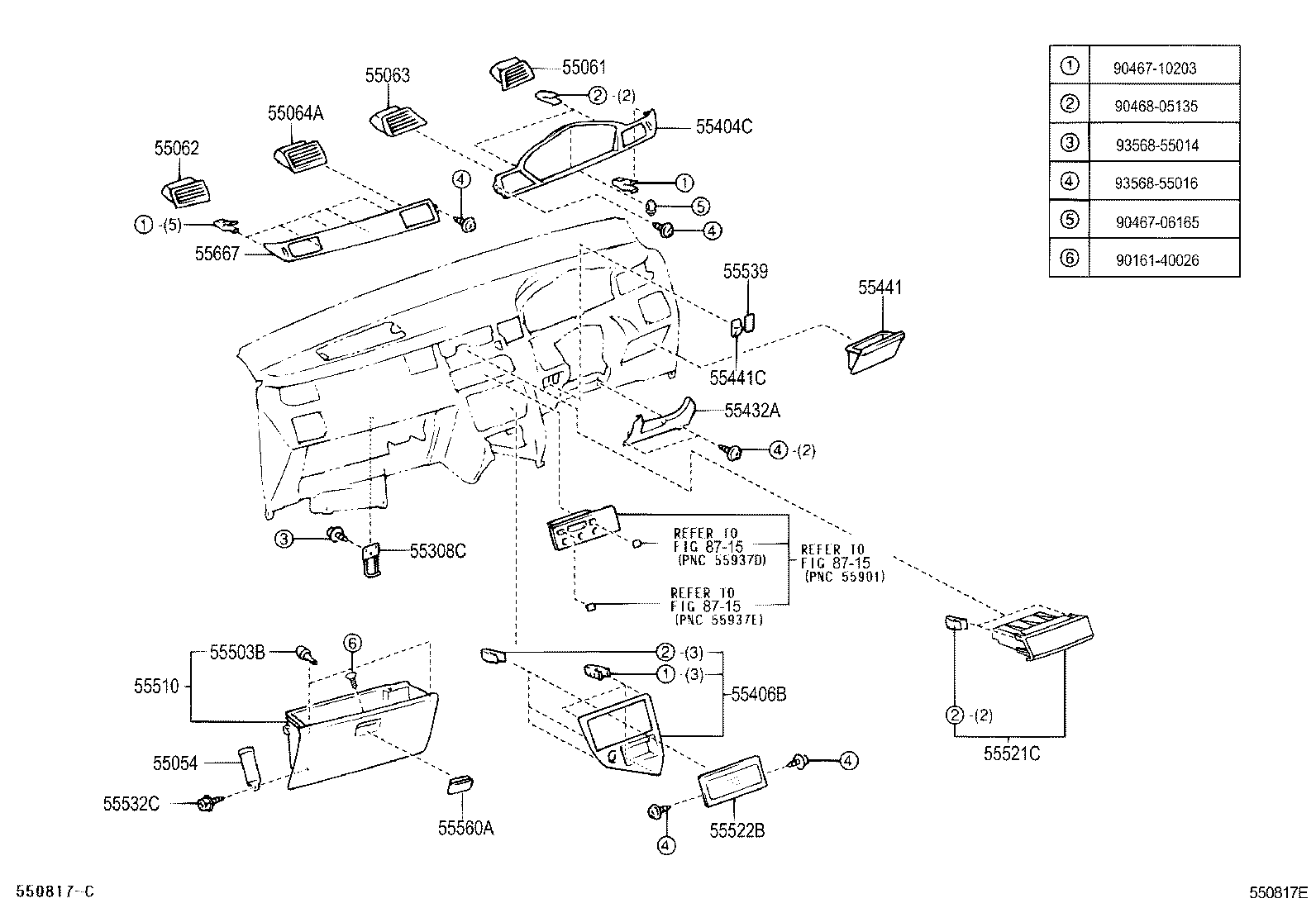

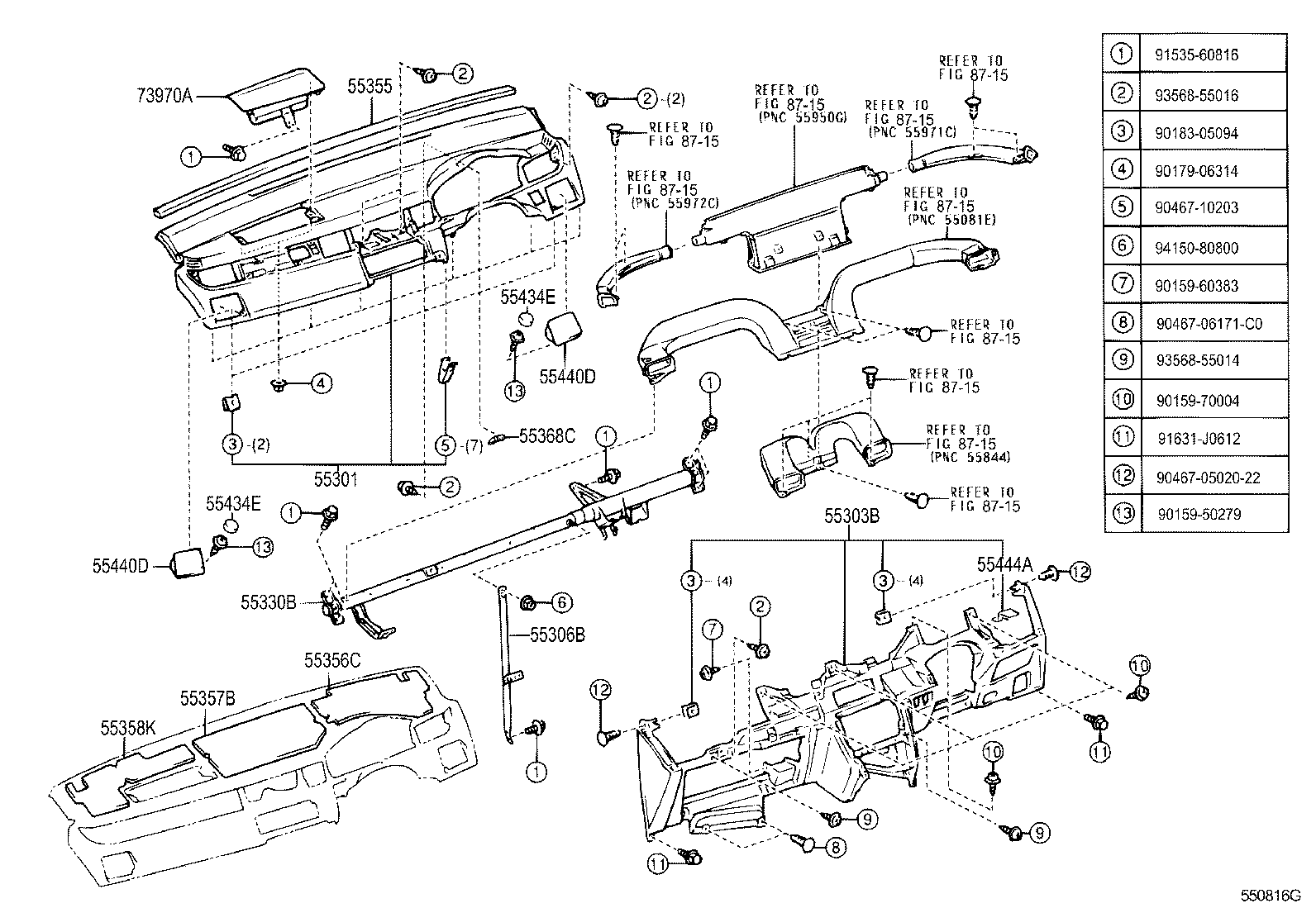

32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55062 | Register Sub-assy, Instrument Panel, N0.2 |
| 55063 | Register Sub-assy, Instrument, NO.3 |
| 55064A | Register Sub-assy, Instrument, NO.4 |
| 55301 | Panel Sub-assy, Instrument |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306B | Brace Sub-assy, Instrument Panel TO Cowl |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55368C | Bracket, Meter Mounting |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55434E | Cap |
| 55440D | Box Assy, Instrument Panel |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55444A | Spring, Instrument Panel Box |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55532C | Stopper, Glove Door |
| 55539 | Cover, Spare Switch Hole |
| 55560A | Lock Assy, Glove Compartment Door |
| 55667 | Garnish, Instrument Panel Register Bezel |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
