Toyota Will VS
2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan
Discontinued model
Data version 2005-01
Cowl Panel & Windshield Glass
18 part groups · 1 illustrations

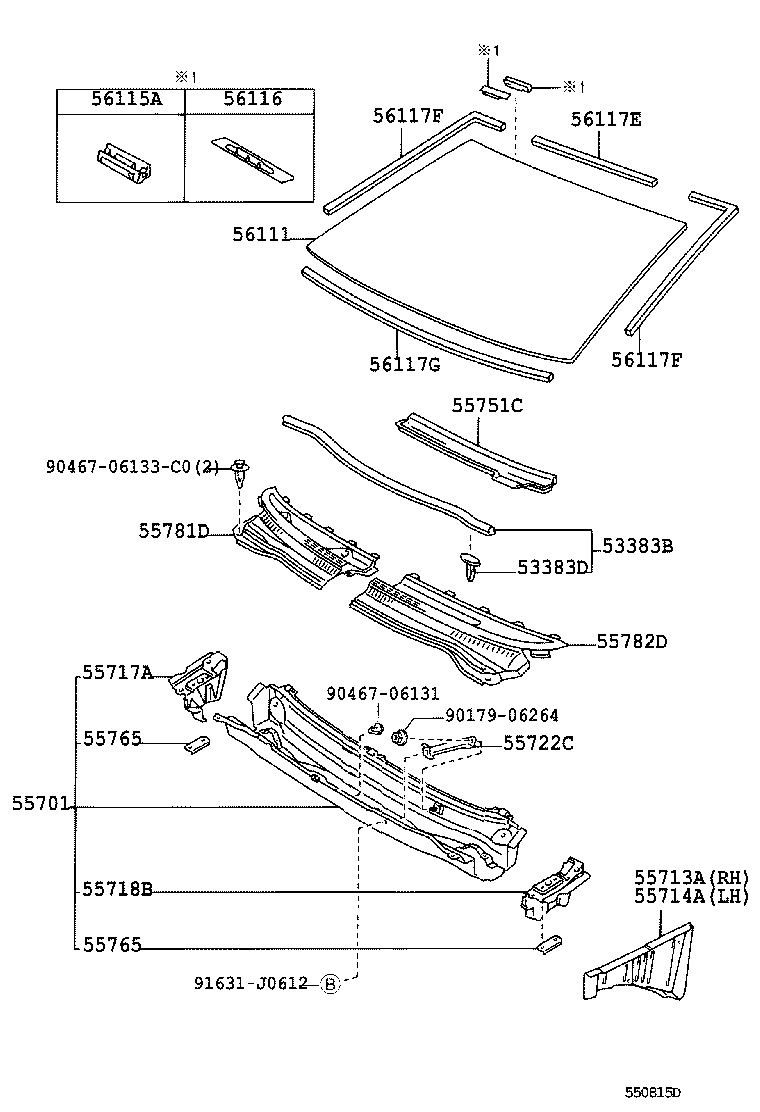

Illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53383D | Clip(FOR HOOD TO COWL TOP SEAL) |
| 55701 | Panel Sub-assy, Cowl |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |
| 55717A | Panel, Cowl Top Side, Inner RH |
| 55718B | Panel, Cowl Top Side, Inner LH |
| 55722C | Brace, Cowl Top TO Cowl, Inner |
| 55751C | Shield, Cowl Ventilator Splash |
| 55765 | Bracket, Hood Damper Mounting |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116 | Spacer, Windshield Glass |
| 56117E | Dam, Window Glass Adhesive |
| 56117F | Dam, Window Glass Adhesive |
| 56117G | Dam, Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
