Toyota Will VS
2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan
Discontinued model
Data version 2005-01

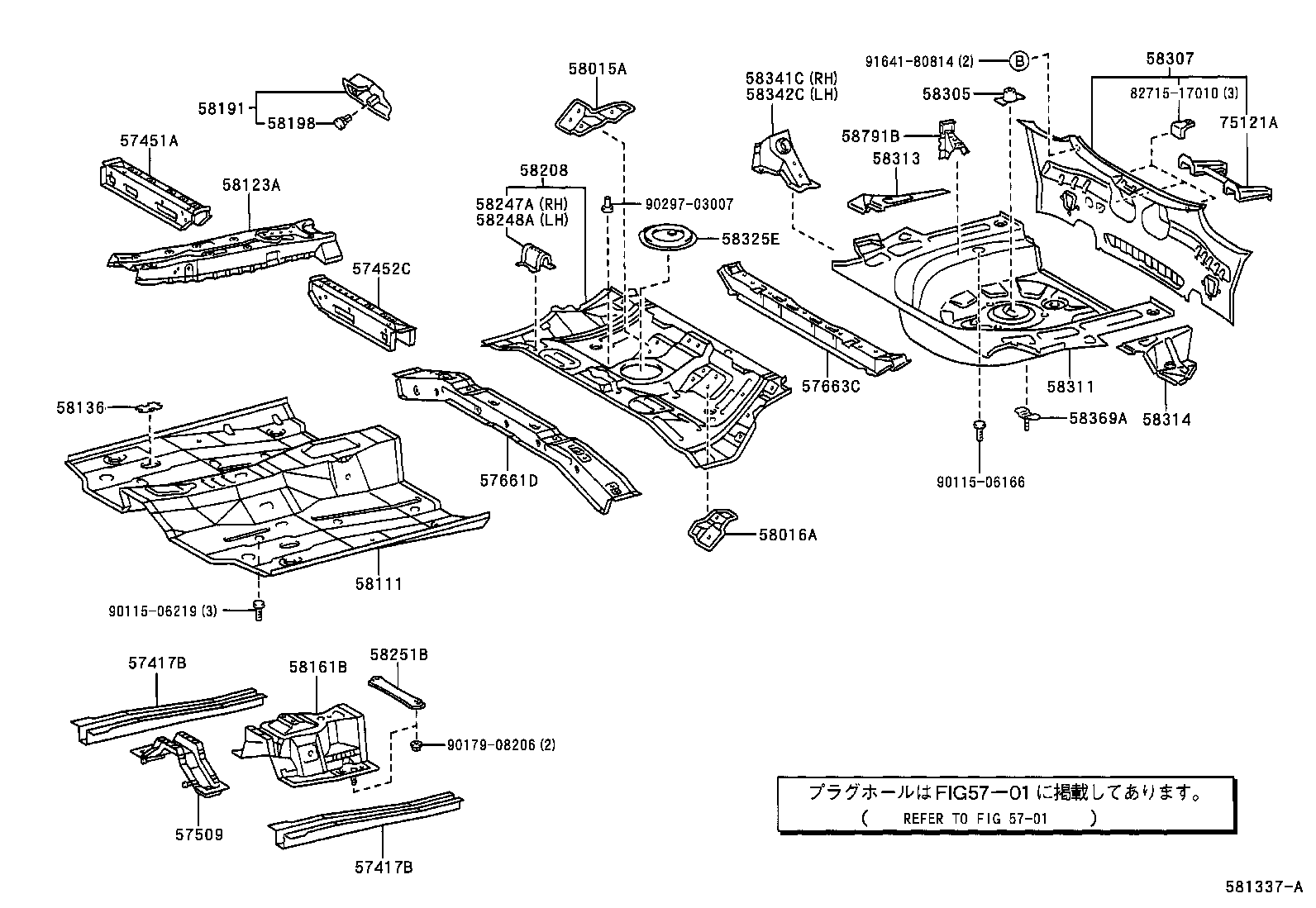

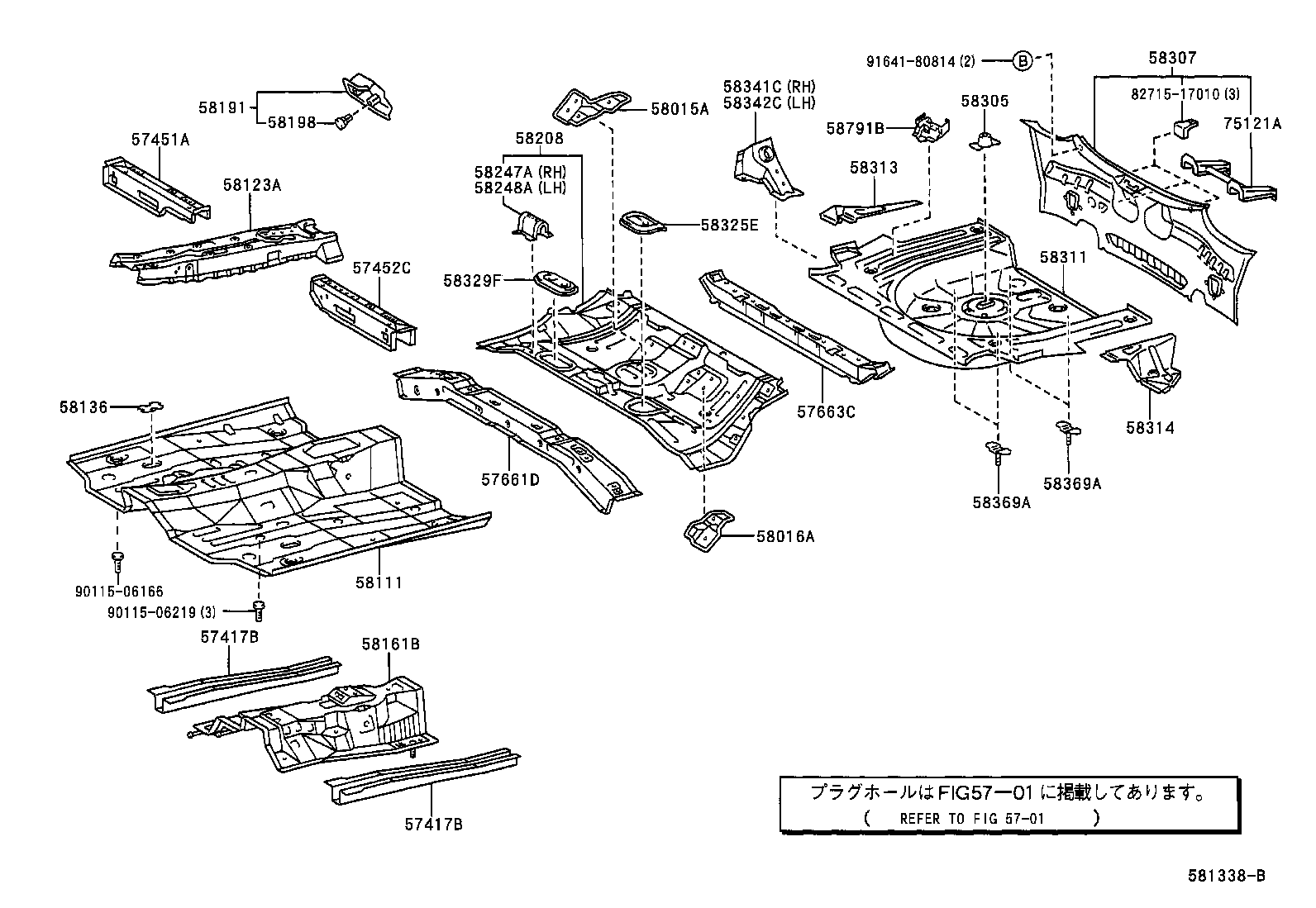

Floor Pan & Lower Back Panel
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57417B | Reinforcement, Front Floor Under |
| 57451A | Member, Front Floor Cross, RH |
| 57452C | Member, Front Floor Cross, LH |
| 57509 | Reinforcement Sub-assy, Front Floor, Center |
| 57661D | Member, Rear Floor Cross, Front |
| 57663C | Member, Rear Floor Cross, Center |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58016A | Reinforce Sub-assy, Belt Anchor, NO.3 LH |
| 58111 | Pan, Front Floor |
| 58123A | Support, Shift & Select Lever |
| 58136 | Cover, Front Floor Hole |
| 58161B | Reinforcement, Belt Anchor TO Floor Pan |
| 58191 | Footrest, Front Floor |
| 58198 | Clip, Footrest |
| 58208 | Pan, Center Floor |
| 58247A | Reinforcement, Rear Seat Cushion Hinge, RH |
| 58248A | Reinforcement, Rear Seat Cushion Hinge, LH |
| 58251B | Brace, Floor Panel, Front |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58341C | Bracket, Rear Absorber Mounting, NO.1 RH |
| 58342C | Bracket, Rear Absorber Mounting, NO.1 LH |
| 58369A | Bracket, Fuel Tube, NO.3 |
| 58791B | Carrier, Jack |
| 75121A | Bracket, Rear License Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
