Toyota Will VS
2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan
Discontinued model
Data version 2005-01
Deck Board & Deck Trim Cover
18 part groups · 1 illustrations

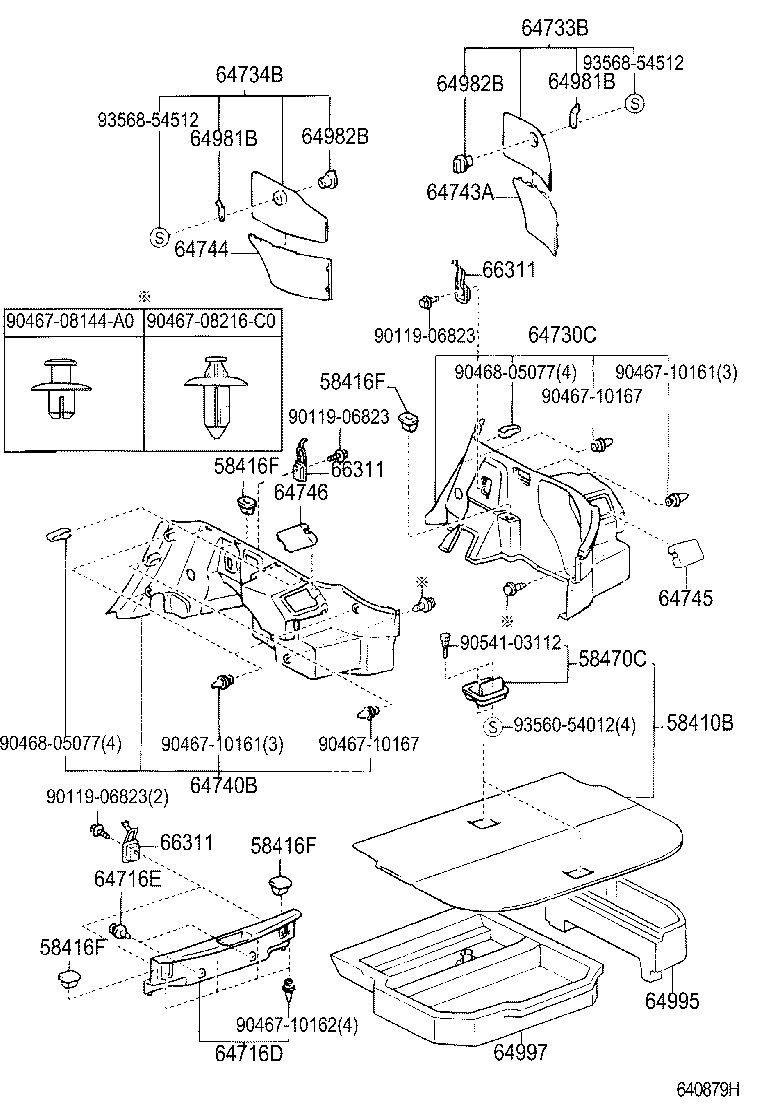

Illustrations
Part groups
| PNC | Description |
|---|---|
| 58410B | Board Assy, Deck |
| 58416F | Bracket, Deck Board, NO.1 |
| 58470C | Handle Assy, Deck Board |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730C | Board, Deck Trim Side, RH |
| 64733B | Board, Deck Trim Side, Upr RH |
| 64734B | Board, Deck Trim Side, Upper LH |
| 64740B | Board, Deck Trim Side, LH |
| 64743A | Board, Deck Trim Side, Lower RH |
| 64744 | Board, Deck Trim Side, Lower LH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64981B | Stopper, Deck Side Trim Lid |
| 64982B | Knob, Deck Side Trim Lid |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
| 66311 | Hook, Rope |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
