Toyota Will VS

2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

26 part groups · 3 illustrations

Illustrations

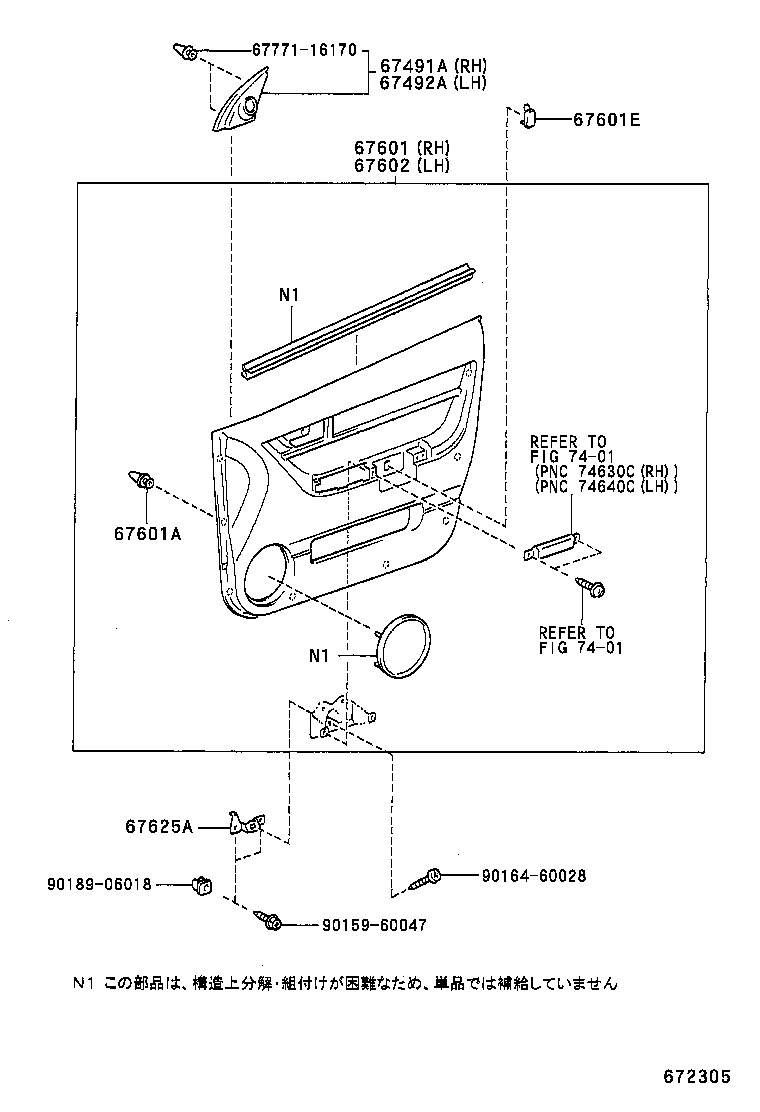

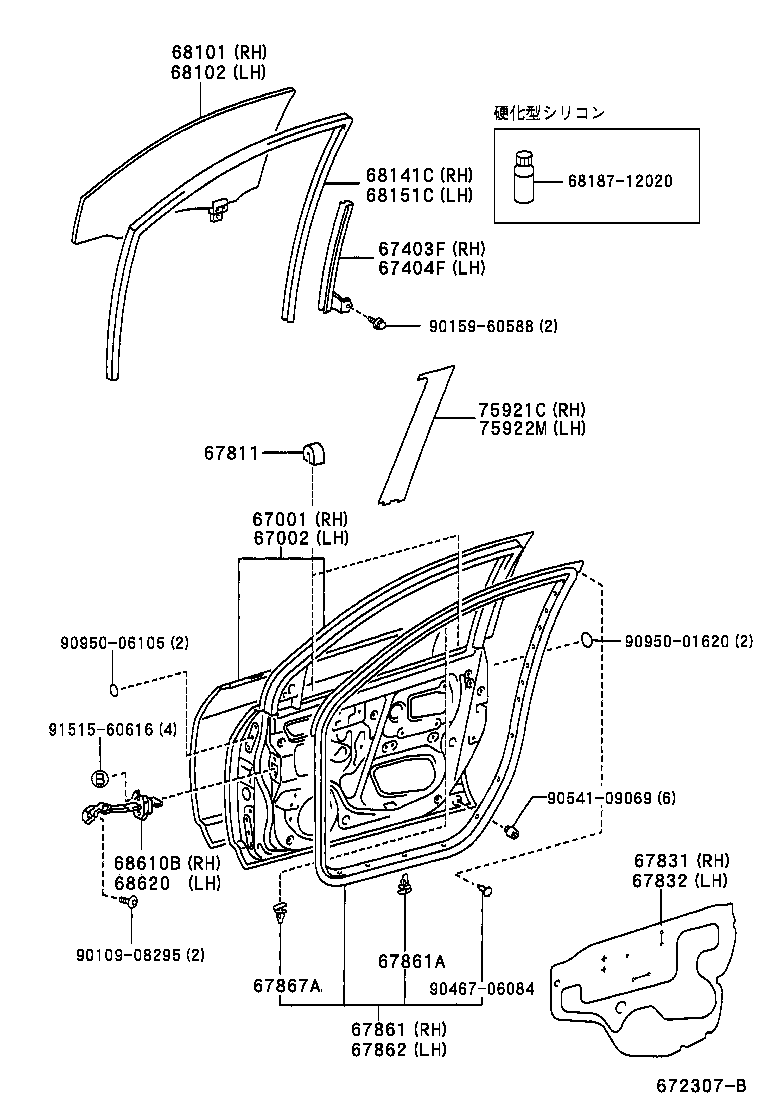

Figure 672305 672305 2001-04 → — Figure 672307B 672307B 2001-04 → — Figure 672304A 672304A 2001-04 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601A Retainer(FOR FRONT DOOR TRIM BOARD)
67601E Cap(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67625A Bracket, Front Door Trim, NO.1
67811 Pad, Front Door Silencer
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67861A Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862 Weatherstrip, Front Door, LH
67867A Clip, Door Weatherstrip(FOR FRONT DOOR)
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
75921C Tape, Black Out, NO.1 RH
75922M Tape, Black Out, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
