Toyota Will VS
2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan
Discontinued model
Data version 2005-01
Side Moulding
10 part groups · 1 illustrations

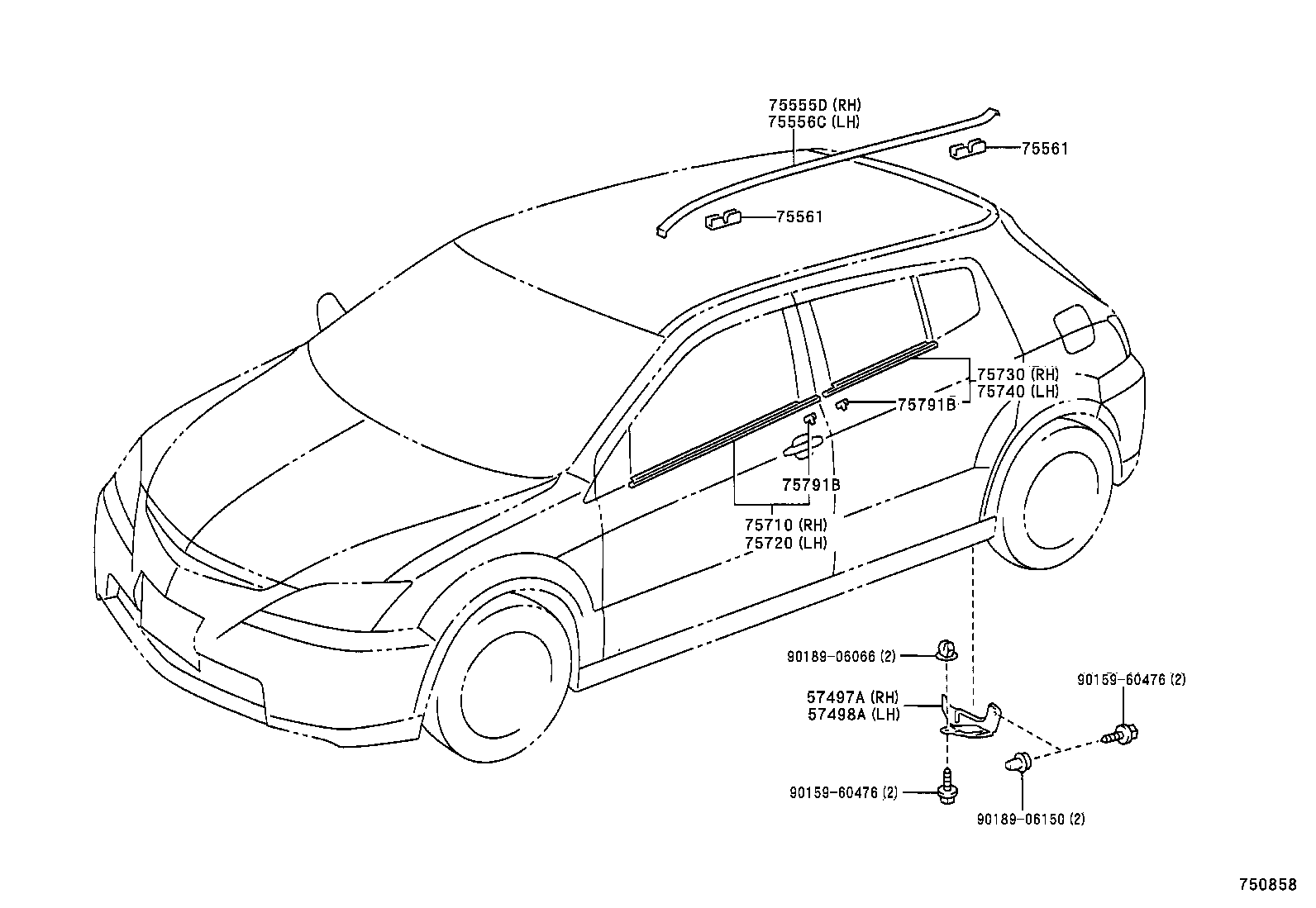

Illustrations
Part groups
| PNC | Description |
|---|---|
| 57497A | Shield, Rear Floor Housing |
| 57498A | Shield, Rear Floor Housing, NO.2 |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75791B | Clip, Belt Moulding Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
