Toyota Will VS

2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

11 part groups · 1 illustrations

Illustrations

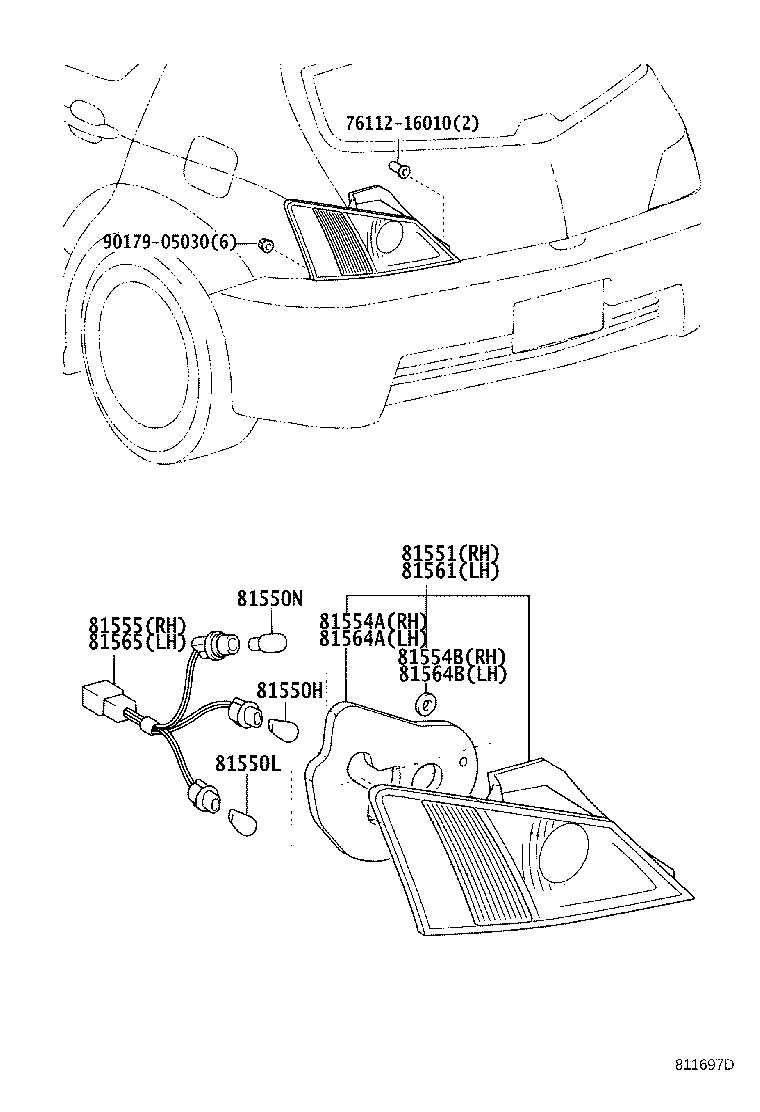

Figure 811697D 811697D 2001-04 → —

Part groups

PNCDescription
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551 Lens, Rear Combination Lamp, RH
81554A Gasket, Rear Combination Lamp Body, NO.1 RH
81554B Gasket, Rear Combination Lamp Body, NO.2 RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561 Lens, Rear Combination Lamp, LH
81564A Gasket, Rear Combination Lamp Body, NO.1 LH
81564B Gasket, Rear Combination Lamp Body, NO.2 LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
