Toyota Will VS
2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan
Discontinued model
Data version 2005-01
Switch & Relay & Computer
64 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |

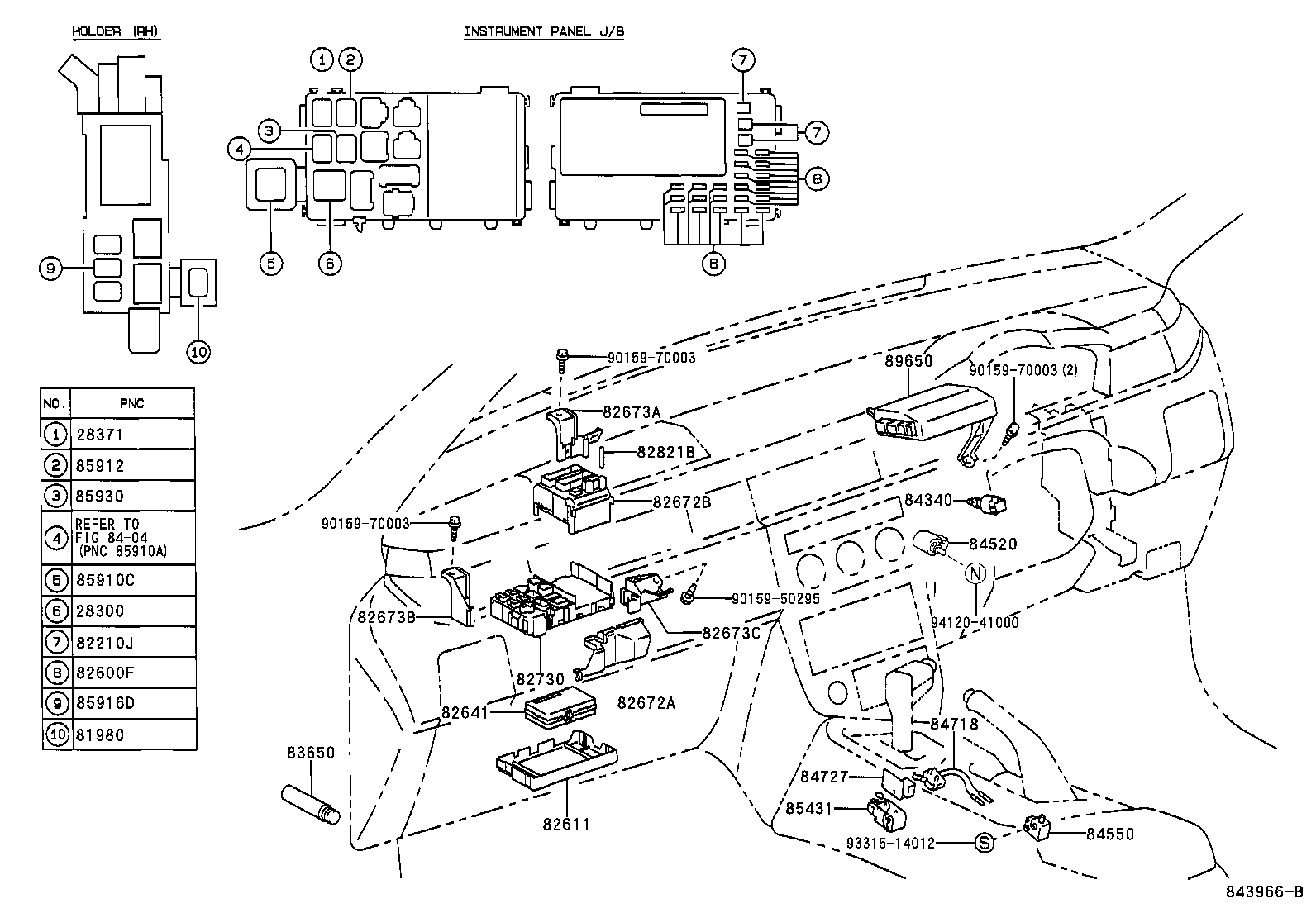

| 82730 | Block Assy, Instrument Panel Junction |

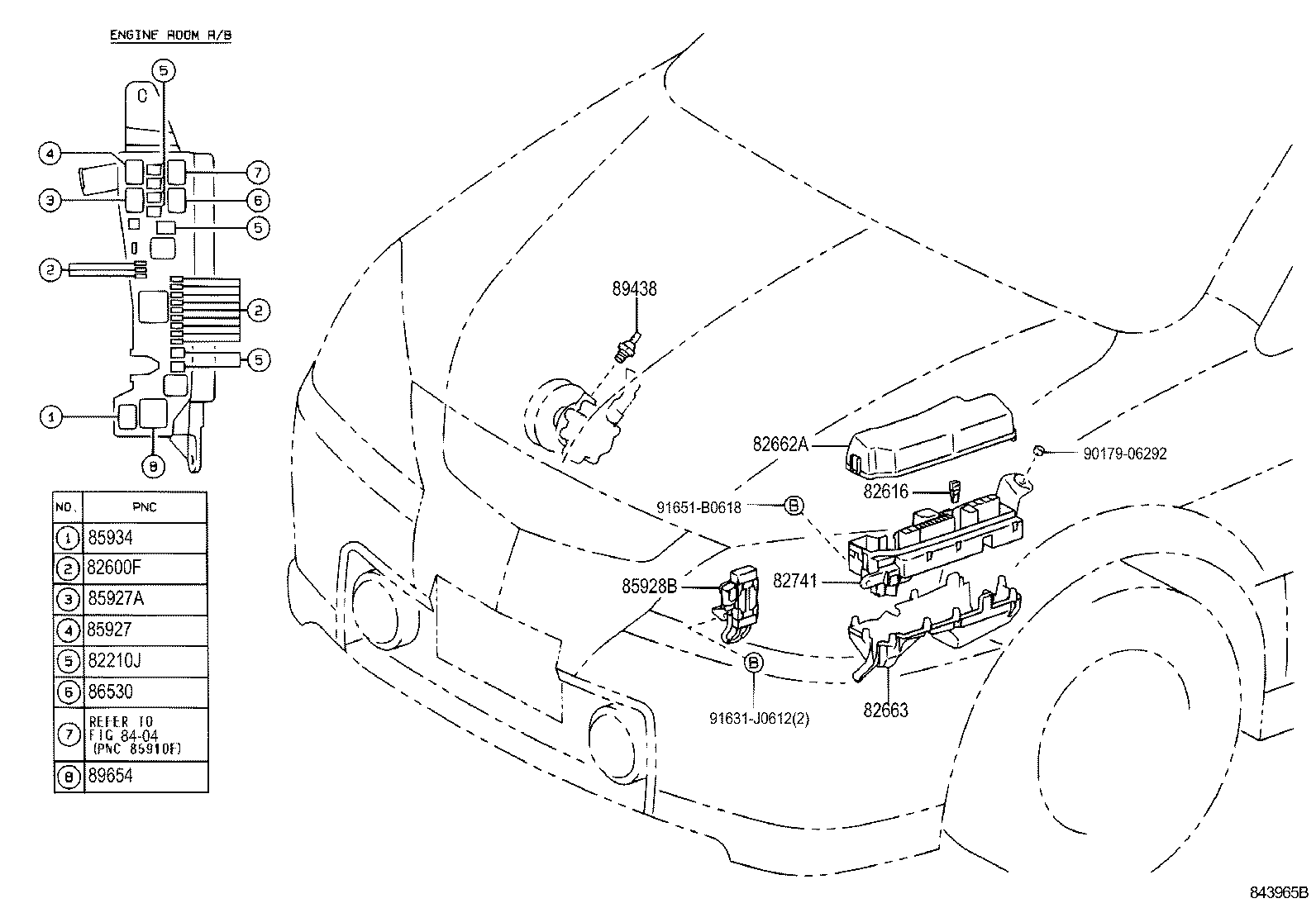

| 82741 | Block, Engine Room Relay |
| 82821B | Cover, Connector |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |

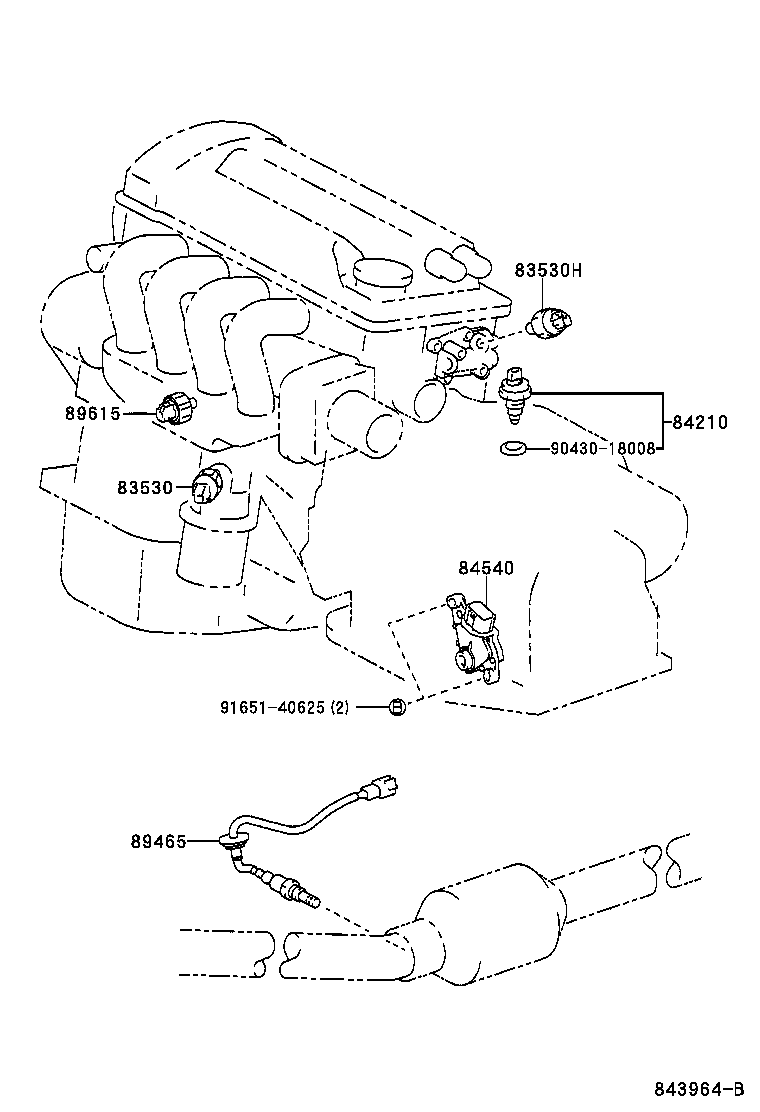

| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83530H | Switch Assy, Oil Pressure |
| 83650 | Fusee |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84306 | Cable Sub-assy, Spiral |
| 84340 | Switch Assy, Stop Lamp |

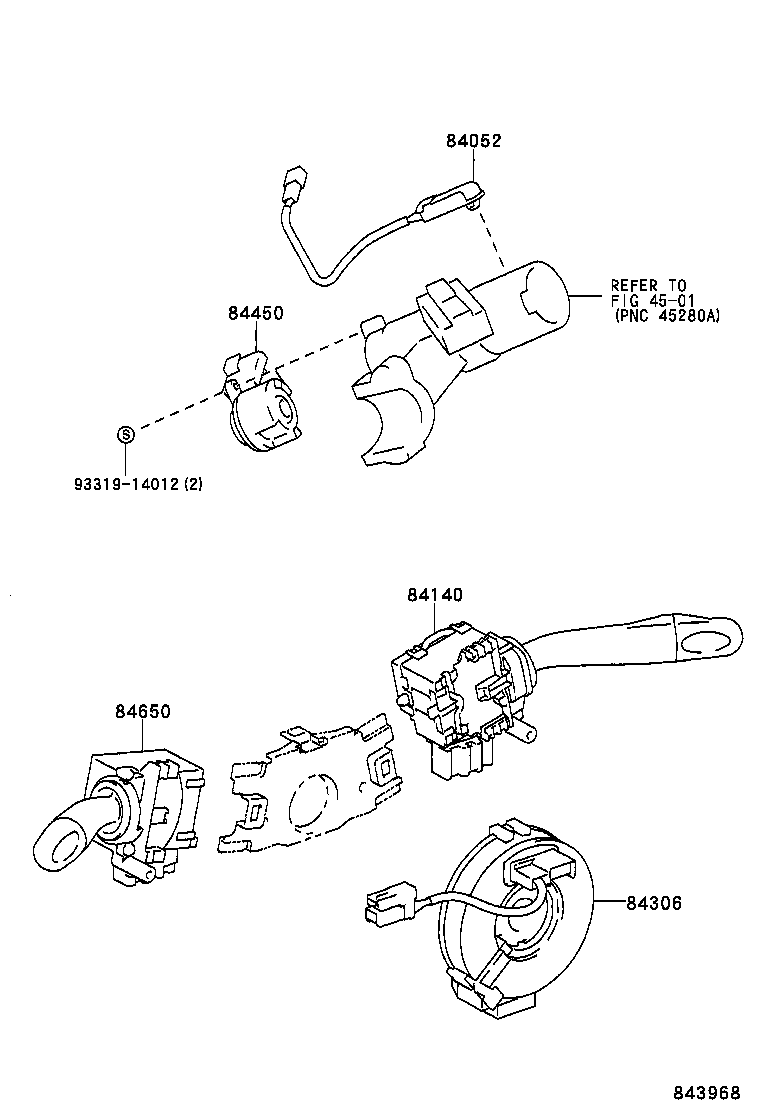

| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84718 | Switch, Transmission Shift Main |
| 84727 | Switch, Shift Lock Control |

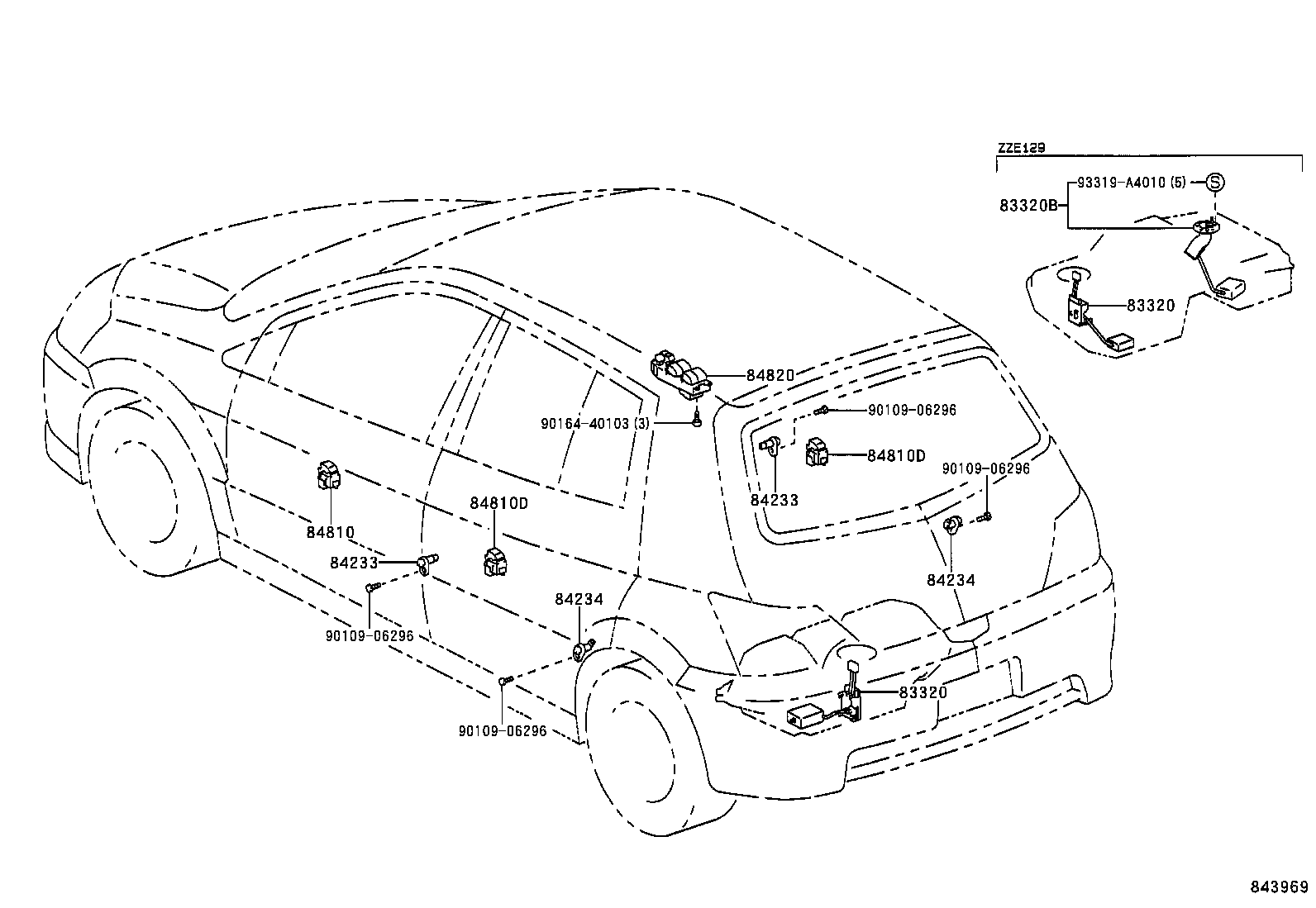

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 85431 | Solenoid, Shift Lock |

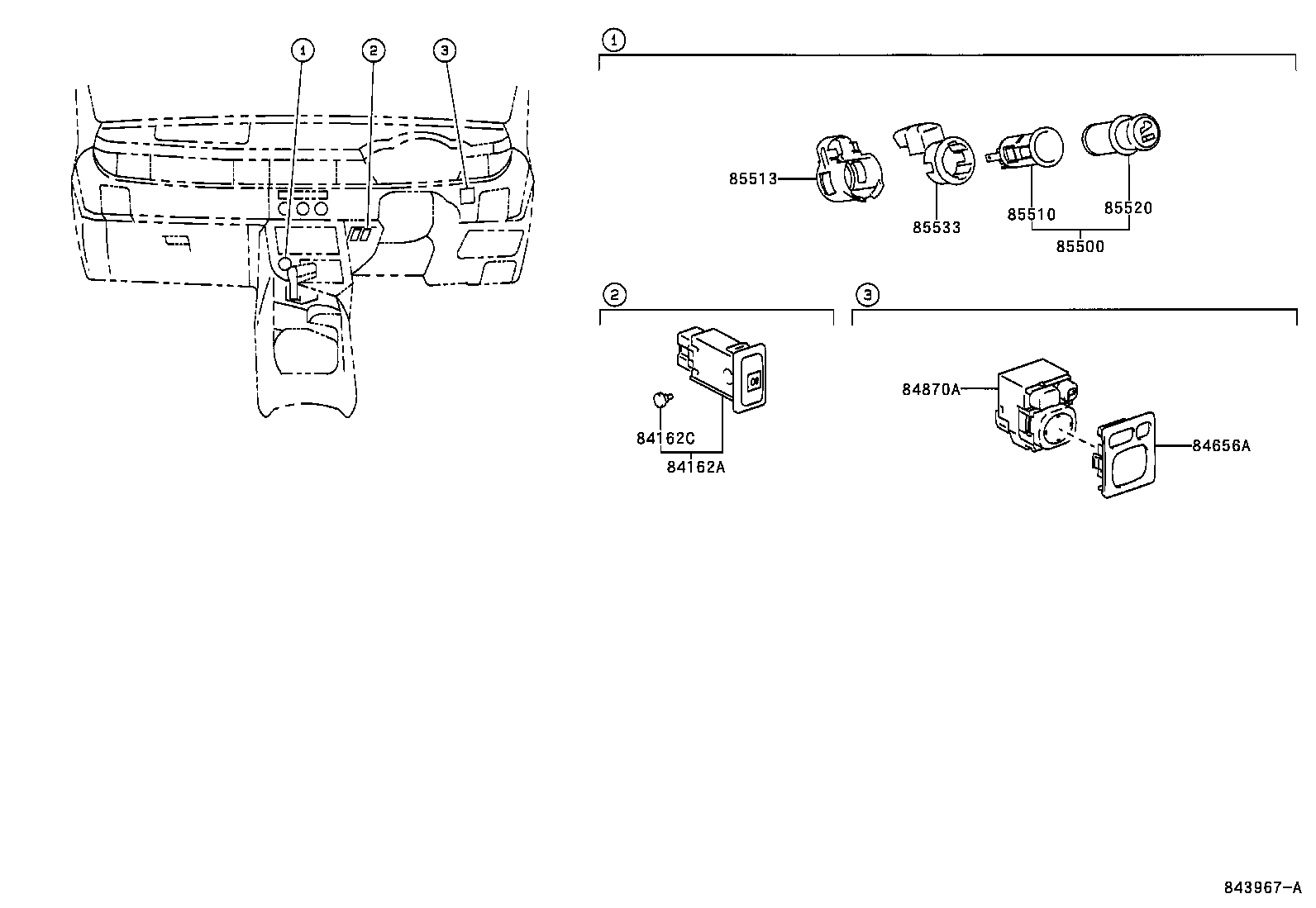

| 85500 | Lighter Assy, Cigarette |
| 85510 | Socket & Retainer Assy, Cigarlighter |
| 85513 | Cover, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85928B | Resistor, Cooling Fan |
| 85930 | Relay Assy, Power Window |
| 85934 | Relay, Magnet-clutch |
| 86530 | Relay Assy, Horn |
| 89438 | Switch, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |

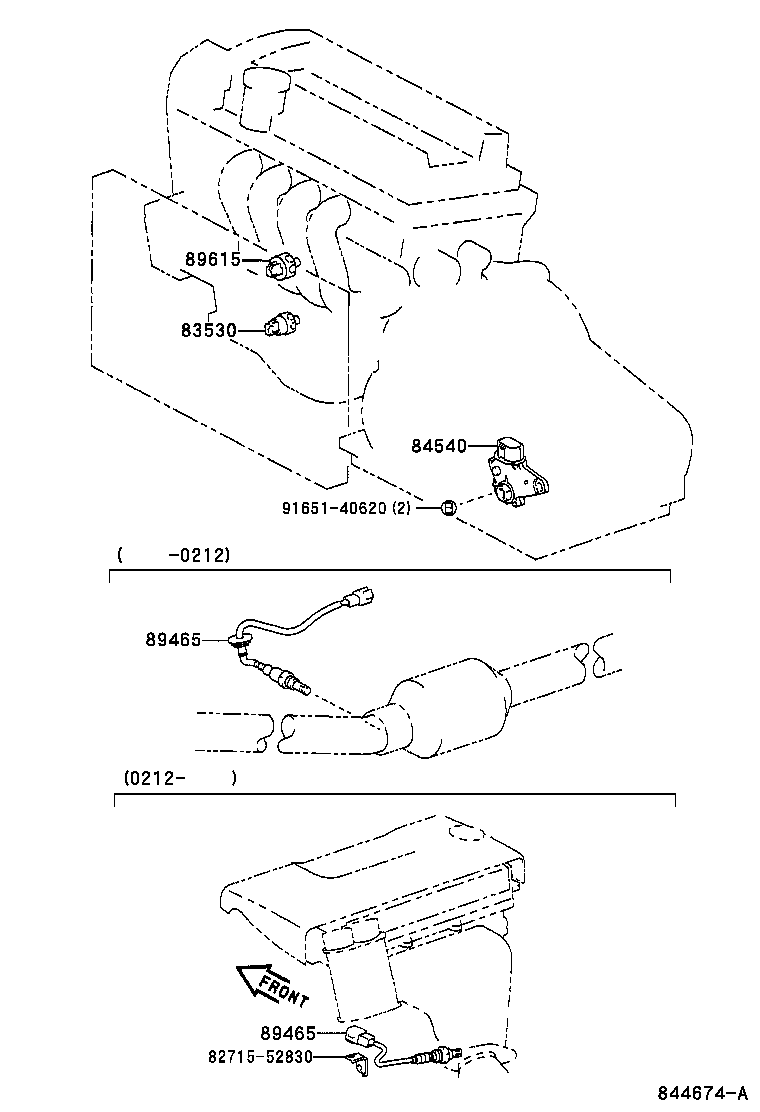

| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89654 | Relay, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
