Toyota Will VS

2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

4 part groups · 2 illustrations

Illustrations

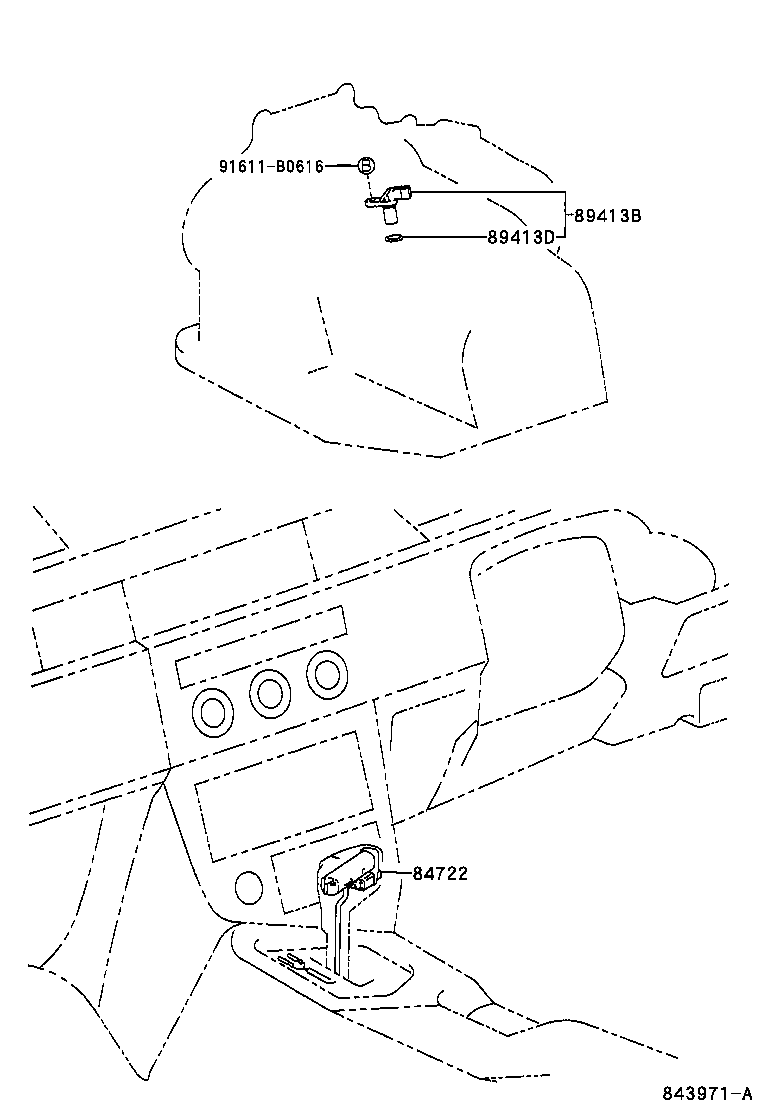

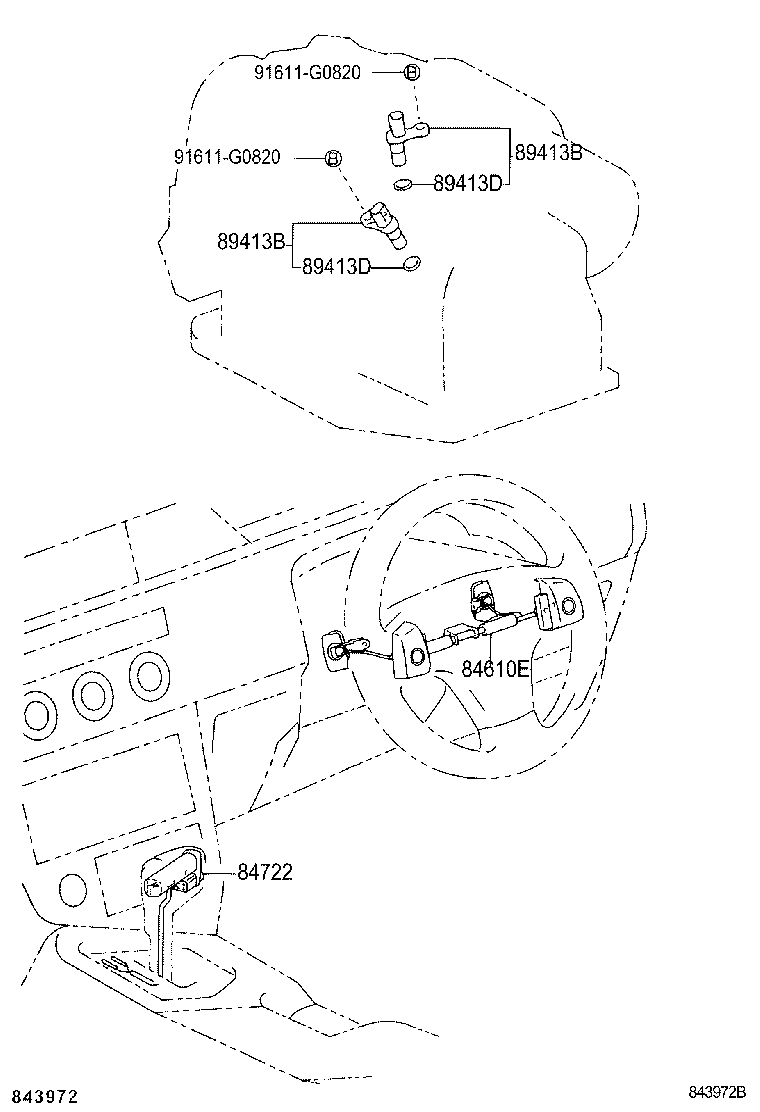

Figure 843971A 843971A 2001-04 → 2004-04 Figure 843972B 843972B 2001-04 → 2004-04

Part groups

PNCDescription
84610E Switch Assy, Transmission Shift, UP & Down
84722 Switch, Transmission Control
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
