Toyota Will VS

2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

10 part groups · 1 illustrations

Illustrations

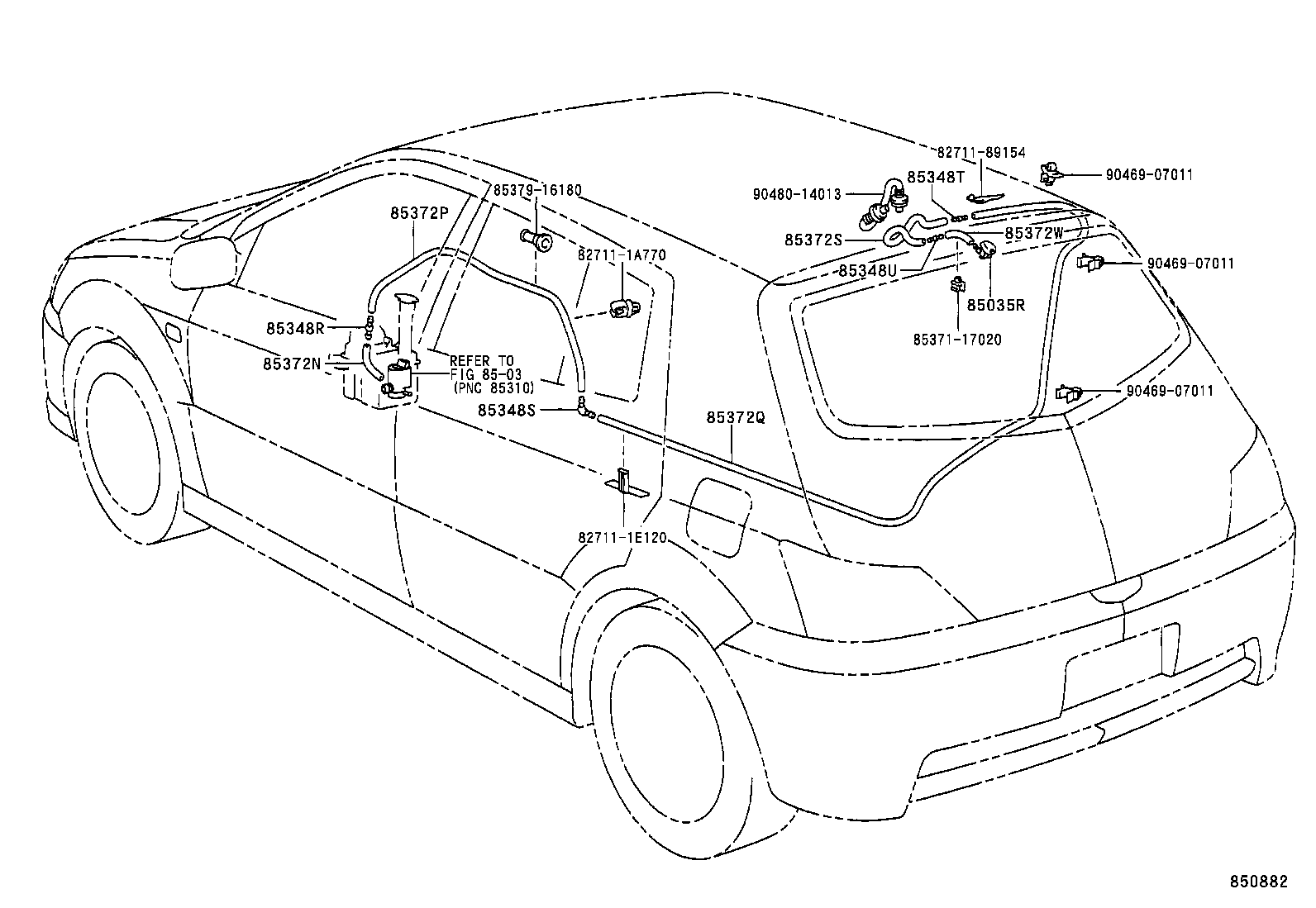

Figure 850882 850882 2001-04 → —

Part groups

PNCDescription
85035R Nozzle Sub-assy, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85372S Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
85372W Hose, Rear Washer (FROM JOINT TO JOINT), NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
