Toyota Will VS

2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

5 part groups · 1 illustrations

Illustrations

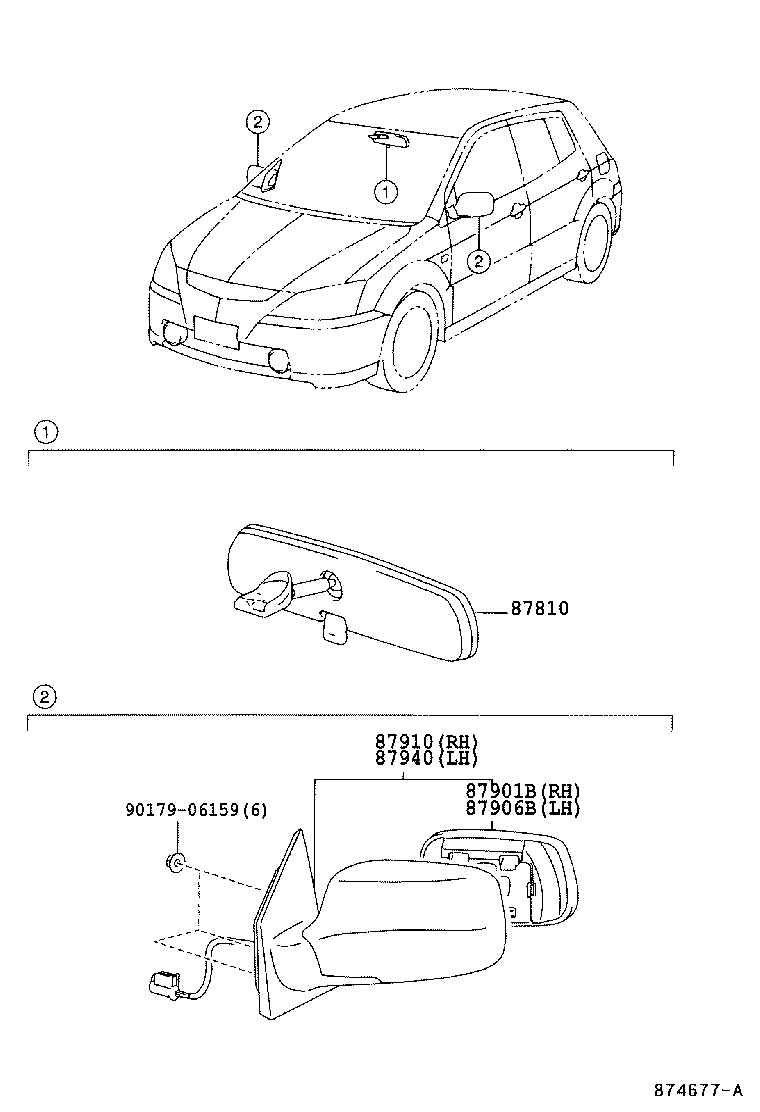

Figure 874677B 874677B 2001-04 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87940 Mirror Assy, Outer Rear View, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
