Toyota Will VS
2001-04 → 2004-04 · chassis NZE127,ZZE12# · catalogue 159110 · Japan
Discontinued model
Data version 2005-01
Heating & Air Conditioning - Cooler Piping
7 part groups · 1 illustrations

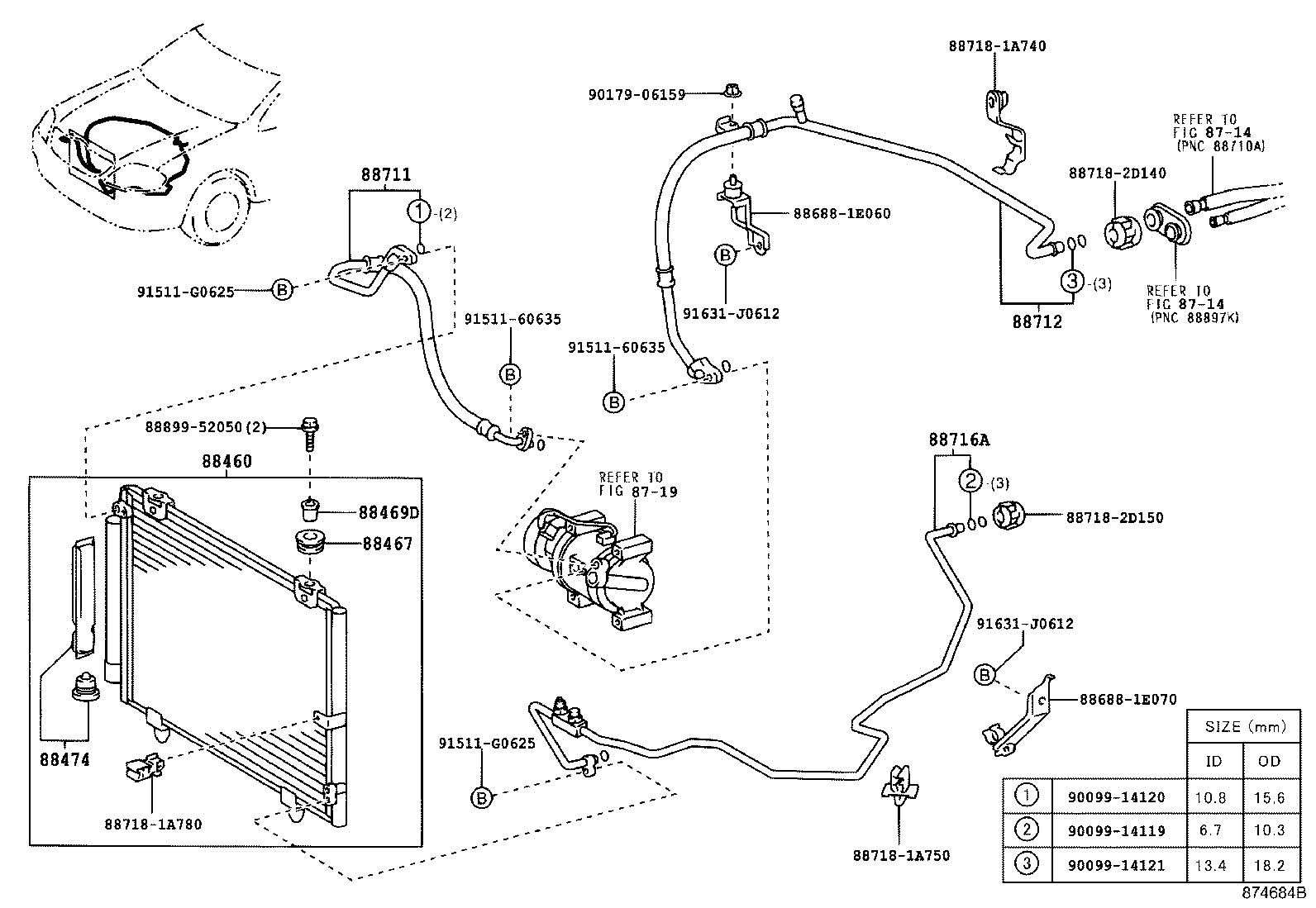

Illustrations
Part groups
| PNC | Description |
|---|---|
| 88460 | Condenser Assy, Cooler |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88469D | Collar, Condenser Bracket, NO.1 |
| 88474 | Dryer, Cooler |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
