Toyota Corolla Levin
1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan
Discontinued model
Data version 1987-11

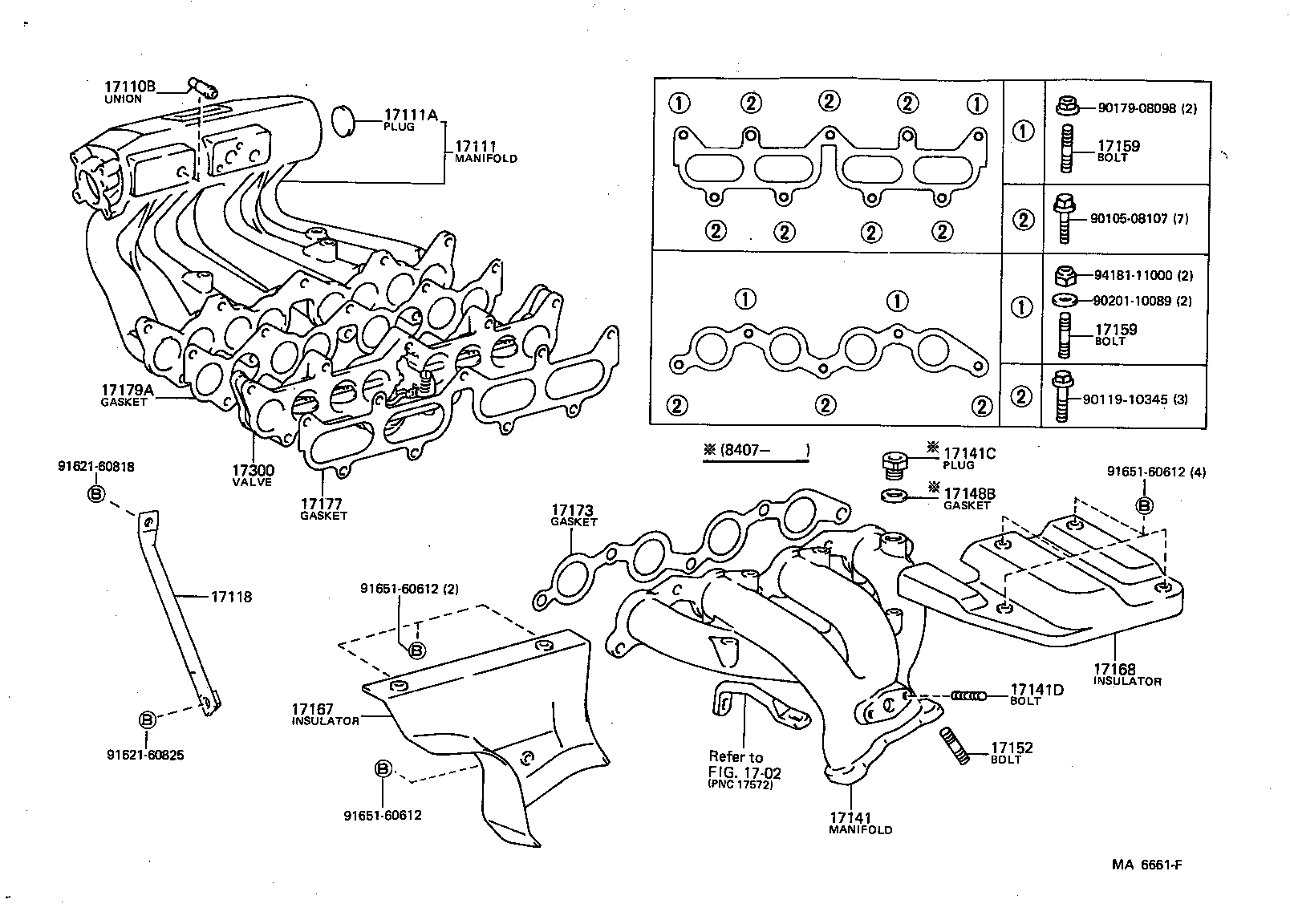

Manifold
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17110B | Union(FOR VENTILATION HOSE TO MANIFOLD) |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17118 | Stay, Manifold |
| 17141 | Manifold, Exhaust |
| 17141C | Plug, W/Head Straight Screw |
| 17141D | Bolt, Stud(FOR OXYGEN SENSOR) |
| 17148B | Gasket, Egr Inlet |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17300 | Valve Assy, Intake Air Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
