Toyota Corolla Levin

1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

22 part groups · 5 illustrations

Illustrations

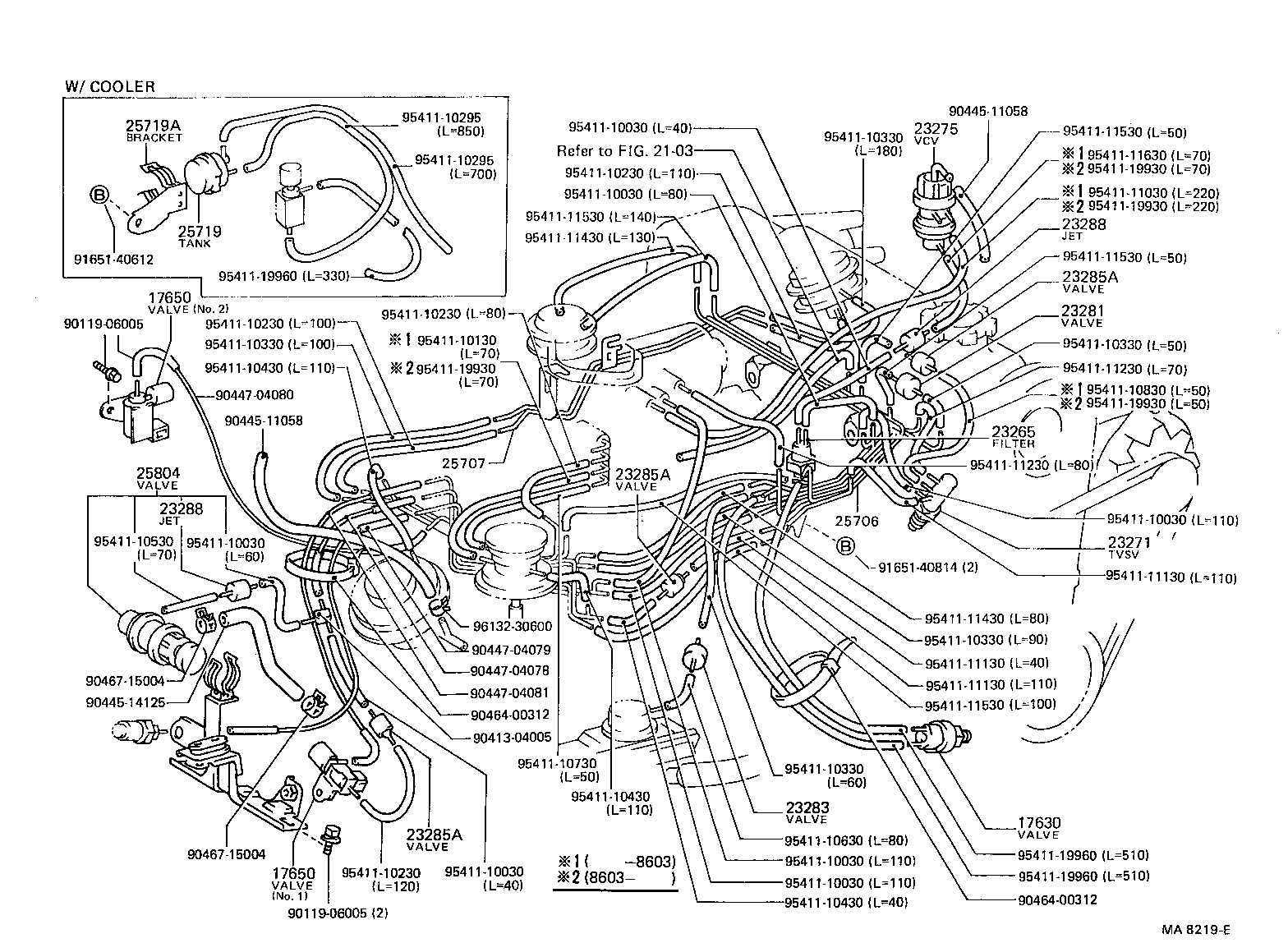

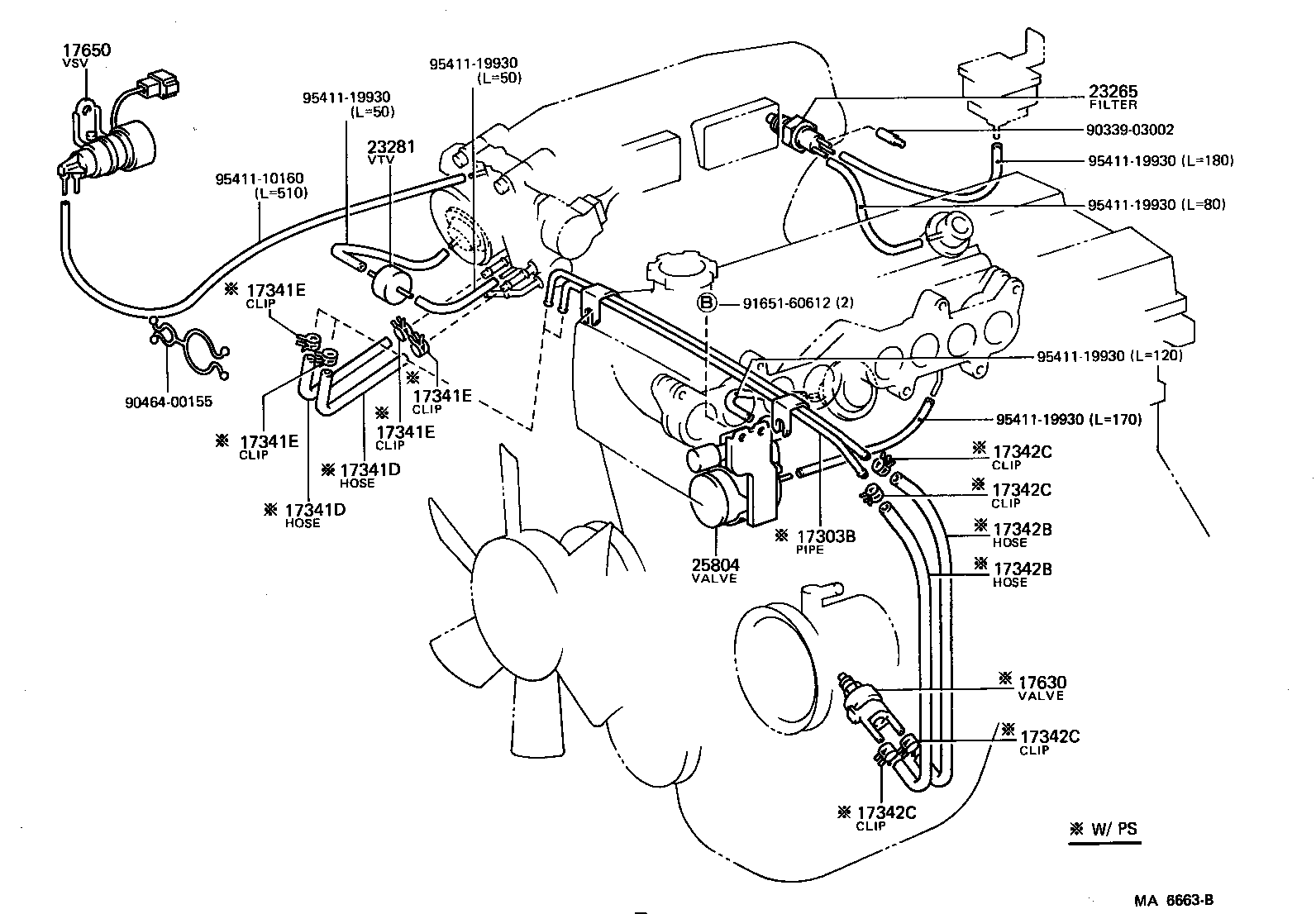

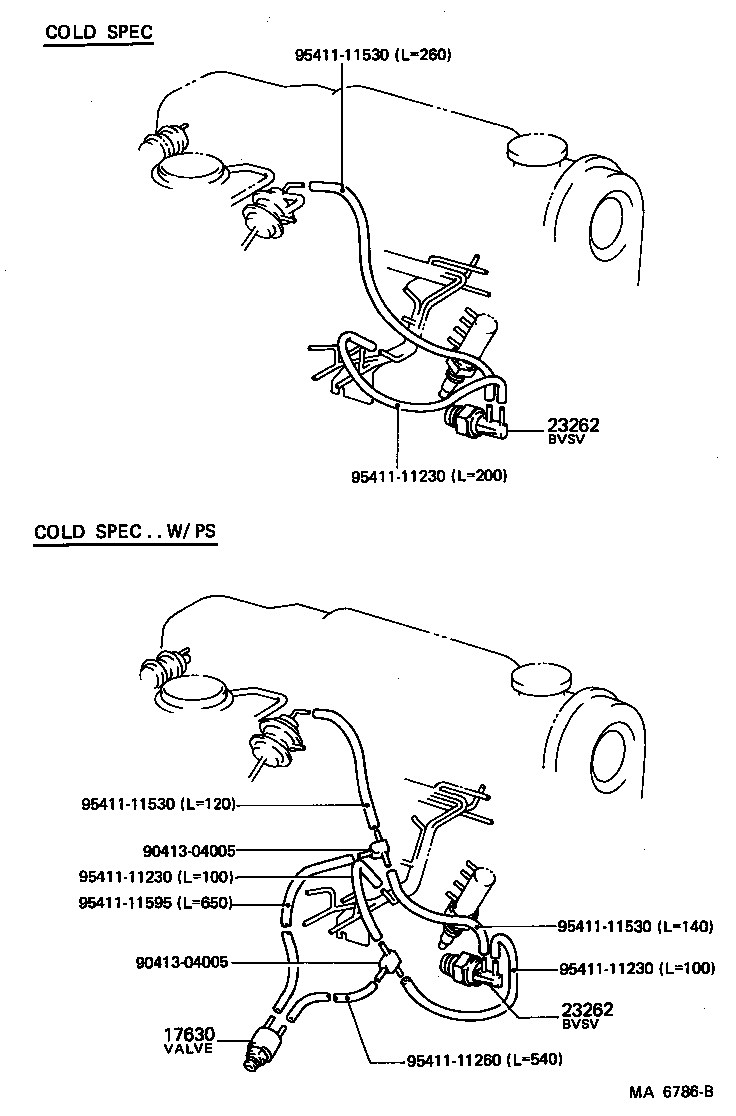

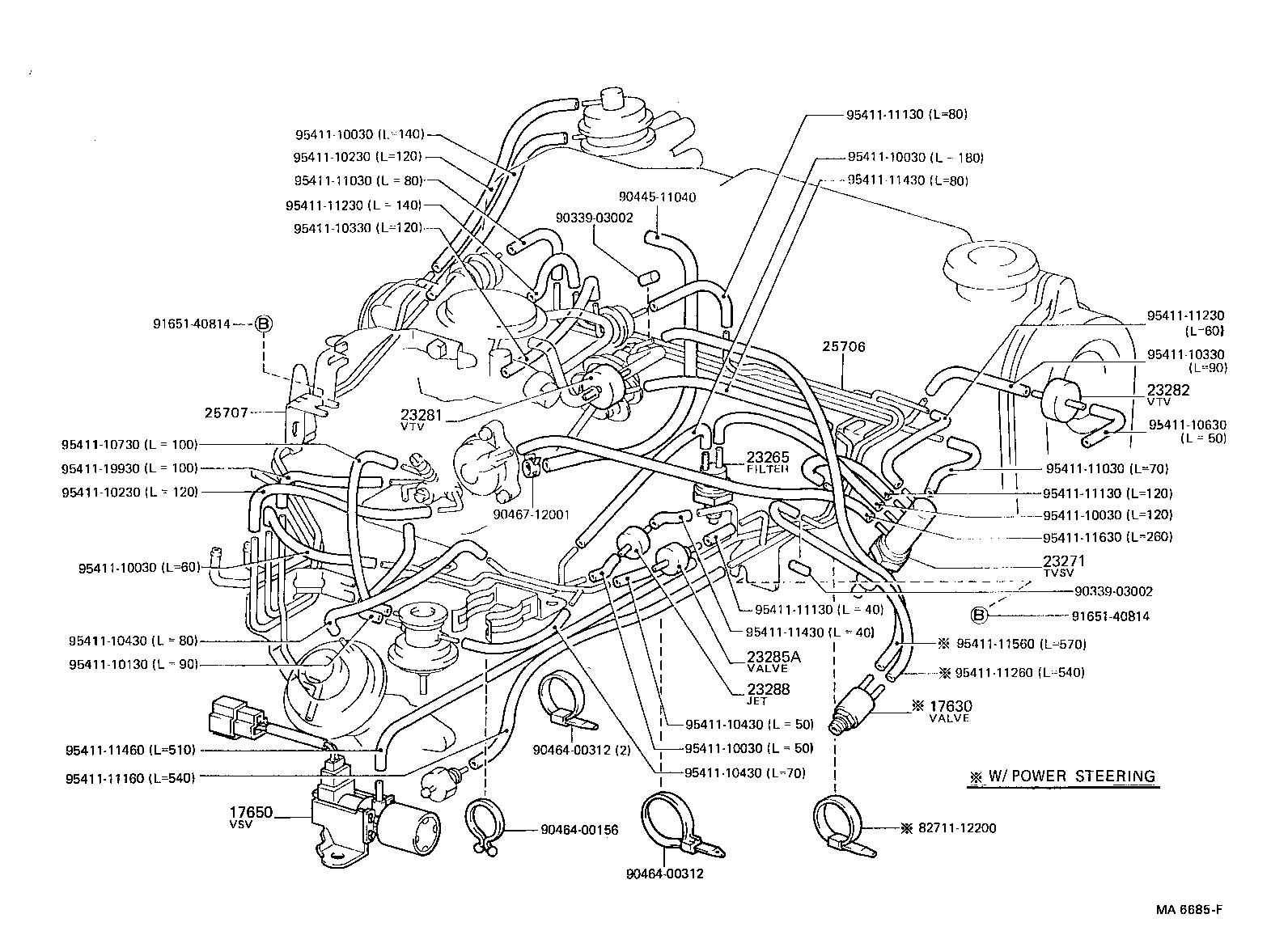

Figure MA9503 MA9503 1983-05 → — Figure MA6685F MA6685F 1983-05 → 1985-05 Figure MA8219E MA8219E 1985-05 → — Figure MA6786B MA6786B 1983-05 → 1985-05 Figure MA6663B MA6663B 1983-05 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25719 Tank, Vacuum Surge
25719A Bracket, Vacuum Tank Clamp
25804 Valve Set, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
