Toyota Corolla Levin
1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan
Discontinued model
Data version 1987-11

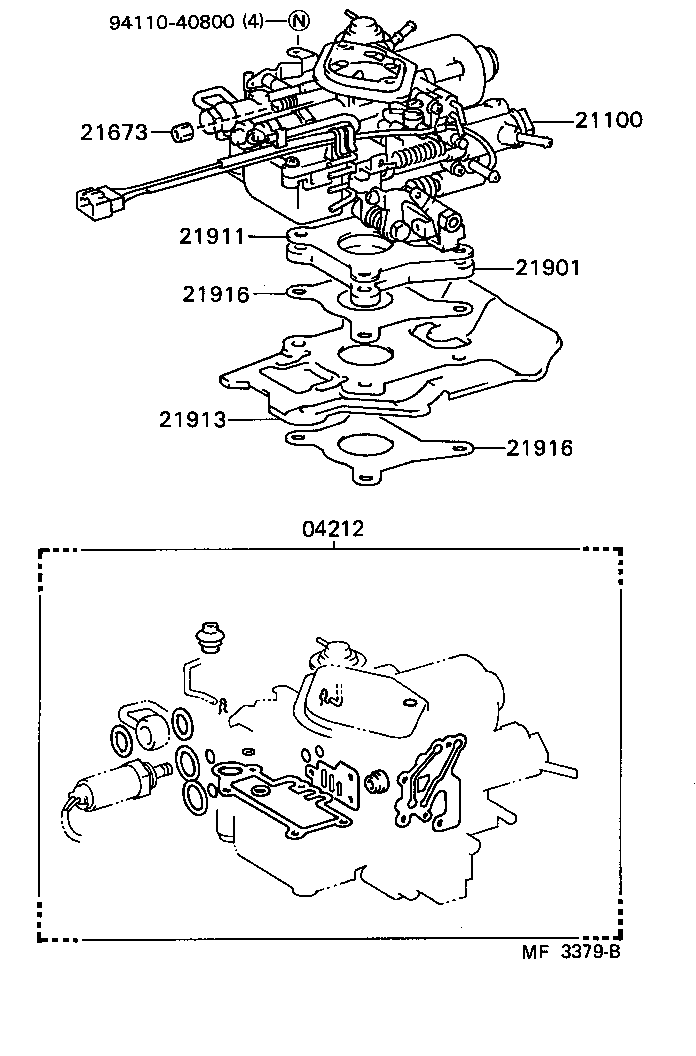

Carburetor Assembly
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04211 | Carburetor Kit |
| 04212 | Gasket Kit, Carburetor |
| 21100 | Carburetor Assy |
| 21673 | Cap, Idle Limit |
| 21901 | Insulator Sub-assy, Carburetor Heat, NO.1 |
| 21911 | Gasket, Carburetor |
| 21913 | Insulator, Carburetor Heat, NO.2 |
| 21916 | Gasket, Carburetor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
