Toyota Corolla Levin
1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan
Discontinued model
Data version 1987-11

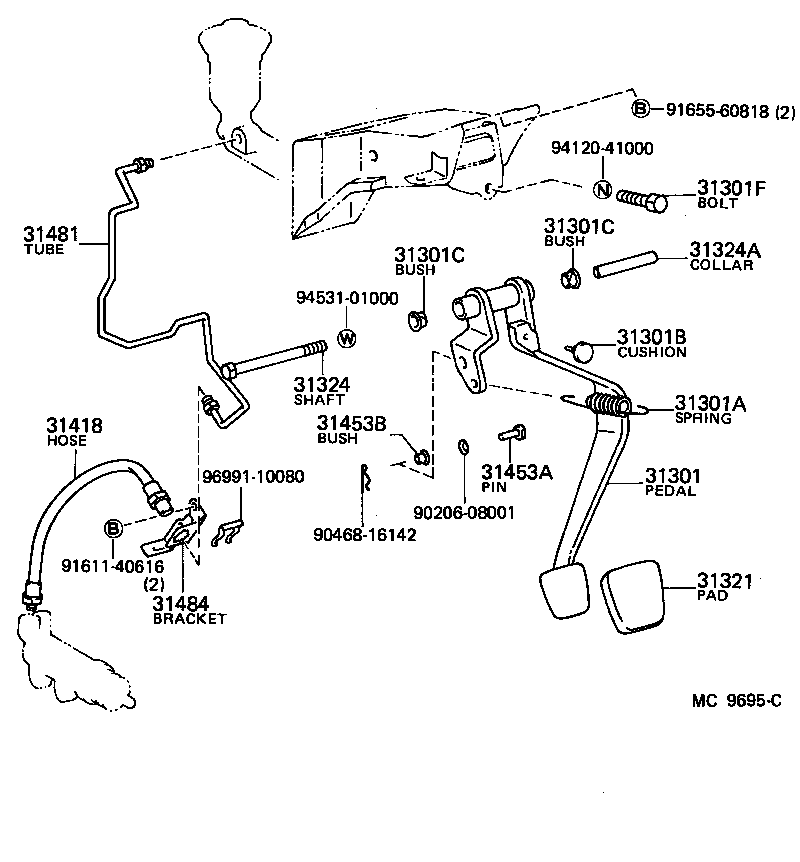

Clutch Pedal & Flexible Hose
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31340 | Cable Assy, Clutch Release |
| 31340A | Ring, E(FOR CLUTCH RELEASE CABLE) |
| 31340B | Clamp(FOR CLUTCH RELEASE CABLE) |
| 31342 | Holder, Clutch Cable, Inner |
| 31349 | Insulator, Clutch Cable Heat |
| 31392 | Clevis, Clutch Cable |
| 31418 | Hose, Clutch |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
