Toyota Corolla Levin
1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan
Discontinued model
Data version 1987-11

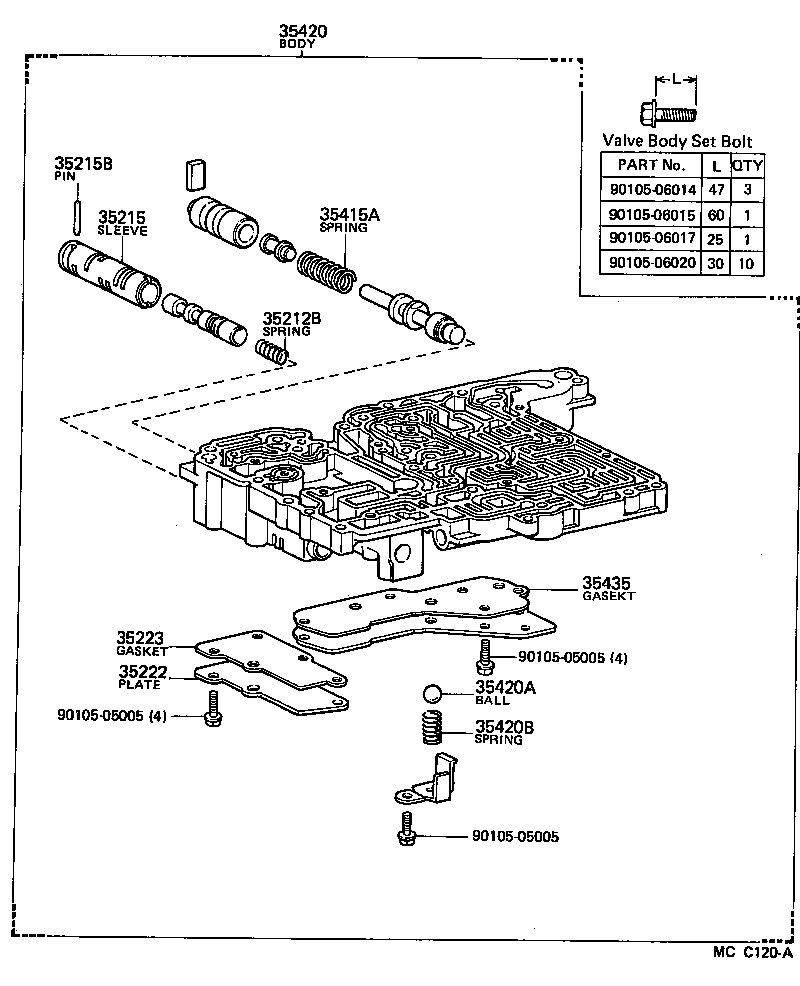

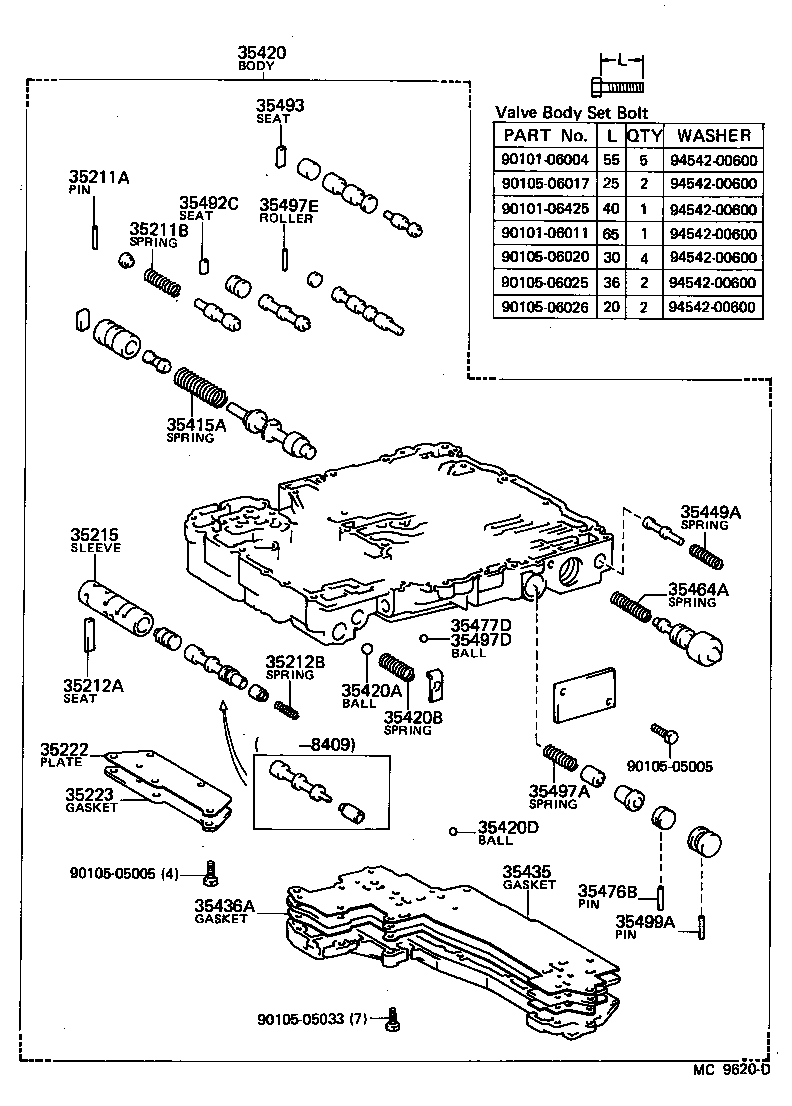

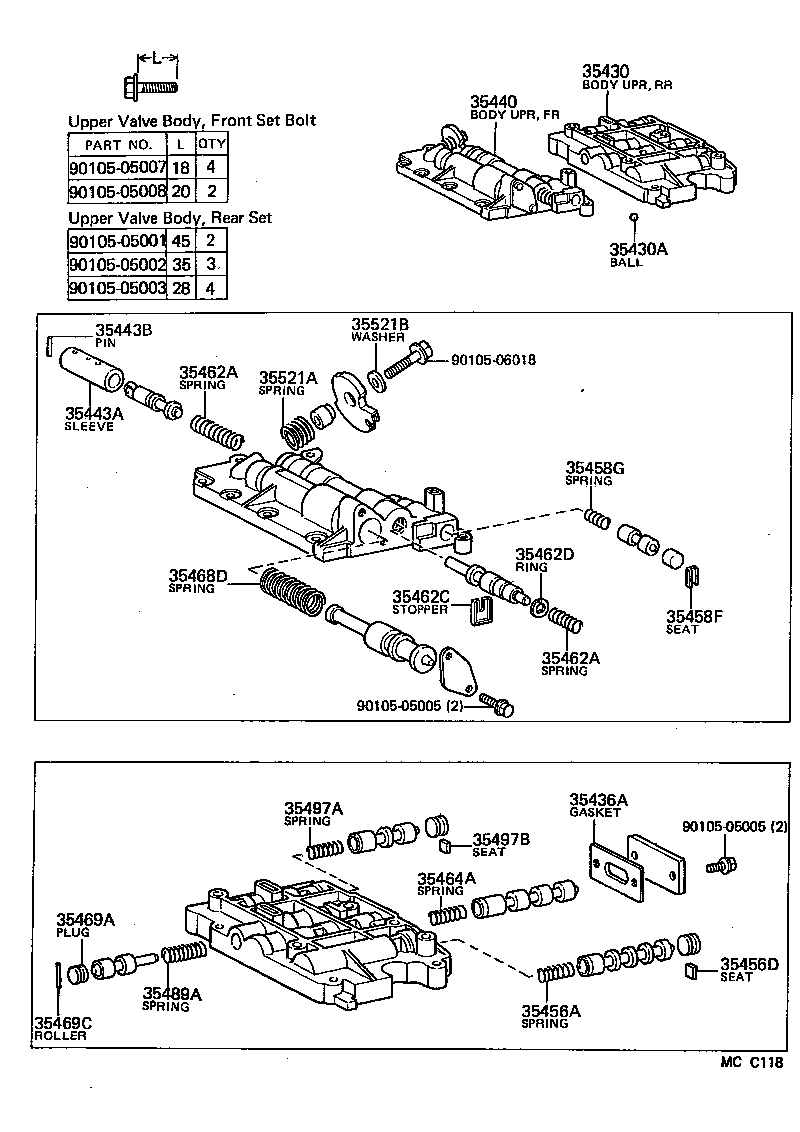

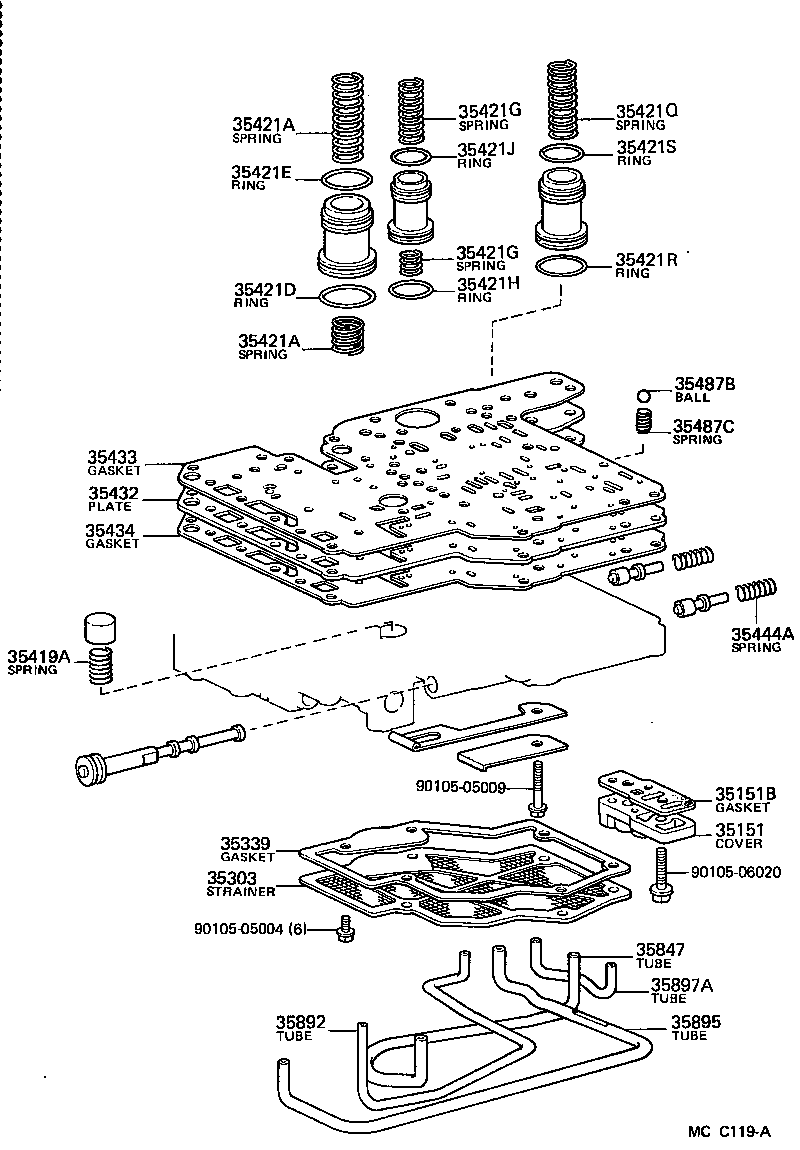

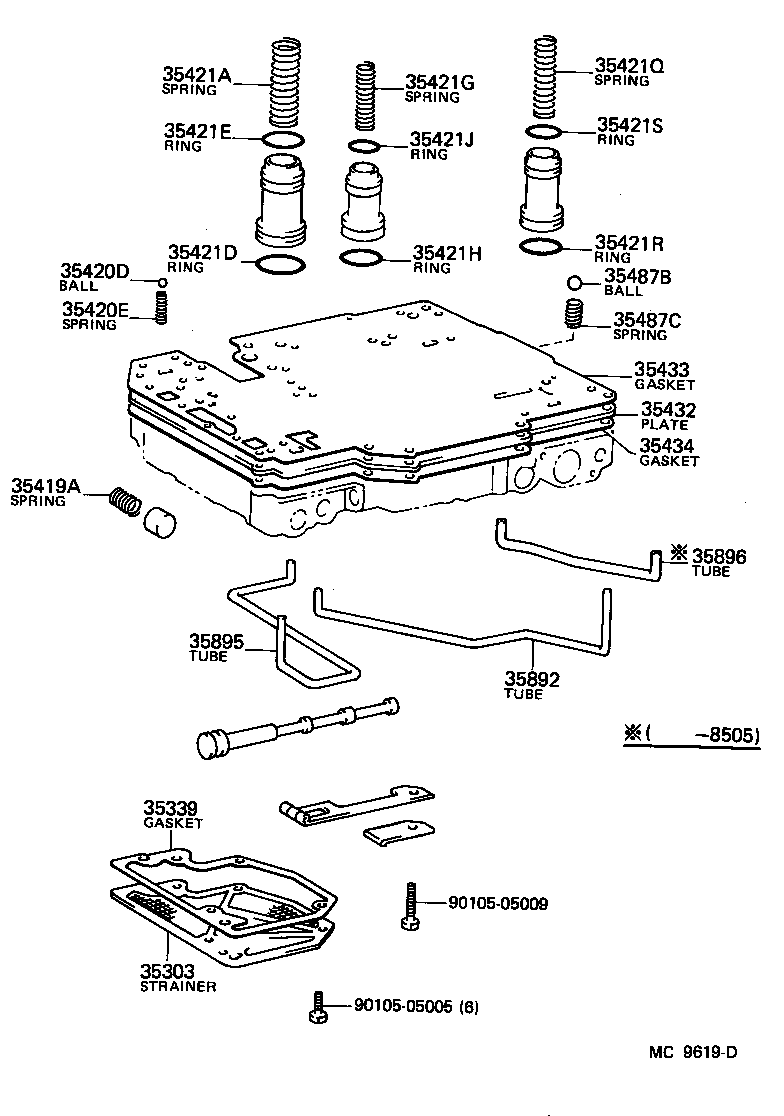

Valve Body & Oil Strainer (ATM)
73 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 35151 | Cover, Transmission Case, Lower |
| 35151B | Gasket, Transmission Case Lower Cover |
| 35211A | Pin, Straight (FOR LOCK UP SIGNAL VALVE) |
| 35211B | Spring, Compression (FOR LOCK UP SIGNAL VALVE) |
| 35212A | Seat, Plug (FOR LOCK UP RELAY VALVE) |
| 35212B | Spring, Compression (FOR LOCK UP RELAY VALVE) |
| 35215 | Sleeve, Lock UP Relay Valve |
| 35215B | Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE) |
| 35222 | Plate, Lock UP Relay Valve Body |
| 35223 | Gasket, Lock UP Relay Valve Body |
| 35303 | Strainer Sub-assy, Oil |
| 35339 | Gasket, Oil Strainer |
| 35415A | Spring, Compression (FOR PRESSURE REGULATOR VALVE) |
| 35419A | Spring, Compression (FOR CHECK VALVE) |
| 35420 | Body Assy, Lower Valve |
| 35420A | Ball (FOR PRESSURE RELIEF) |
| 35420B | Spring (FOR PRESSURE RELIEF) |
| 35420D | Ball (FOR LOWER VALVE BODY) |
| 35420E | Spring (FOR LOWER VALVE BODY) |
| 35421A | Spring, Compression (FOR ACCUMULATOR PISTON NO.1) |
| 35421D | Ring (FOR ACCUMULATOR PISTON NO.1) |
| 35421E | Ring (FOR ACCUMULATOR PISTON NO.1) |
| 35421G | Spring, Compression (FOR ACCUMULATOR PISTON NO.2) |
| 35421H | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35421J | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35421Q | Spring, Compression (FOR ACCUMULATOR PISTON NO.3) |
| 35421R | Ring (FOR ACCUMULATOR PISTON NO.3) |
| 35421S | Ring (FOR ACCUMULATOR PISTON NO.3) |
| 35430 | Body Assy, Rear Upper Valve |
| 35430A | Ball (FOR REAR UPPER VALVE BODY) |
| 35432 | Plate, Valve Body, NO.1 |
| 35433 | Gasket, Valve Body, NO.1 |
| 35434 | Gasket, Valve Body, NO.2 |
| 35435 | Gasket, Valve Body Plate, NO.3 |
| 35436A | Gasket, Valve Body Plate, NO.4 |
| 35440 | Body Assy, Front Upper Valve |
| 35443A | Sleeve, Down Shift Plug |
| 35443B | Pin (FOR DOWN SHIFT PLUG SLEEVE) |
| 35444A | Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE) |
| 35445A | Spring, Compression (FOR LOW MODULATOR VALVE) |
| 35446A | Spring, Compression (FOR GOVERNOR MODULATOR VALVE) |
| 35449A | Spring, Compression (FOR SEQUENCE VALVE) |
| 35456A | Spring, Compression (FOR 2-3 SHIFT VALVE) |
| 35456D | Seat (FOR 2-3 SHIFT VALVE) |
| 35457B | Spring, Compression (FOR DETENT REGULATOR VALVE) |
| 35458F | Seat (FOR CUT BACK VALVE) |
| 35458G | Spring, Compression (FOR CUT BACK VALVE) |
| 35462A | Spring, Compression (FOR THROTTLE VALVE) |
| 35462C | Stopper, Valve Vibrating |
| 35462D | Ring, E (FOR THROTTLE VALVE) |
| 35464A | Spring, Compression (FOR 1-2 SHIFT VALVE) |
| 35468D | Spring, Compression (FOR SECONDARY REGULATOR VALVE) |
| 35469A | Plug, 3-2 Kick Down Orifice Control Valve |
| 35469C | Roller, Shift Valve Plug |
| 35476B | Pin, Locating (FOR 3RD COAST SHIFT) |
| 35477D | Ball, Check (FOR OVERDRIVE CLUTCH EXHAUST VALVE) |
| 35487B | Ball, Check, NO.4 |
| 35487C | Spring, Compression (FOR CHECK BALL) |
| 35489A | Spring (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) |
| 35492C | Seat, Valve (FOR MANUAL DOWN TIMING VALVE) |
| 35493 | Seat, Shift Valve Spring |
| 35497A | Spring, Compression (FOR 3-4 SHIFT VALVE) |
| 35497B | Seat, Shift Valve Plug (FOR 3-4 SHIFT VALVE) |
| 35497D | Ball, Check (FOR 3-4 SHIFT VALVE) |
| 35497E | Roller, Needle (FOR 3-4 SHIFT VALVE) |
| 35499A | Pin, Straight (FOR 3-4 SHIFT VALVE) |
| 35521A | Spring (FOR THROTTLE VALVE CAM RETURN) |
| 35521B | Washer (FOR THROTTLE VALVE CAM SET) |
| 35847 | Tube, Transmission Lube Apply |
| 35892 | Tube, Overdrive Brake |
| 35895 | Tube, Front Clutch Apply |
| 35896 | Tube, Overdrive Switch Apply |
| 35897A | Tube, 1ST & Reverse Brake, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
