Toyota Corolla Levin

1983-05 → 1987-04 · chassis AE8# · catalogue 161150 · Japan

Discontinued model Data version 1987-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

8 part groups · 2 illustrations

Illustrations

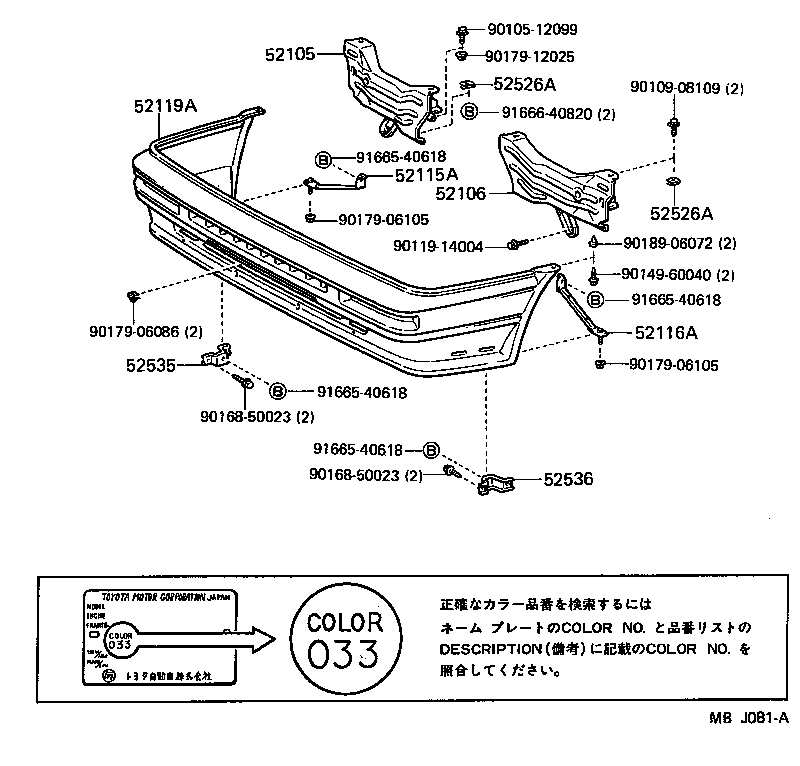

Figure MBF011D MBF011D 1983-05 → 1985-05 Figure MBJ081A MBJ081A 1985-05 → —

Part groups

PNCDescription
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52526A Retainer, Front Bumper, Lower NO.1
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
